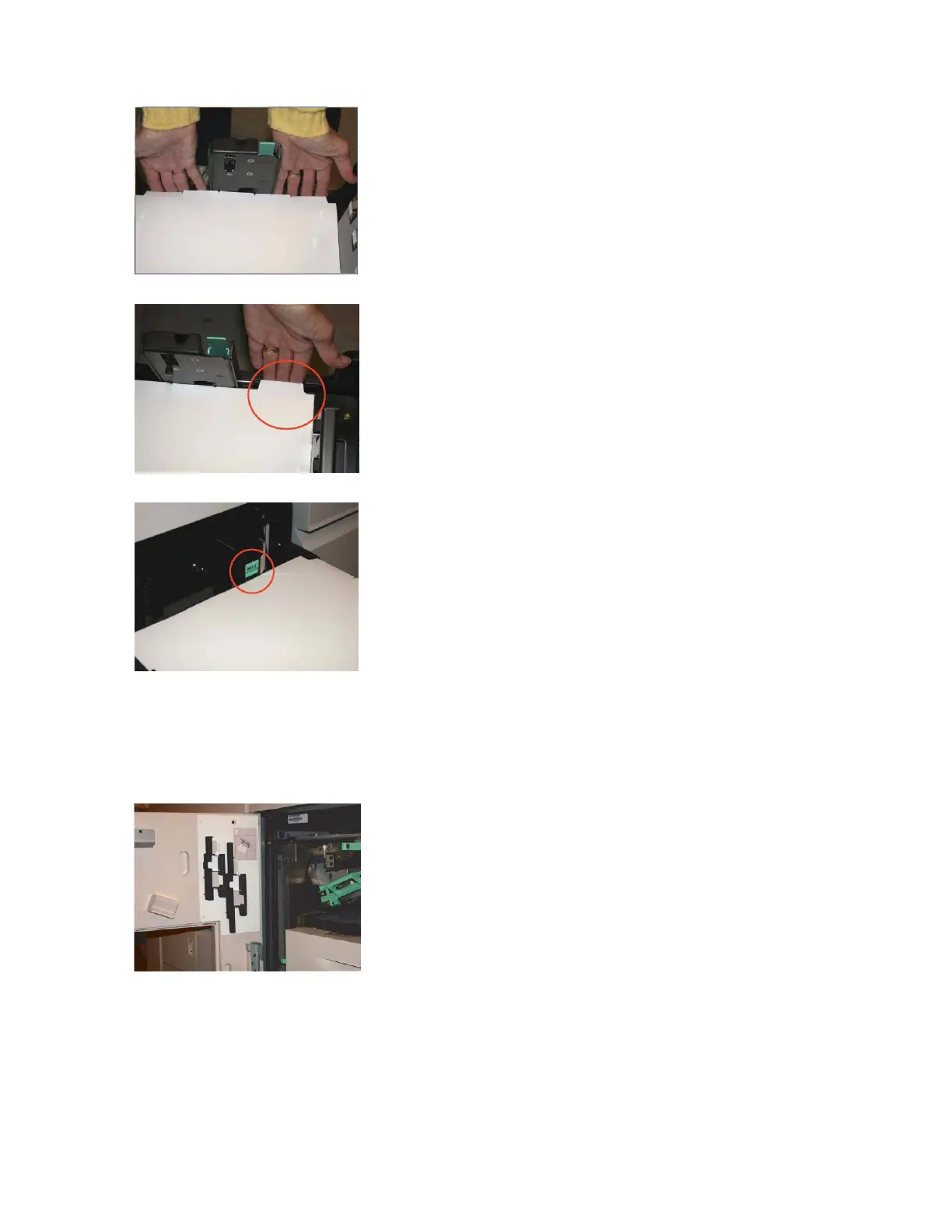

4. Adjust the paper tray guides. Ensure that the entire stack of tabs is positioned correctly in the tray.
5. Adjust any tabs that are misaligned.
6. Ensure that standard, uncoated tab stock is loaded a minimum inch (12.7 mm) below the MAX line.
Approximately 100 laminated or coated tabs may be loaded at one time; this amount is significantly
less than standard, non-coated tabs. If a misfeed occurs while using laminated or coated tabs, remove
some of the tabs from the tray.
7. Open the Feed Module Front Door. Remove the appropriate Tab Guide (A4/11 or A5/5.5) from the
Feed Module bracket or the molded pocket on the front door.
Xerox
®
Nuvera
®
12-8
User Guide and Training Aid (UGTA)
Setting Up Complex Jobs
