Xerox Nuvera - Removing the Feed Module Tab Guides

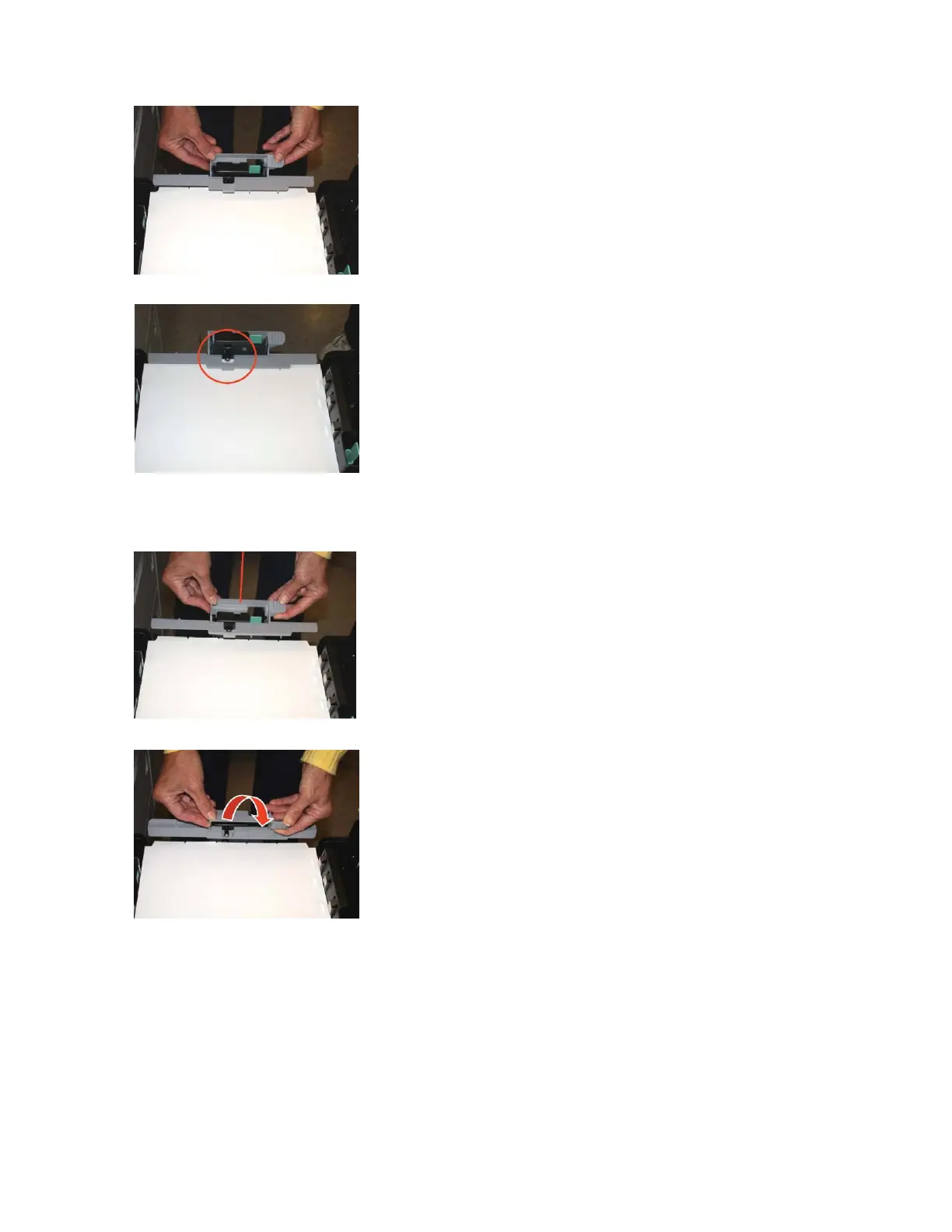

8. Install the appropriate Tab Guide (A4/11 or A5/5.5). Align the Tab Guide with the Paper Tray Guide.
9. Ensure that the Tab Guide is positioned underneath the actuator arm of the Paper Tray Guide.
Removing the Feed Module Tab Guides
1. Lift the Tab Guide until it touches the bottom side of the actuator arm.
2. Rotate the Tab Guide toward the tab stock to disengage the guide from the actuator arm.
12-9Xerox
®
Nuvera
®
User Guide and Training Aid (UGTA)
Setting Up Complex Jobs
