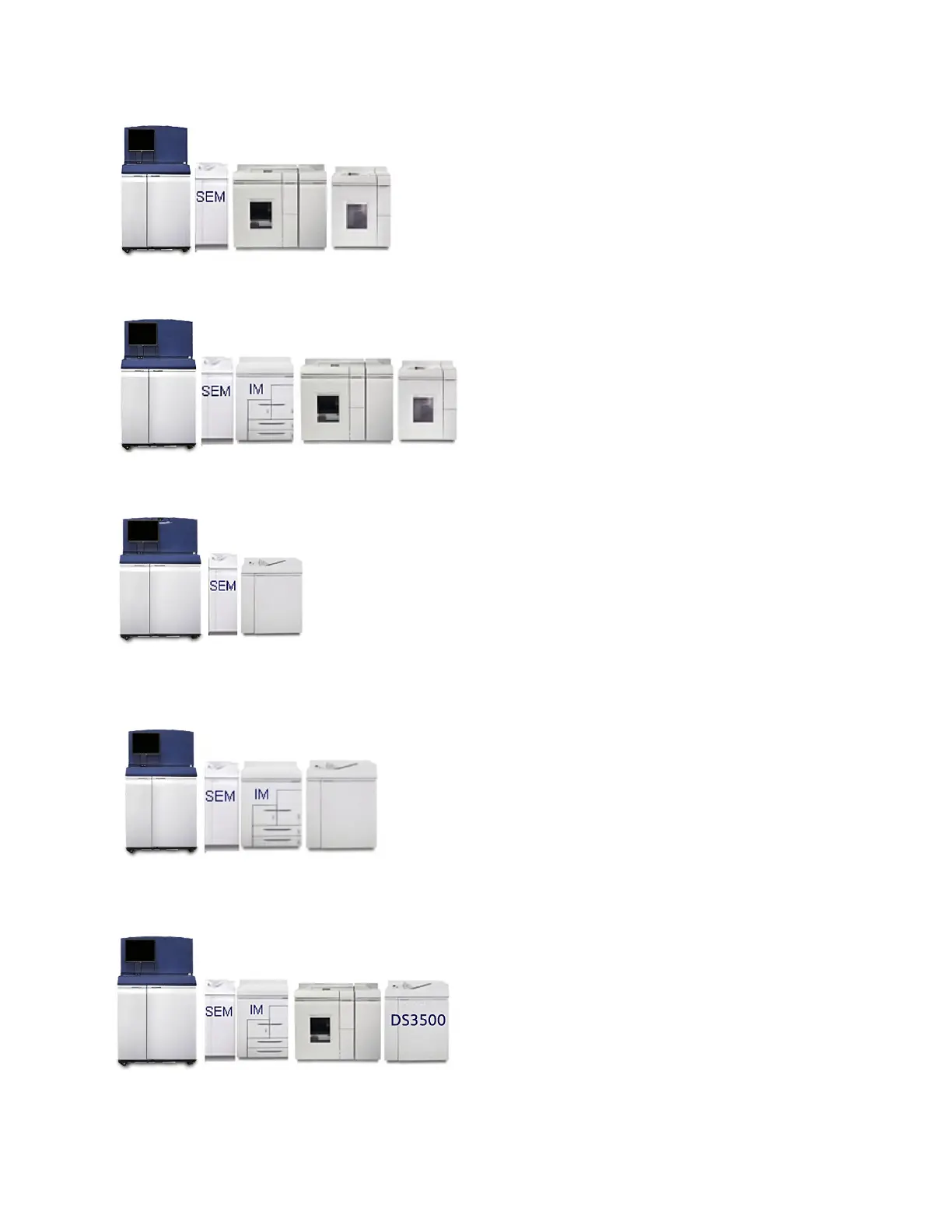

Figure 30: Print Engine / Sheet Enhancement Module / BFM Plus/ BFM

Figure 31: Print Engine / Sheet Enhancement Module / Insertion Module / BFM Plus/ BFM

Figure 32: Print Engine / Sheet Enhancement Module / XPS -->connects to DFA compliant 3rd party Finisher

Figure 33: Print Engine / Sheet Enhancement Module / Insertion Module/ XPS -->connects to DFA compliant 3rd

party Finisher

Figure 34: Print Engine / Sheet Enhancement Module / Insertion Module/ BFM Plus/ DS3500 or XPS -->connects

to DFA compliant 3rd party Finisher

21-21Xerox

Nuvera

User Guide and Training Aid (UGTA)

Machine Specifications

Table of Contents3
