Hardware Structure and Descriptions
The printer is basically controlled by the main PBA. The Phaser 3124/B main PBA uses a
Jupiter4E processor while the Phaser 3125/B and Phaser 3125/N uses a SPGP V3 processor.
The processor provides integrated printing functions such as the printer video controller, laser
scan unit controller, PWM controller and bi-polar stepper motor controller and has USB and IEEE
1284 parallel interface capacity.

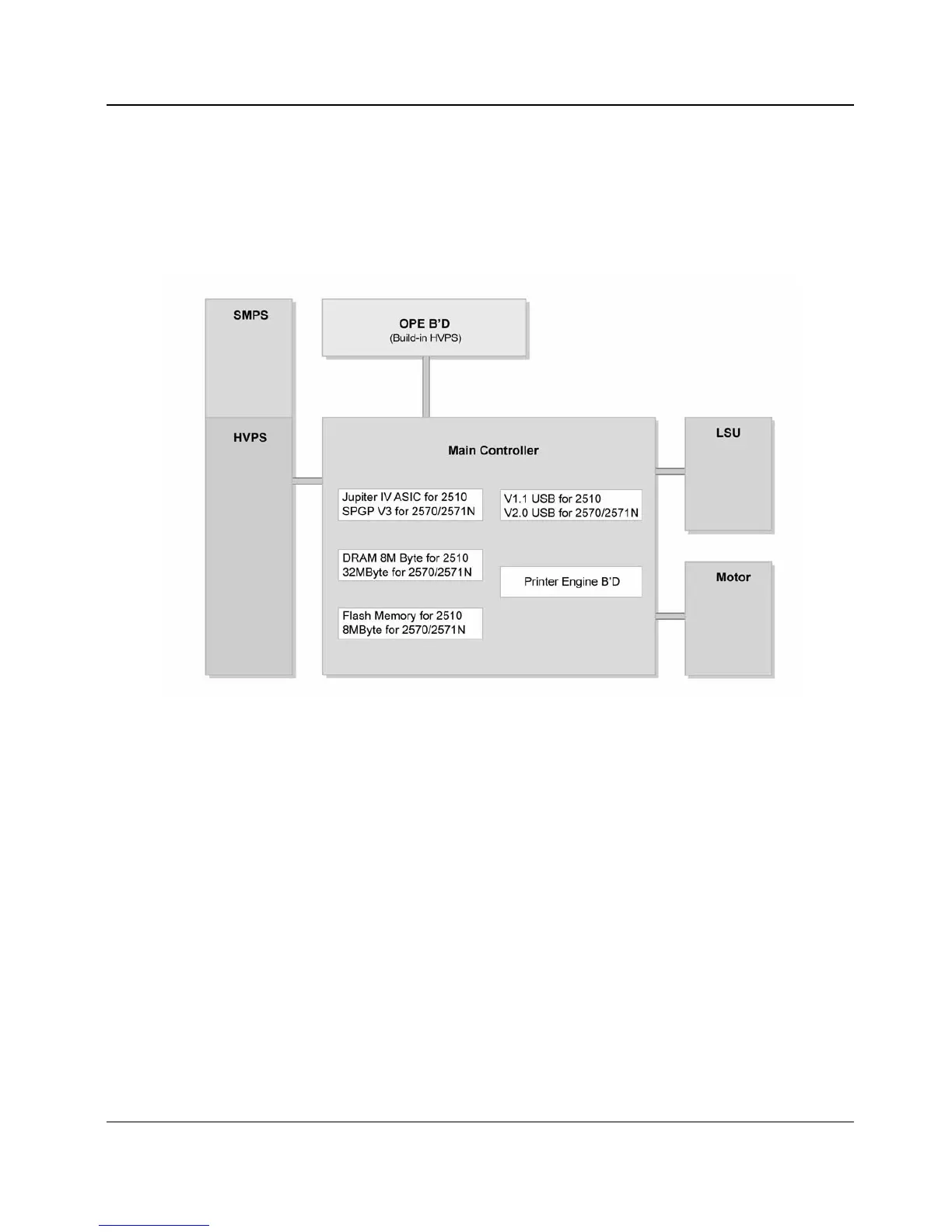

Figure 4 :Hardware Structure
Flash Memory
- Capacity
Phaser 3124/B - 0.5MB ASIC built flash memory
Phaser 3125/B and Phaser 3125/N : 8MB
- Access Time : 70 nsec
DRAM
- Phaser 3124/B : 8MB
- Phaser 3125/B and Phaser 3125/N : 32MB
- Access Time : 60 nsec

Xerox PHASER 3125 Specifications

General

Color	No
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	32 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Power requirements	220 – 240 V, 50/60 Hz
Power consumption (standby)	70 W
Power consumption (printing)	400 W
Power consumption (PowerSave)	8.5 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	358 x 298 x 253 mm
