Status Indicator RAPs
2-6 09/06 PHASER 3124 / PHASER 3125
2 JAM 0 RAP
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Description
Paper is not fed from the cassette tray.
Jam 0 occurs when paper feeds into the machine.

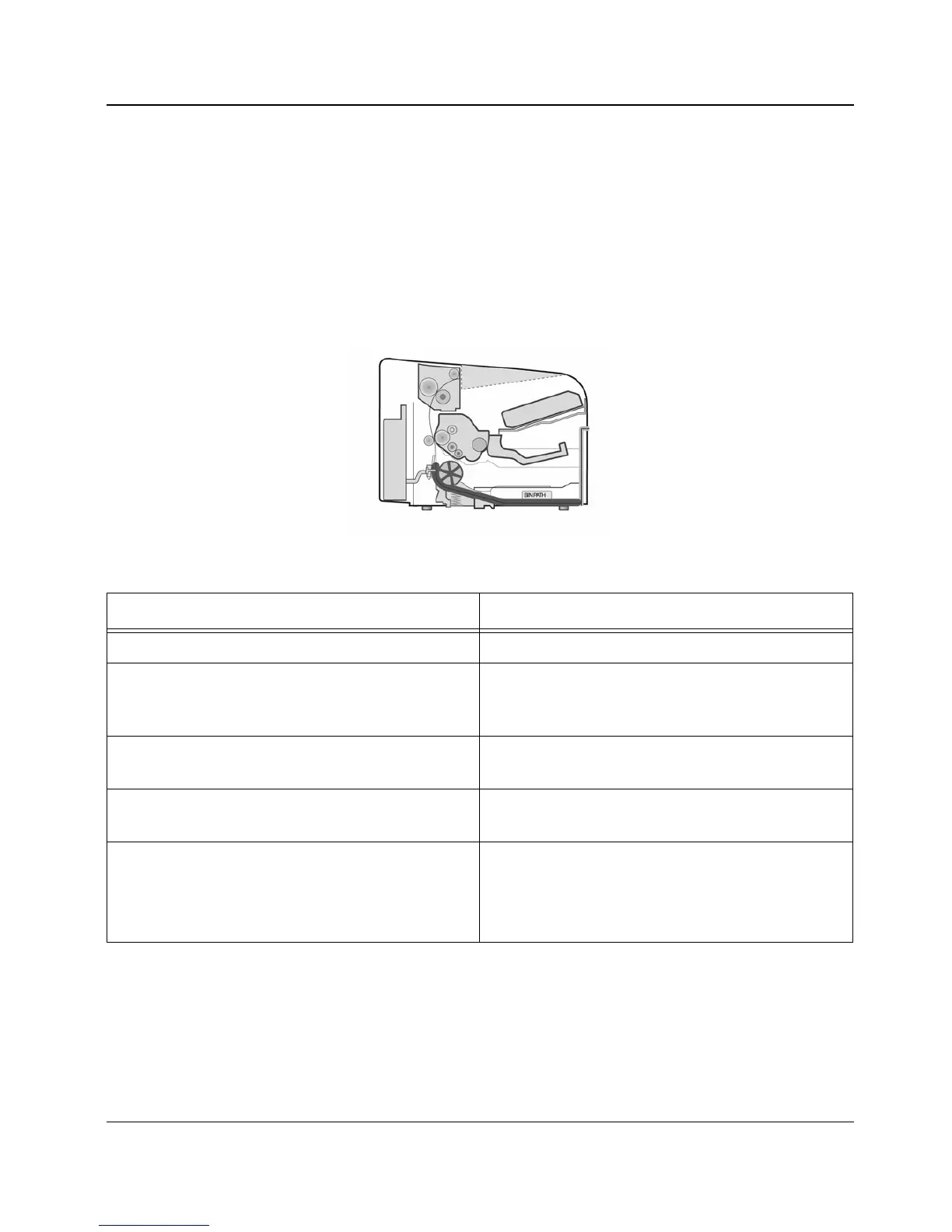

Figure 1
Check and Cause Solution
1. Clear any paper jams in the machine. 1. Refer to clearing paper jams, GP 6.
2. Check the surface of the pick-up assembly,
PL 4 for contamination or damage.
2. Clean the pick-up assembly, PL 4 using a
soft cloth dampened with IPA (Isopropyl Alco-
hol) or water.
3. The main motor, PL 5 may be defective. 3. If the main motor is not working, refer to
RAP 14.
4. The solenoid, PL 4 is faulty. 4.Check and install a new solenoid if neces-
sary, PL 4.
5. If paper feeds into the printer and Jam 0
occurs, check the feed sensor.
Note: The feed sensor is mounted on the
SMPS, PL 1.
5. Check and install new parts as necessary:
•SMPS, PL 1
• Main PBA, PL 1

Xerox PHASER 3125 Specifications

General

Color	No
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	32 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Power requirements	220 – 240 V, 50/60 Hz
Power consumption (standby)	70 W
Power consumption (printing)	400 W
Power consumption (PowerSave)	8.5 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	358 x 298 x 253 mm
