General Procedures and Information
6-32 09/06 PHASER 3124 / PHASER 3125
Around the Toner Cartridge
CAUTION:
Do not touch the fuser while it is hot.

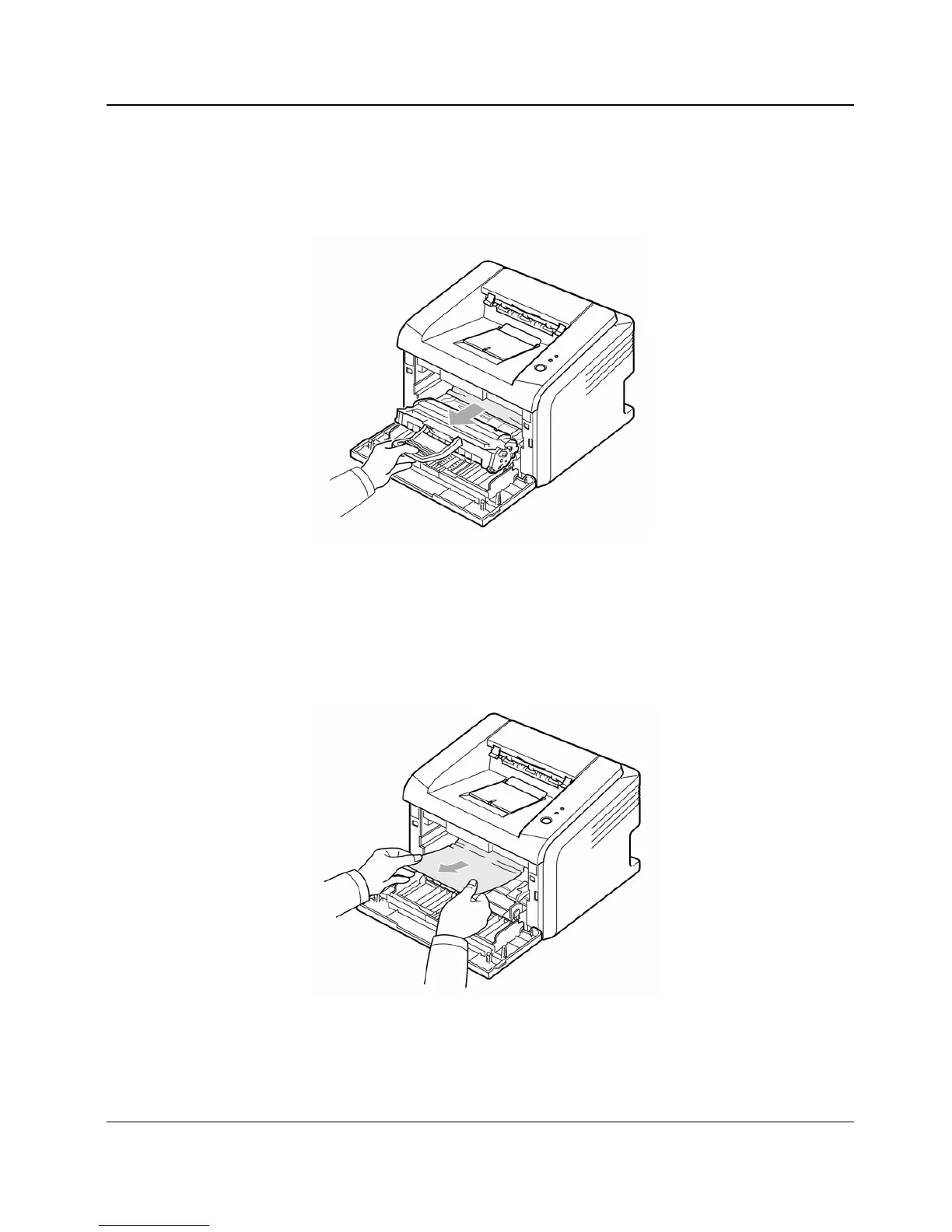

1. Open the front cover, PL 1 and pull the toner cartridge, PL 1 out, Figure 6.
Figure 6
Note: Prevent exposing the toner cartridge to light. If necessary, store the toner cartridge in a
black bag.
2. If necessary, pull the manual tray, PL 1 out.
3. Remove the jammed paper by gently pulling it out, Figure 7. If you do not see the jammed
paper or if there is any resistance removing the paper, stop pulling and go to the paper exit
area.
Figure 7

Xerox PHASER 3125 Specifications

General

Color	No
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	32 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Power requirements	220 – 240 V, 50/60 Hz
Power consumption (standby)	70 W
Power consumption (printing)	400 W
Power consumption (PowerSave)	8.5 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	358 x 298 x 253 mm
