Xerox PHASER 3125 User Manual

Repairs/Adjustments
4-10 09/06 PHASER 3124 / PHASER 3125
REP 7 Fuser Assembly
Parts list on PL 3
WARNING
Switch off the electricity to the machine. Dis-
connect the power cord from the customer
supply while performing tasks that do not
need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the engine shield (refer to REP
6).
2. Disconnect CN 1 (Phaser 3124) / CN 4
(Phaser 3125) from the main PBA and
CON 1 from the SMPS, Figure 1.

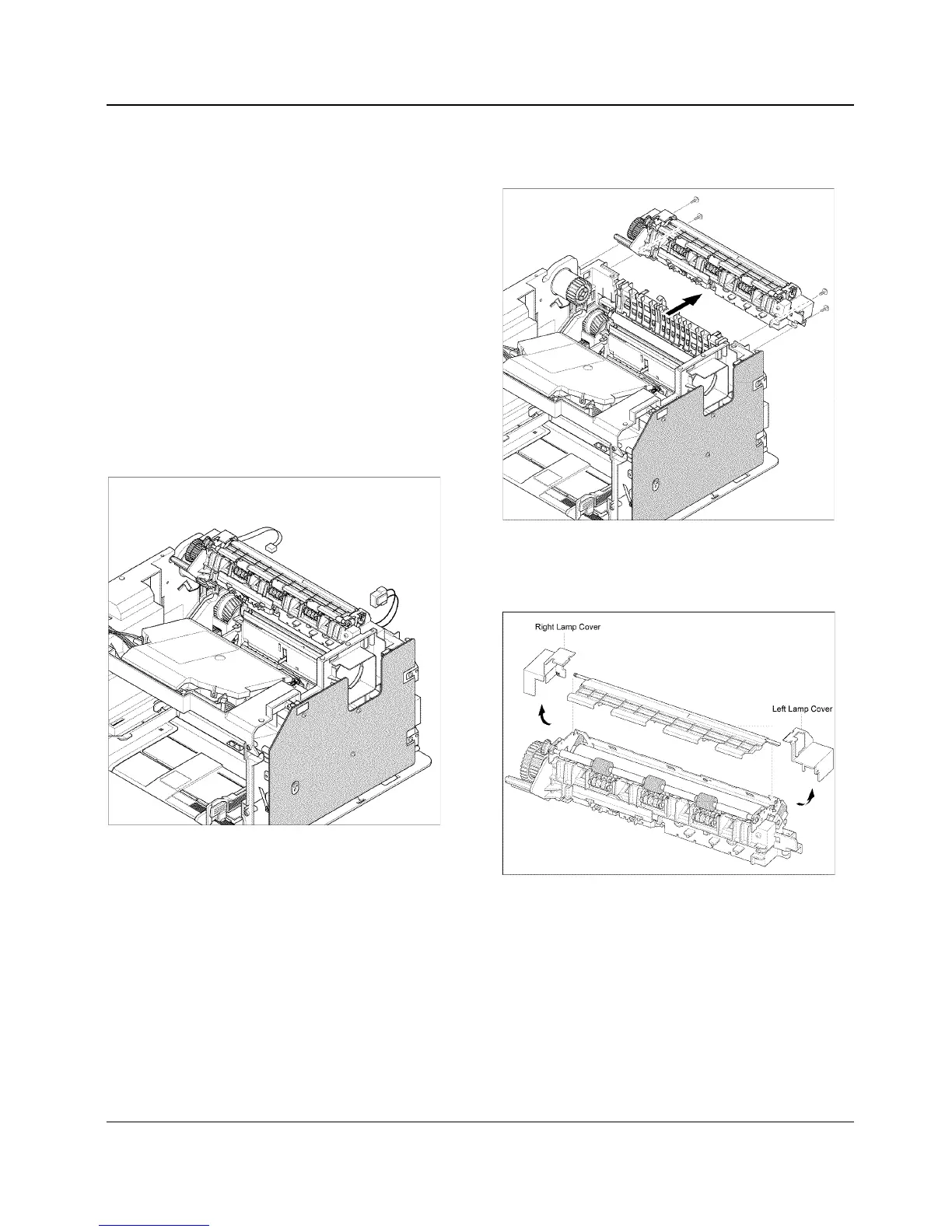

Figure 1
3. Remove 4 screws, then the fuser assem-
bly, Figure 2.
Figure 2
4. Remove the right lamp cover, left lamp
cover and the fuser dummy, Figure 3.
Figure 3

Xerox PHASER 3125 Specifications

General

Color	No
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	32 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Power requirements	220 – 240 V, 50/60 Hz
Power consumption (standby)	70 W
Power consumption (printing)	400 W
Power consumption (PowerSave)	8.5 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	358 x 298 x 253 mm
