Status Indicator RAPs
PHASER 3124 / PHASER 3125 09/06 2-7
3 JAM 1 RAP
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer supply
while performing tasks that do not need electricity. Electricity can cause death or injury. Moving
parts can cause injury.
Description
Paper is jammed in front of or inside the fuser.
Paper is jammed in the exit roller and fuser after passing through the feed sensor actuator.

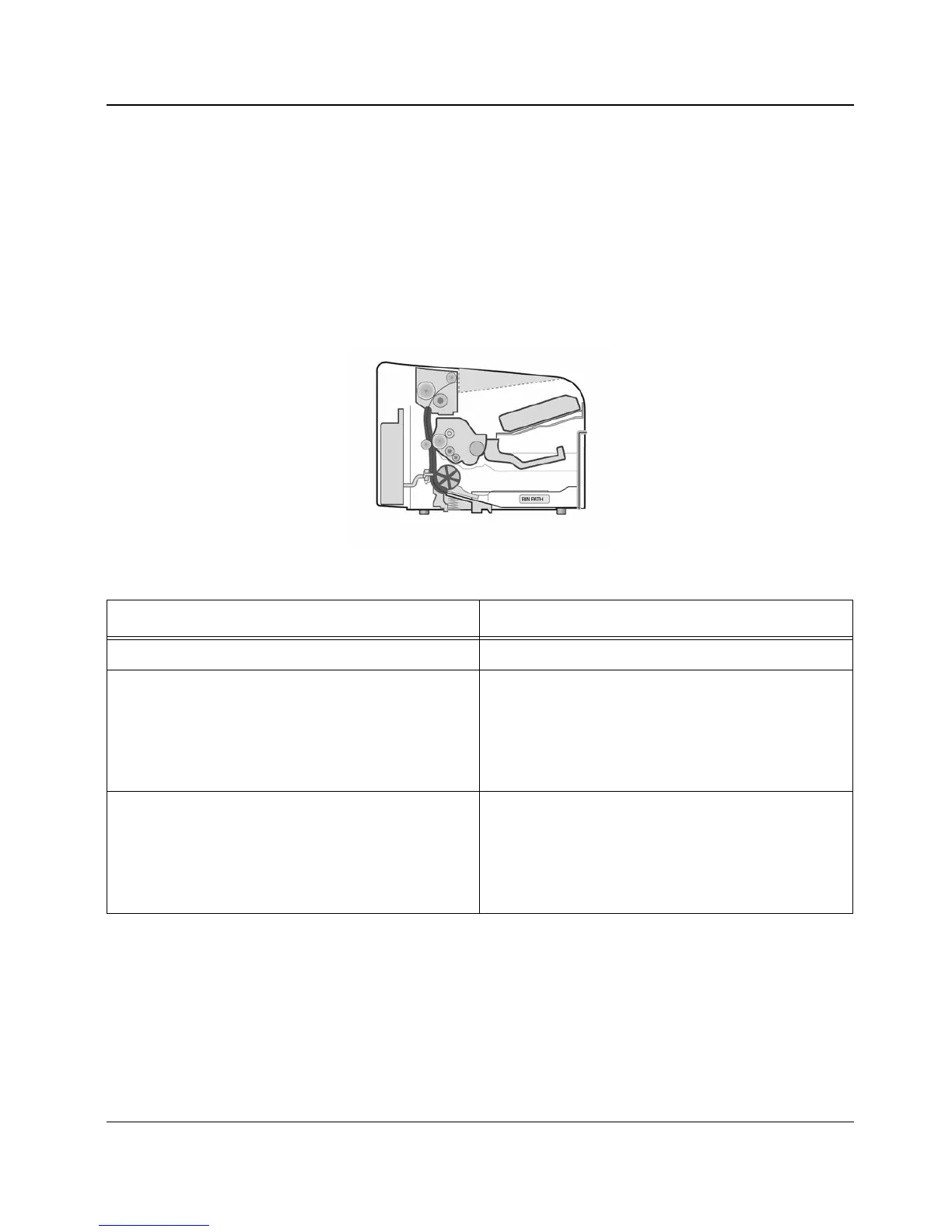

Figure 2
Check and Cause Solution
1. Clear any paper jams in the machine. 1. Refer to clearing paper jams, GP 6.
2. Paper is jammed in the exit roller and the
fuser, PL 3, after passing through the feed
sensor actuator, PL 4, the feed sensor actua-
tor may be defective.
2. Check and install new parts as necessary:
• Feed sensor actuator, PL 4
• Feed sensor
Note: The feed sensor is mounted on the
SMPS, PL 1.
3.Paper is jammed in front of, or inside the
fuser, PL 3. The feed sensor is defective.
Note: The feed sensor is mounted on the
SMPS, PL 1.
2. Check and install new parts as necessary:
• Feed sensor actuator, PL 4
• Feed sensor
Note: The feed sensor is mounted on the
SMPS, PL 1.

Xerox PHASER 3125 Specifications

General

Color	No
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	25 ppm
Internal memory	32 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	100 sheets
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Power requirements	220 – 240 V, 50/60 Hz
Power consumption (standby)	70 W
Power consumption (printing)	400 W
Power consumption (PowerSave)	8.5 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	358 x 298 x 253 mm
