Disassembly
5-8
5.7 Side Cover (Left and Right)
1. Remove the front cover, see "5.2 Front Cover" on page 5-3.
2. Remove the rear cover, see "5.4 Rear Cover" on page 5-5.
3. Remove the top cover, see "5.5 Top Cover" on page 5-6.
4. Remove the 2 screws securing the right or left cover.

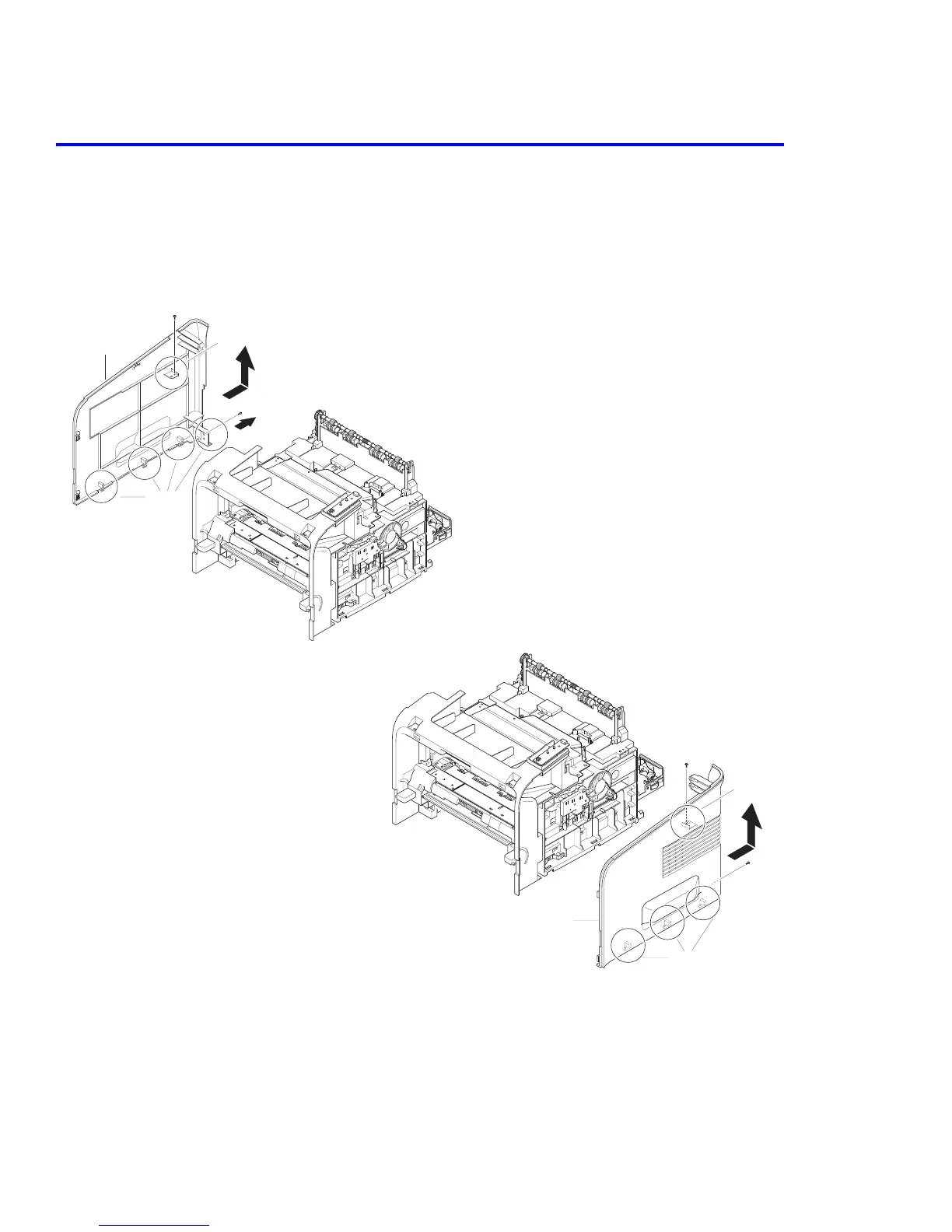

5. Slide the cover towards the rear of the printer while releasing the top latch, as shown below, to remove the right
or left cover.
Side Cover(RH)
Top Latch
Bottom Latches
Side Cover(LH)
Top Latch
Bottom
Latches
To Next Page
