Xerox Phaser 3150 Service Manual

Troubleshooting
Service Manual 7-9
7.2.3 Jam 1
7.2.4 Jam 2

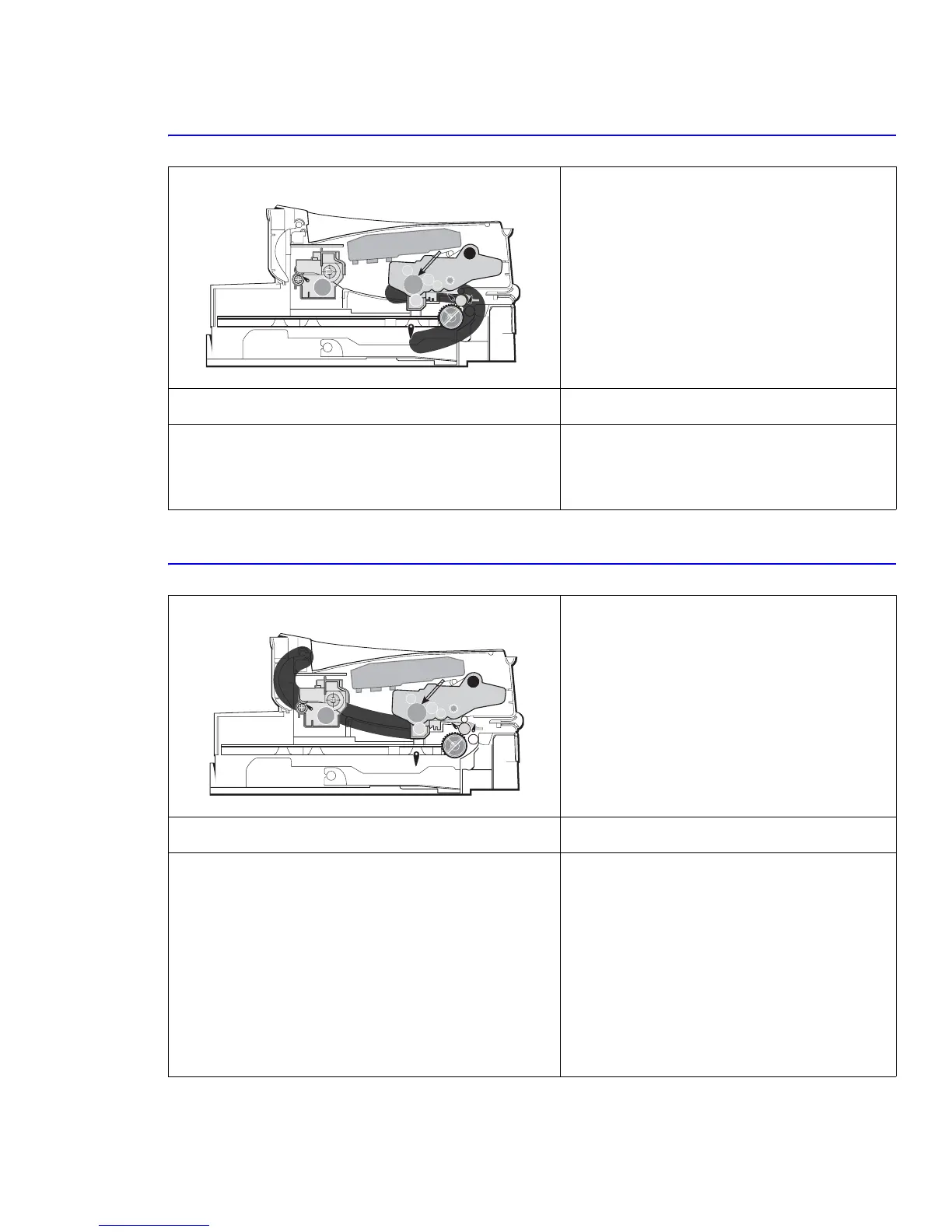

Description:
There is a paper jam in front of or inside the fuser.
There is a paper jam stuck in the discharge roller
and in the fuser, just after passing the feed actuator.
Possible Cause
Solution
1. Defective exit sensor/actuator.
2. Defective feed actuator.
a. Replace the exit sensor, SMPS, or main
board.
b. Replace the feed actuator and spring if
defective.
Description:
There is an accordian jam in front of or inside the
fuser.
There is an accordian jam stuck in the discharge
roller and in the fuser, just after passing the feed
actuator.
Possible Cause Solution
1. If the paper has exited the printer and a Jam2 occurs the
exit sensor is defective:
■ After paper passes the exit sensor, the flag should
return to its normal position. The flag may stick or
return too slowly due to contamination or foreign
objects obstructing its path.
2. If there is an accordian paper jam in the fuser:
■ The guide claw is damaged.
■ The spring on the guide is damaged.
■ The heat roller or pressure roller is contaminated with
toner.
a. Look for debris or contamination around the
exit sensor and actuator.
b. Check the exit sensor and actuator for
damage.
c. Replace if defective.
d. Replace the fuser.
PTL
P
I
C
K
/
R
PR
CR
DR
SR
TR FR
Empty Sensor
OPC
L S U
Fuser
Toner Cartridge
EXIT
Sensor
Feed
Sensor
MP Sensor
PTL
P
I
C
K
/
R
PR
CR
DR
SR
TR FR
Empty Sensor
OPC
L S U
Fuser
Toner Cartridge
EXIT
Sensor
Feed
Sensor
MP Sensor
