5.17 Pick-Up Assembly, Solenoids, and Pick Roller
1. Remove the front cover, see "5.2 Front Cover" on page 5-3.
2. Remove the rear cover, see "5.4 Rear Cover" on page 5-5.
3. Remove the middle cover, see "5.6 Middle Cover" on page 5-7.
4. Remove the top cover, see "5.5 Top Cover" on page 5-6.
5. Remove the left and right covers, see "5.7 Side Cover (Left and Right)" on page 5-8.
6. Remove the engine shield assembly, see "5.9 Engine Shield Assembly and Exit Board" on page 5-10.
7. Remove the drive assembly, see "5.14 Drive Assembly" on page 5-20.
8. Remove the feed bracket, see "5.16.2 Feed Roller" on page 5-23

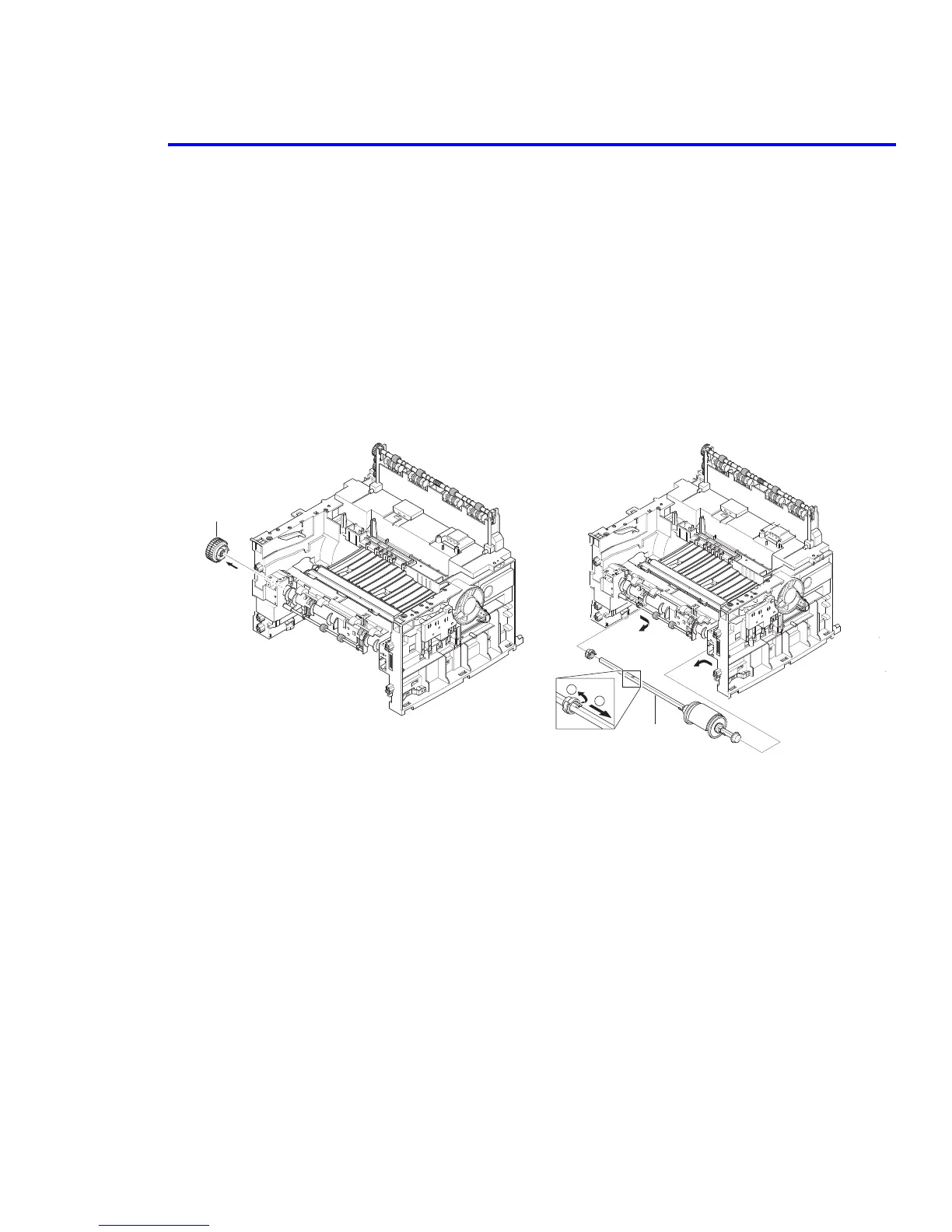

9. Remove the pick-up gear, and then the pick-up assembly as shown below.
Note
Note the orientation of the gear for reassembly.
10. Disconnect the main clutch and registration clutch harness’s from the main board.
11. Remove the 2 screws securing the solenoids (2).
12. Unroute the harness’s through the printer frame to remove the solenoids.
Pick-Up Gear Ass'y
1
2
Pick-Up Ass'y
To Next Page
