Xerox Phaser 3150 Service Manual

Alignment and Adjustments
6-8

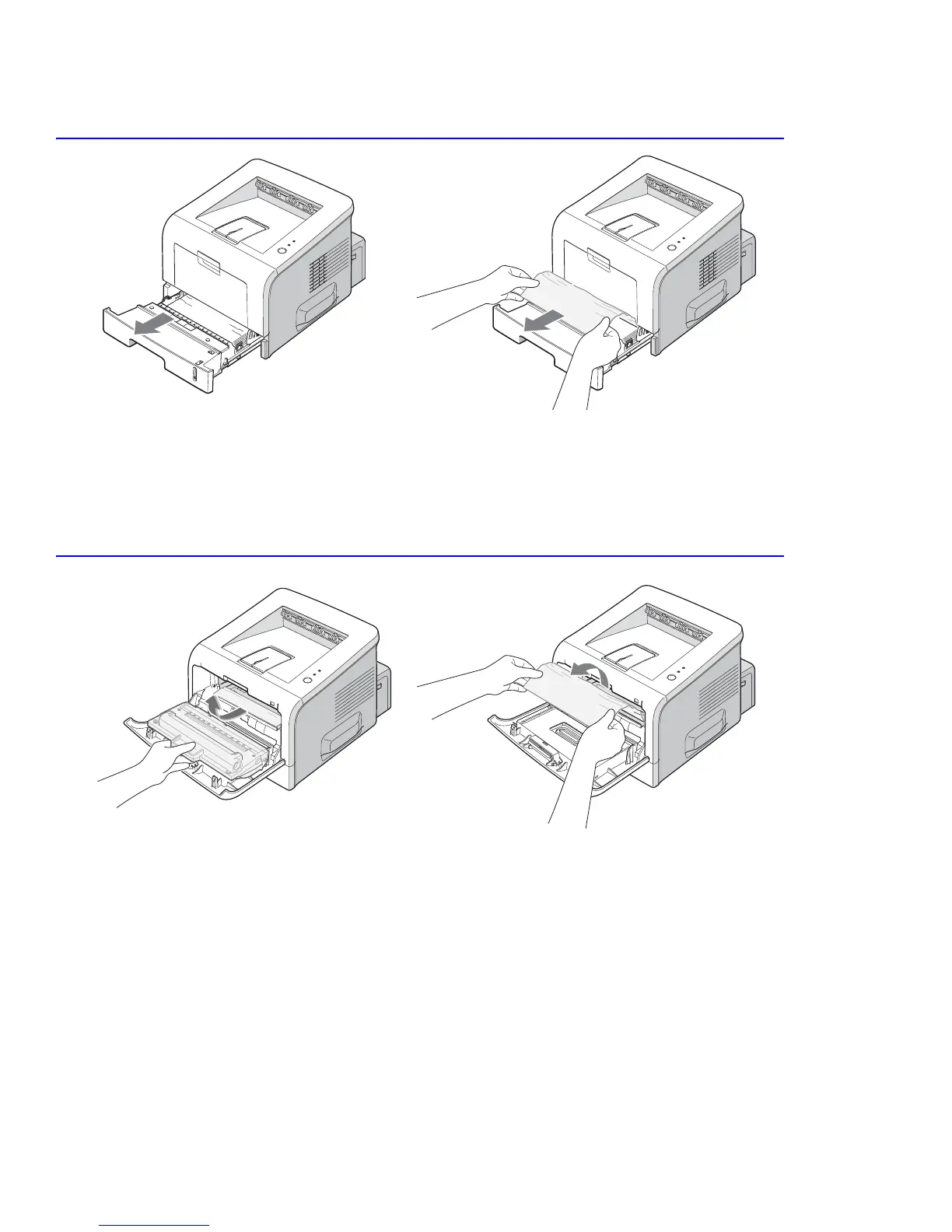

6.3.2 Jam0: Paper in the Feed Area
1. Slide out the tray to expose the jammed paper.
2. Remove any jammed paper by pulling the visible edge away from the tray.
3. Make sure that all of the paper is properly aligned in the tray.
4. Slide the tray back into the printer. Open and close the front cover. Printing can now be resumed.
6.3.3 Jam1: Paper Around the Toner Cartridge
1. Open the front cover and remove the toner cartridge.
2. Gently pull the paper toward you. Check that there is no other paper left in the printer.
3. Reinstall the toner cartridge, and then close the cover. Printing can now be resumed.
