Xerox Phaser 3150 Service Manual

Disassembly
Service Manual 5-11

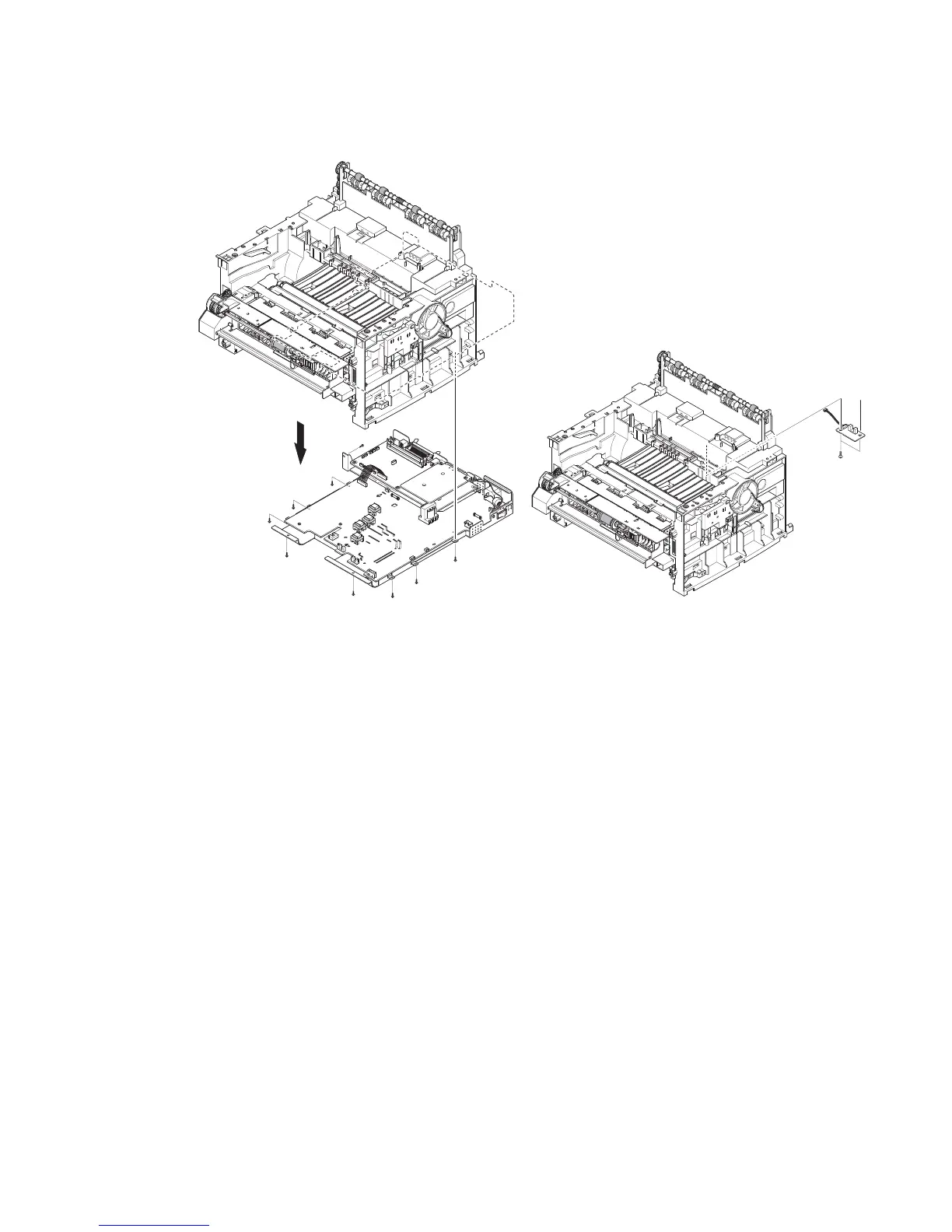

8. Turn the printer onto its top to access and remove the 12 screws on the bottom of the printer securing the engine
shield assembly.
9. Remove 2 screws securing the Exit Board to the print frame.
Caution
When reassembling the engine shield assembly, be sure the paper out sensor flag is up and out of
the way to avoid damaging the flag.
Engine Shield Ass'y
Exit Board
