Disassembly
Service Manual 5-17

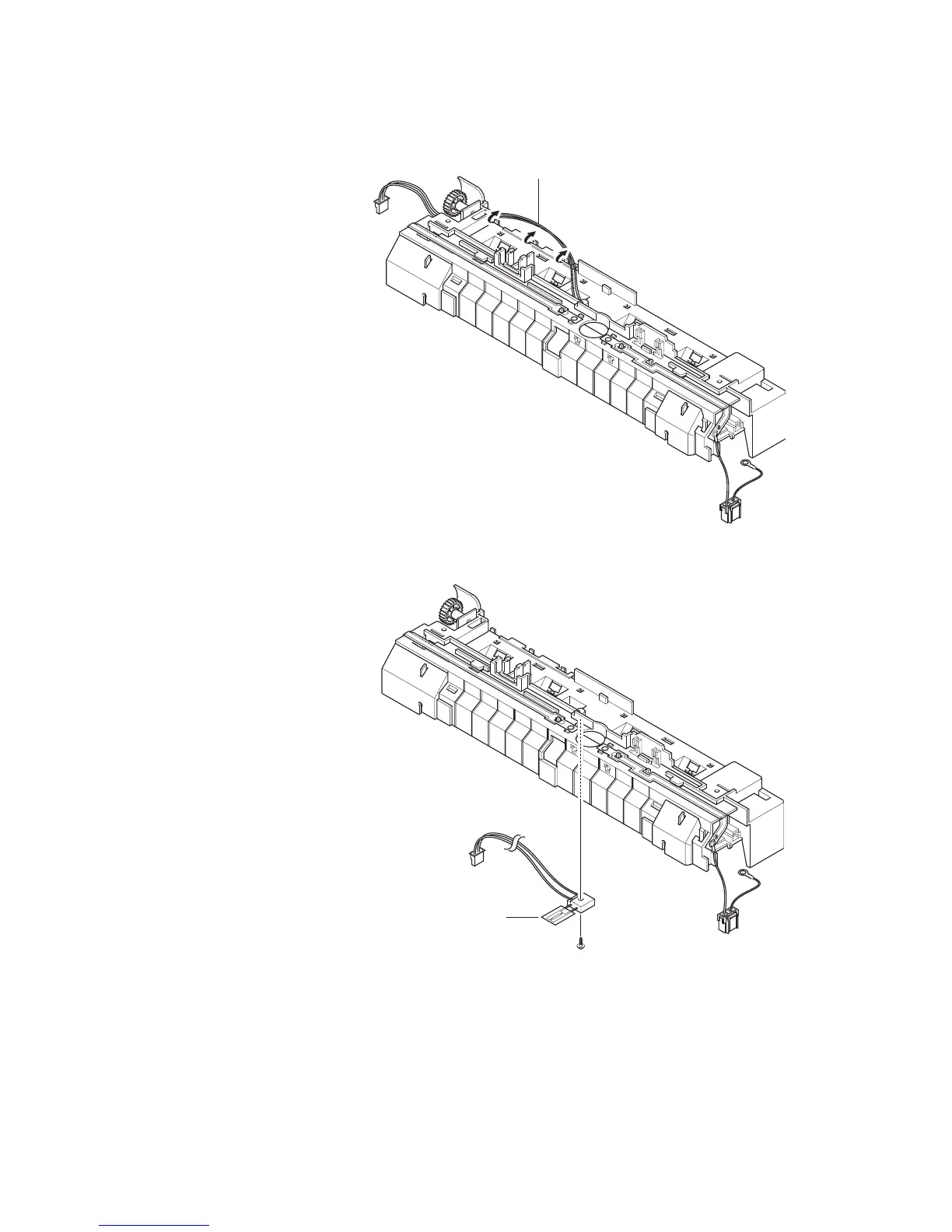

7. Free the thermister harness as shown below.
8. Remove 1 screw securing the thermister and remove from the fuser assembly.
Thermistor Harness
Thermistor
