Troubleshooting
114 Phaser 6700 Color Printer
User Guide
Paper Jams
This section includes:
• Locating Paper Jams ......................................................................................................................................................... 114
• Clearing Paper Jams ......................................................................................................................................................... 116
• Minimizing Paper Jams .................................................................................................................................................... 126
• Troubleshooting Paper Jams ......................................................................................................................................... 128
• Clearing Staple Jams ........................................................................................................................................................ 129
Locating Paper Jams

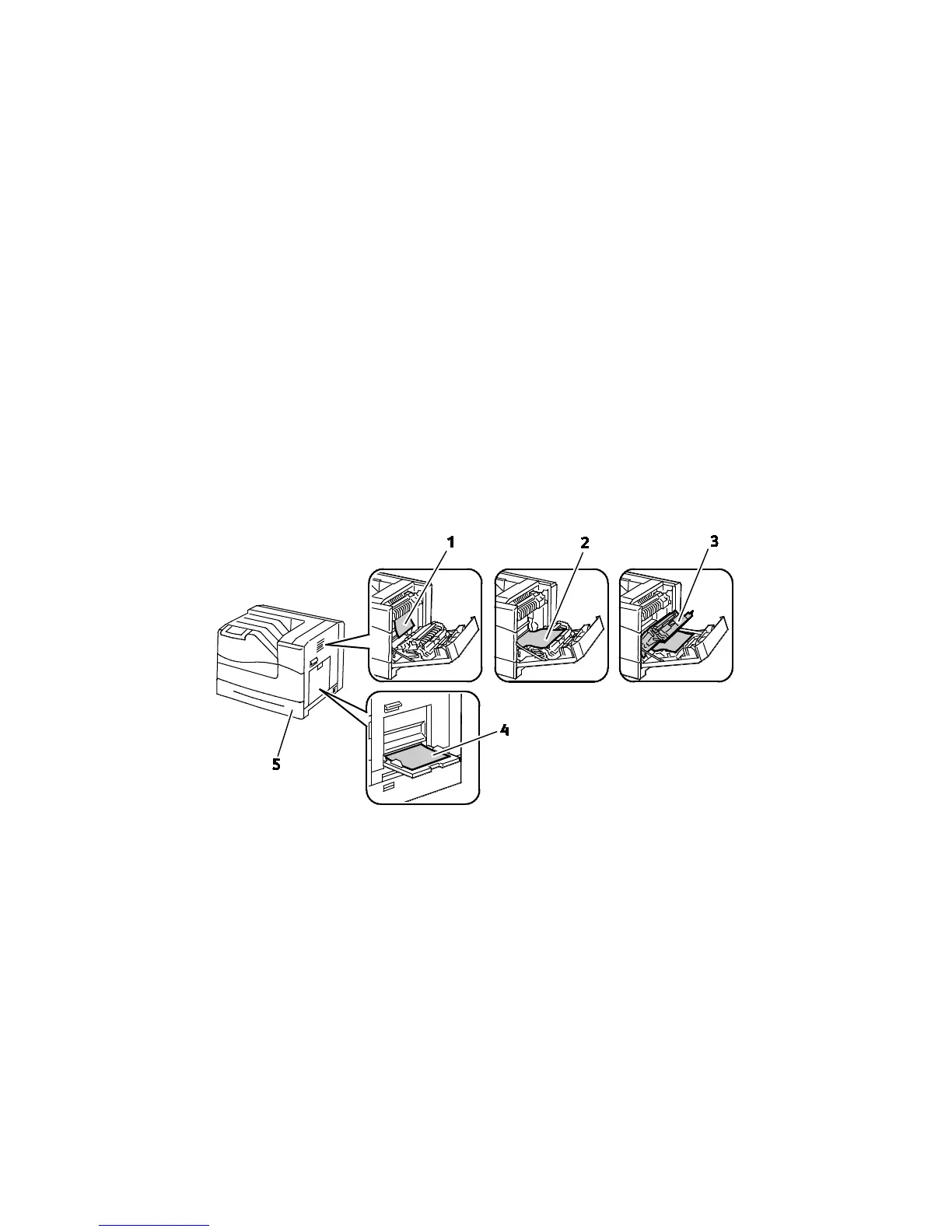

The following illustration shows where paper jams can occur along the paper path in the base
printer configuration.
1. Fuser
2. Right Side Door
3. Duplex Unit
4. Tray 1
5. Tray 2

Xerox Phaser 6700DN Specifications

General

Print technology	Laser printing
Storage temperature (T-T)	-4 - 104 °F
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	10 - 85 %
PCL fonts	94
Product color	Beige, Navy
Country of origin	China
Maximum duty cycle	120000 pages per month
Number of PostScript fonts	173
Number of print cartridges	4
Page description languages	PCL 5e, PCL 6, PostScript 3
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum resolution	2400 x 1200 DPI
Time to first page (black, normal)	7 s
Time to first page (color, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
Print speed (color, normal quality, A4/US Letter)	45 ppm
Maximum internal memory	2048 MB
Sound power level (standby)	26 dB
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Glossy paper, Heavy paper, Labels, Plain paper, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Wi-Fi	-
Network ready	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Control type	Touch
Display diagonal	4.3 \
AC input frequency	50 - 60 Hz
Power consumption (standby)	116 W
Power consumption (printing)	637 W
Sustainability certificates	ENERGY STAR
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	761.99 mm
Width	692.14 mm
Height	571.49 mm
