Xerox Phaser 6700DN User Manual

Troubleshooting
116 Phaser 6700 Color Printer
User Guide
Clearing Paper Jams
This section includes:
• Clearing Misfeeds at Tray 1 ........................................................................................................................................... 116
• Clearing Misfeed at Tray 2 ............................................................................................................................................ 118
• Clearing Jams at the Right Side Door ....................................................................................................................... 120
• Clearing Jams at the Fuser ............................................................................................................................................. 122
• Clearing Jams at the Finisher ........................................................................................................................................ 124
• Clearing Jams at the Horizontal Transport Unit ................................................................................................... 125
CAUTION: To avoid damage, always remove jammed paper carefully, without tearing it. Try to
remove the paper in the direction that it would normally feed. Any piece of paper left in the printer,
whether large or small, can obstruct the paper path and cause further jams. Do not reload paper that
has jammed.
Note: To clear jams, watch the video and follow the instructions on the control panel.
Clearing Misfeeds at Tray 1
To resolve the error displayed on the control panel you must clear all paper from the paper path.

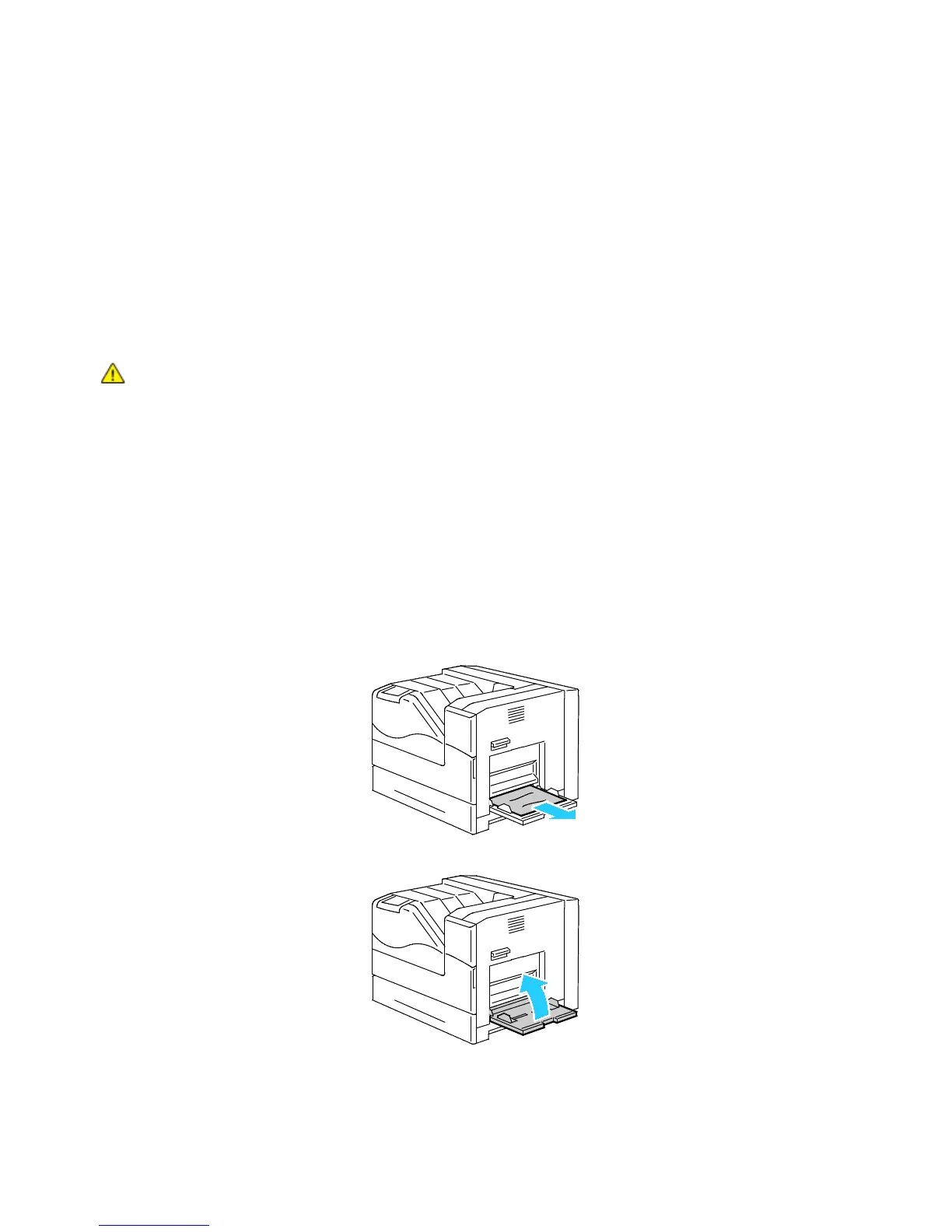

1. Remove any paper from Tray 1.
2. Close Tray 1.

Xerox Phaser 6700DN Specifications

General

Print technology	Laser printing
Storage temperature (T-T)	-4 - 104 °F
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	10 - 85 %
PCL fonts	94
Product color	Beige, Navy
Country of origin	China
Maximum duty cycle	120000 pages per month
Number of PostScript fonts	173
Number of print cartridges	4
Page description languages	PCL 5e, PCL 6, PostScript 3
Total input capacity	700 sheets
Total output capacity	500 sheets
Maximum resolution	2400 x 1200 DPI
Time to first page (black, normal)	7 s
Time to first page (color, normal)	8 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
Print speed (color, normal quality, A4/US Letter)	45 ppm
Maximum internal memory	2048 MB
Sound power level (standby)	26 dB
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Glossy paper, Heavy paper, Labels, Plain paper, Pre-Printed, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4
Wi-Fi	-
Network ready	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
Control type	Touch
Display diagonal	4.3 \
AC input frequency	50 - 60 Hz
Power consumption (standby)	116 W
Power consumption (printing)	637 W
Sustainability certificates	ENERGY STAR
Export Control Classification Number (ECCN)	EAR99
