Space Requirements / Service Space Envelope

Movable Configuration
Due the weight of the press (left and right modules), there are no movable configurations for the Versant 2100 Press.
Service/Operational Space Chart
Service/Operational Space Stationary Installation
Rear of Press 39.3 in / 1000 mm
Front of Press 37.3 in / 947.2 mm
Side of Press 29 in / 750 mm
Space above Press 78 in / 1981 mm
Space between Press and Print Server (as required) 24 in. / 610 mm


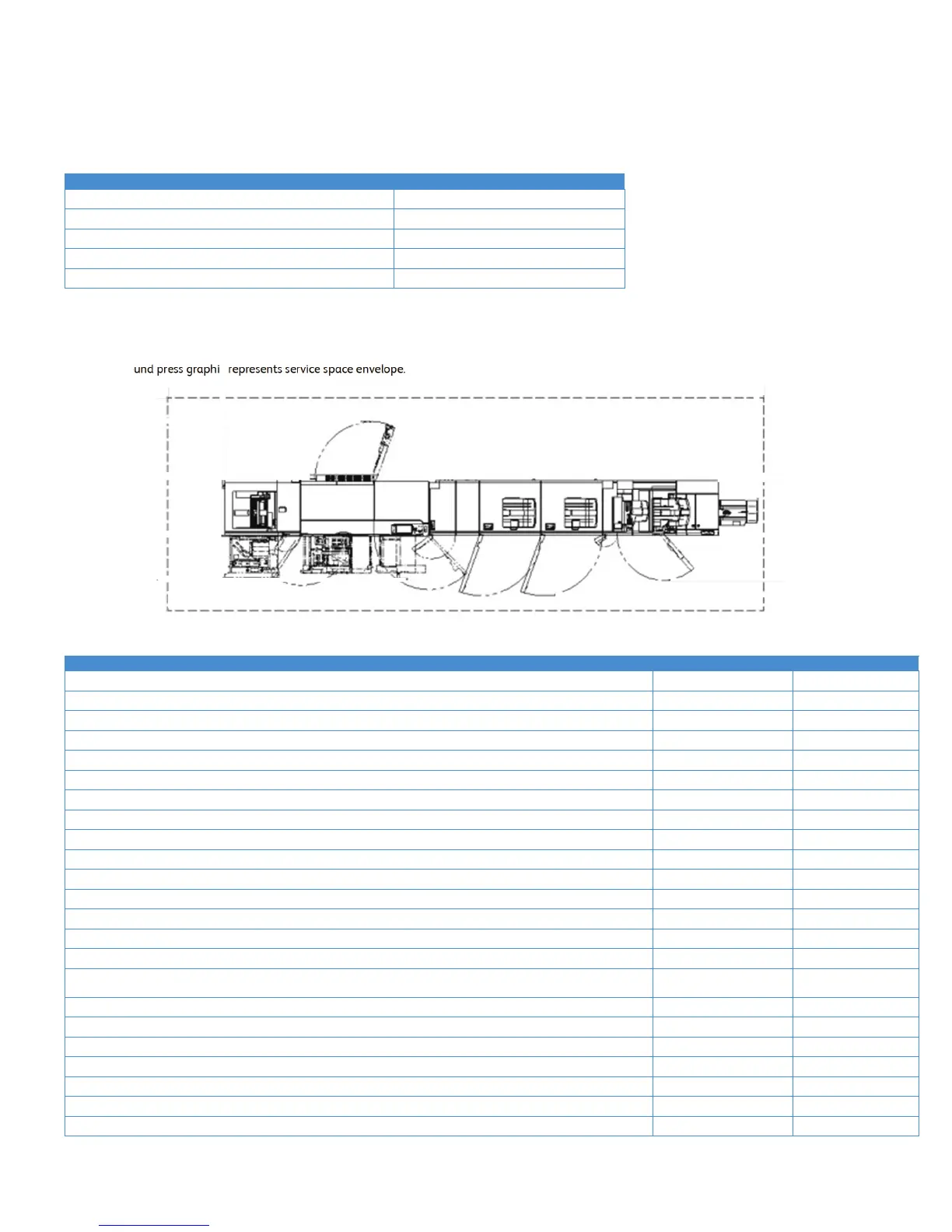

Service Space Envelope
The dimensions shown below provide the overall service space required, including the space to the nearest obstruction. The dimensions reflect both typical and
hallway installations and are absolute minimums.
Dotted line around press graphic represents service space envelope.
Note In the table below, “Press” refers to base configuration and includes Advanced HCF and Left and Right Modules.
Configuration Width Depth
Press + OCT (output tray fully extended) 164.5 in. / 4169.8 mm 109 in. / 2768.4 mm
Press + Interface Module + Standard Finisher 193 in. / 4894.8 mm 109 in. / 2768.4 mm
Press + Interface Module + Standard Finisher with C/Z Folder 200.5 in. / 5094.8 mm 109 in. / 2768.4 mm
Press + Interface Module + Booklet Maker with C/Z Folder 201 in. / 5099.8 mm 109 in. / 2768.4 mm
Press + Interface Module + Booklet Maker with C/Z Folder + SquareFold Trimmer Module 231 in. / 5880.9 mm 109 in. / 2768.4 mm
Press + Interface Module + Booklet Maker with C/Z Folder + SquareFold Trimmer Module + 2-Knife Trimmer 294.8 in / 7500.9 mm 109 in. / 2768.4 mm
Press + Interface Module + Booklet Maker 193 in. / 4899.8 mm 109 in. / 2768.4 mm
Press + Interface Module + Booklet Maker + SquareFold Trimmer Module 224 in. / 5680.9 mm 109 in. / 2768.4 mm
Press + Interface Module + Booklet Maker + SquareFold Trimmer Module + 2-Knife Trimmer 287.8 in / 7300.9 mm 109 in. / 2768.4 mm
Press + Interface Module + Standard Finisher Plus 173.5 in. / 4408.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS 183 in. / 4649.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Standard Finisher 224.5 in. / 5699.8 mm. 109 in. / 2768.4 mm
Press + Interface Module + HCS + Standard Finisher with C/Z Folder 232.5 in. / 5899.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Booklet Maker with C/Z Folder 232.5 in. / 5904.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Booklet Maker with C/Z Folder + SquareFold Trimmer Module 263.5 in. / 6685.9 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Booklet Maker with C/Z Folder + SquareFold Trimmer Module + 2-Knife
Trimmer
327.3 in / 8305.9 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Booklet Maker 224.5 in. / 5704.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Booklet Maker + SquareFold Trimmer Module 255.5 in. / 6485.9 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Booklet Maker + SquareFold Trimmer Module + 2-Knife Trimmer 319.3 in / 8105.9 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + Standard Finisher Plus 238 in. / 6038.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + HCS 215 in. / 5454.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + HCS + Standard Finisher 256 in. / 6504.8 mm 109 in. / 2768.4 mm
Press + Interface Module + HCS + HCS + Standard Finisher with C/Z Folder 264 in. / 6704.8 mm 109 in. / 2768.4 mm
