Installation Xerox
®
Versant™ 2100 Press
Customer Expectation and Installation Guide Xerox Confidential 35
Optional feeding / finishing device Required number of kits
Advance High Capacity Feeder 2 Kits
Interface Module + GBC
AdvancedPunch Pro
1 Kit
Interface Module + High Capacity
Stacker (HCS)
3 Kits
Interface Module + Standard Finisher
(without C/Z Folder)
2 Kits
Interface Module + Standard Finisher +
C/Z Folder
3 Kits
Inter
ace Module + Booklet
Maker
Finisher (without C/Z Folder)
2 Kits
Inter
ace Module + Booklet
Maker
Finisher + C/Z Folder
3 Kits
SquareFold Trimmer Module 1 Kit
Standard Finisher Plus* without C/Z
Folder
*Includes Finisher Module and
Finishing Transport
3 Kits
Standard Finisher Plus* with C/Z Folder
*Includes Finisher Module and
Finishing Transport
4 Kits
2-Knife Trimmer 2 Kits
Electrical Requirements
All press optional accessories and print servers should be placed within 6
feet (3 meters) of wall outlets. Ensure that there are enough wall outlets
available for optional accessories and the print server.

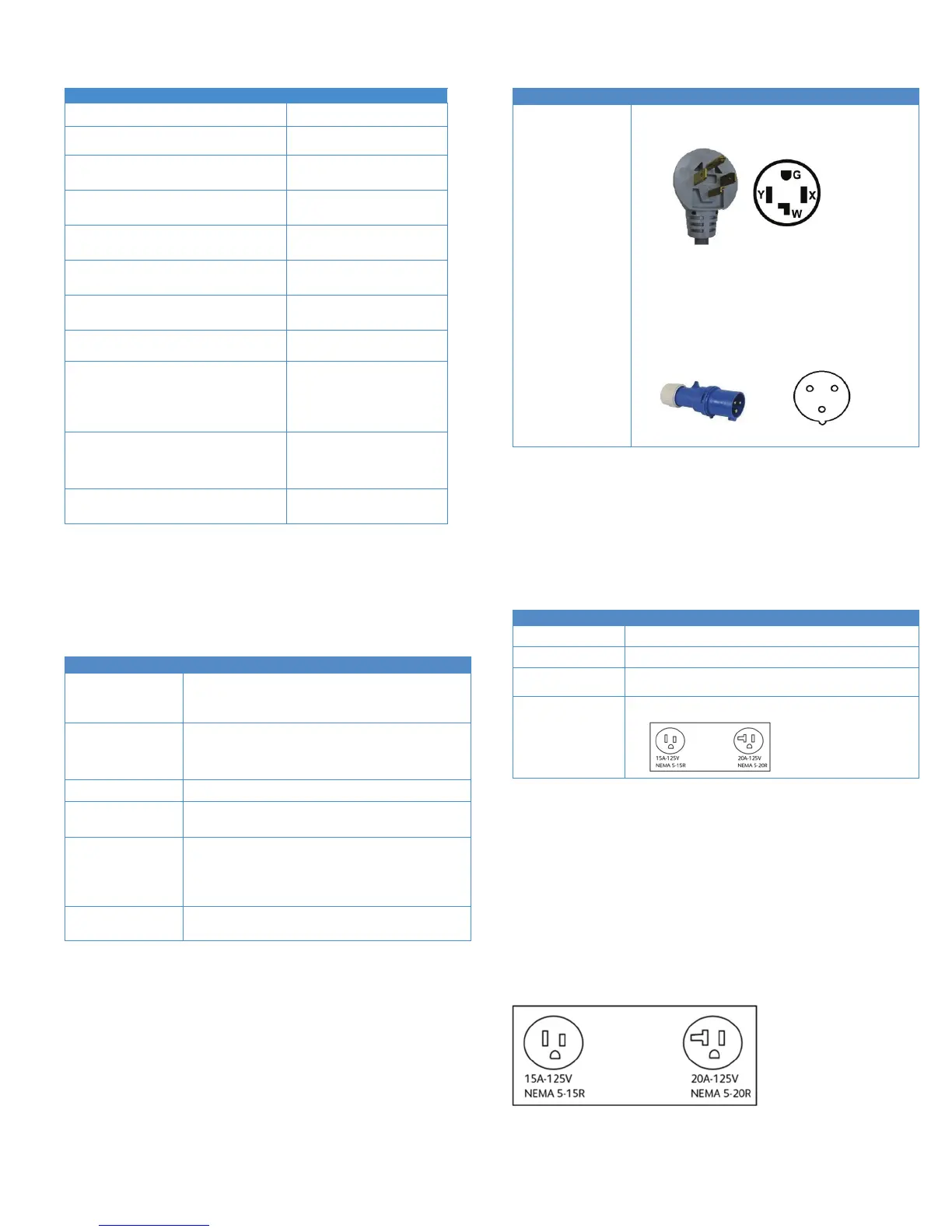

Press (Left and Right modules) Electrical Requirements
Electrical requirements must be satisfied prior to equipment delivery. The
Press requires a dedicated 30 Amp service.
Item Main processor
Nominal Voltage
North America (NA): 208-240 VAC (XC) -
10%/+6%
Europe: 220-240 VAC (XE) ±10%
Amperage circuit
Current rating
30*
*Requires a 30A circuit and receptacle
24
Cycles 50/60 Hz Single Phase
Frequency (Hz)
NA: 50/60 ±3%
Europe: 50 ±3%
Power
consumption
NA: 208V, 4.992KW or less
NA: 240V, 5.76KW or less
Europe: 220V, 5.28KW or less
Europe: 240V, 5.76KW or less
Power Cord Length
10 feet/3 meters
Item
Main processor
Plug/Receptacle
Diagram
North America Plug: NEMA 14-30P
North America Receptacle: NEMA 14-30R
A single power cord (USA plug and receptacle
diagram shown above) is required for the
print engine.
Europe: PCE Shark 023-6 Plug
Europe: receptacle that mates to the PCE Shark
023-6 plug
Advanced HCF Electrical Requirements
International Requirements
Each Advanced HCF (standard and optional) requires an additional 100-240
VAC or 208-240 VAC country-specific power receptacles.
USA Requirements
In the USA, each Advanced HCF (standard and optional) requires one
additional NEMA 5-15R or 5-20R receptacle; refer to the following table
Item
Advanced HCF
Current/run power
3 amps/65 watts
Voltage (VAC)
100-240
Power cord
length
8.2 feet/2.5 meters
Receptacle NEMA
part number
5-15R or 5-20R
Electrical Requirements for Optional Devices
International Requirements
Each optional finishing device requires an additional 100-240 VAC or
208-240 VAC country-specific power receptacles.
NOTE Use surge protection only as required, and it is the responsibility of
the customer.
USA Requirements
Each optional finishing device requires one additional NEMA 5-15R or
5-20R receptacle; refer to the following diagram and table.
NOTE Use surge protection only as required, and it is the responsibility of
the customer.
