Xerox® WorkCentre® 3025 Multifunction Printer Service Manual
Product Overview
General Procedures and Information
Product Overview
Paper Path

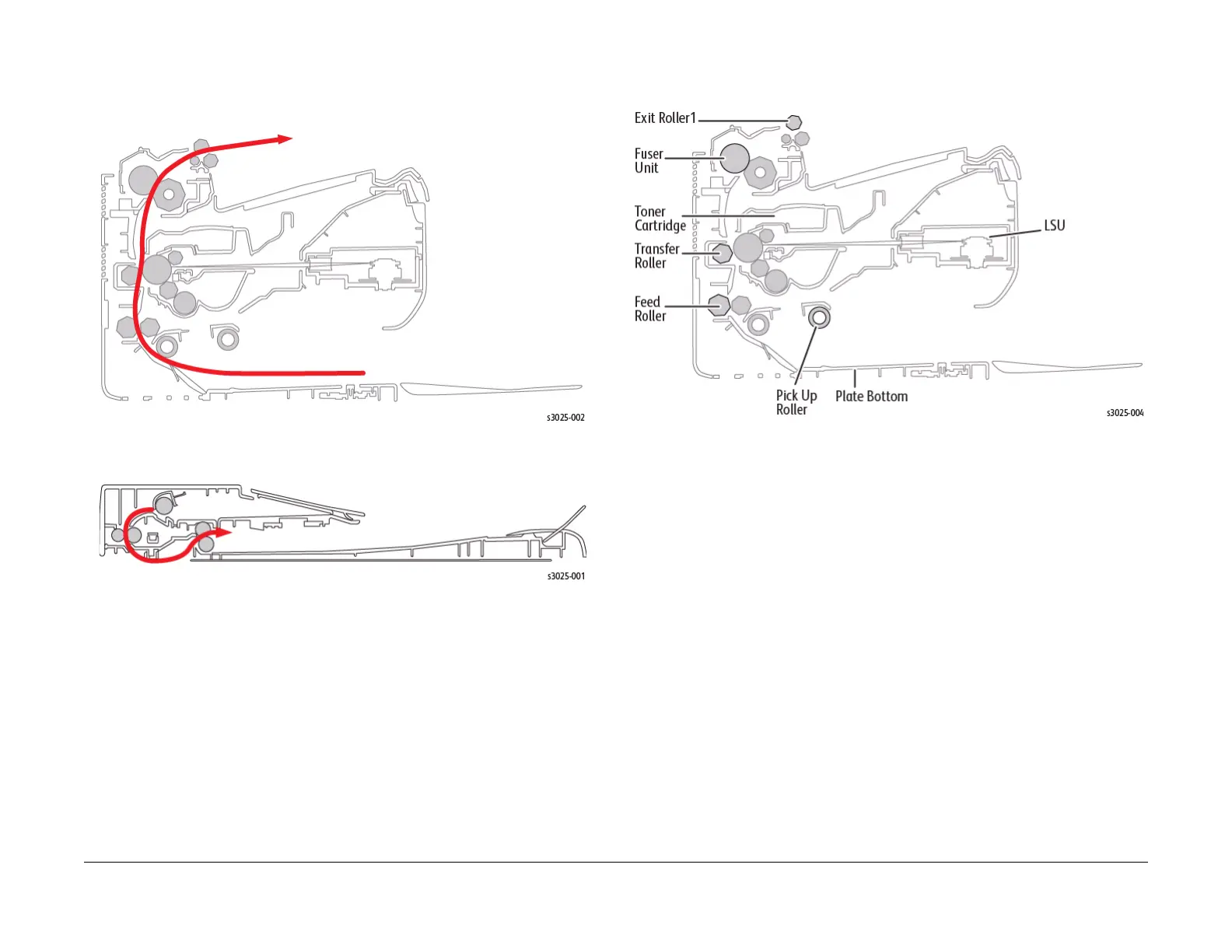

The following diagrams display the path that the paper follows during the printing process.
Figure 1 Paper Path
Figure 2 Automatic Document Feeder (ADF) 3025NI Model
System Layout
The figures below illustrates the mechanical parts of the printer.
Figure 3 System Layout
