Product Overview
General Procedures and Information
Print Process

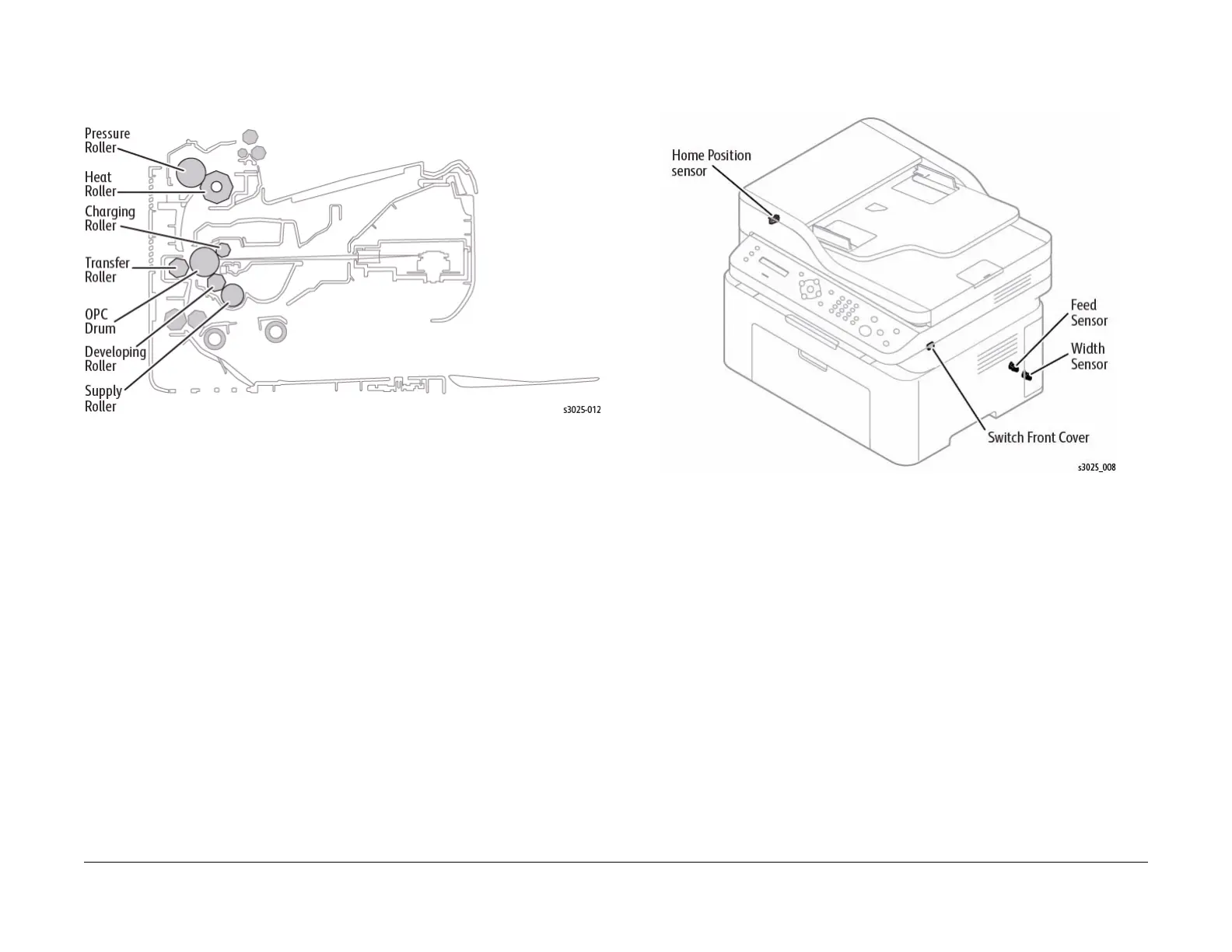

Figure 4 presents a general layout of the fusing and printing components used in the print pro-
cess.
Figure 4 Print Process
Sensors
Figure 5 shows the areas of the printer where the sensors are located on the 3025NI model.
Figure 5 Sensor Locations
