4-39
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.28, REP 1.29
Repairs
REP 1.28 ADF / Scanner Assembly
Parts List on PL 1.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Right Side Cover (REP 1.2).
3. At the Rear of the printer, remove the screws (2) (Figure 1).

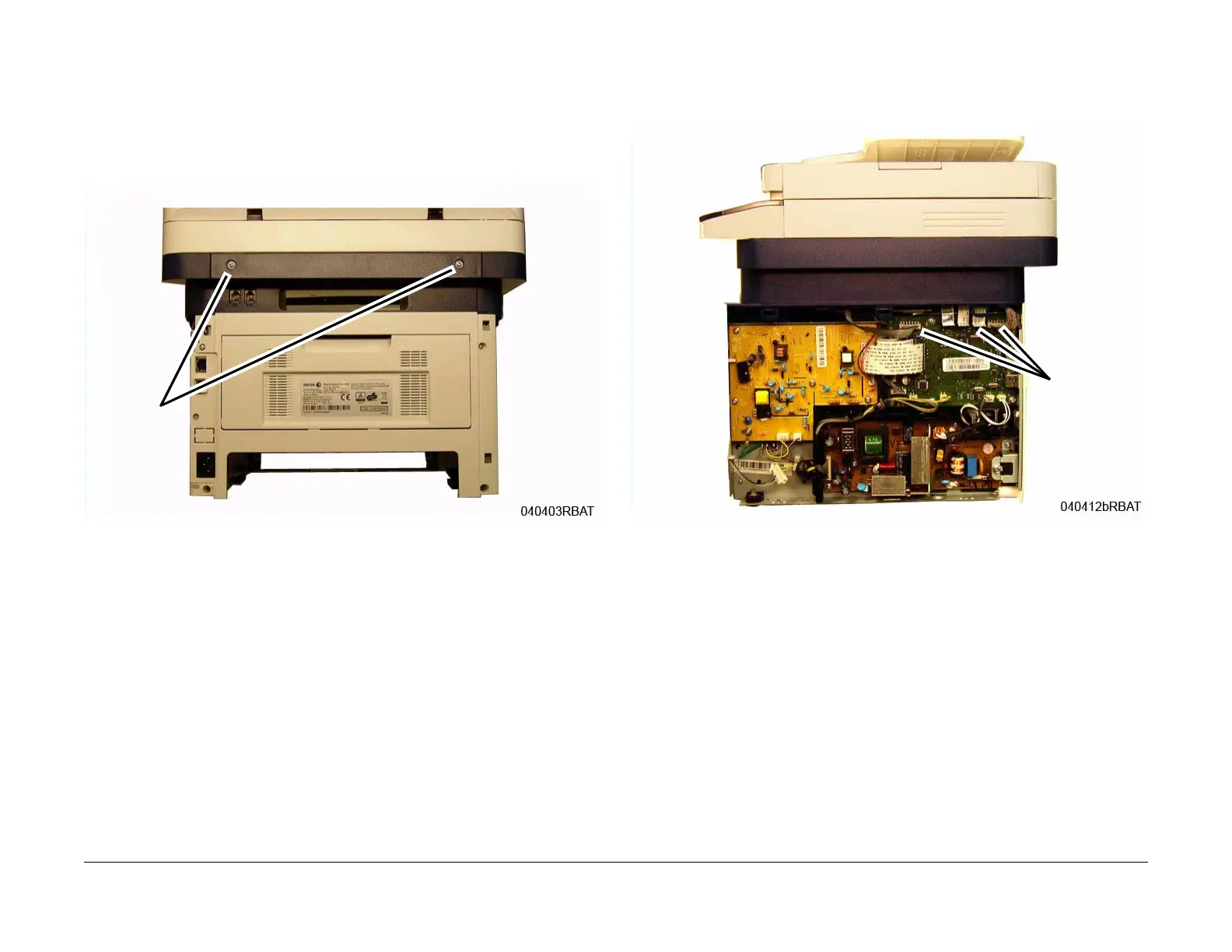

Figure 1 ADF / Scanner Screws
4. Remove the ADF / Scanner Assembly (Figure 2):
a. Disconnect the connectors (3) from the Main PWB
b. Slide the ADF to the Front and lift it off of the printer, routing the wires through the
Middle Cover.
Figure 2 ADF / Scanner Removal
Replacement
Install the components in the reverse of removal.
Screws
Connectors
Front

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
