4-35
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.25
Repairs
2. Remove the Document Feed Roll Assembly (Figure 2).
a. Remove the E-Rings (3).
b. Slide the drive shaft out of the Feed Roll Assembly.

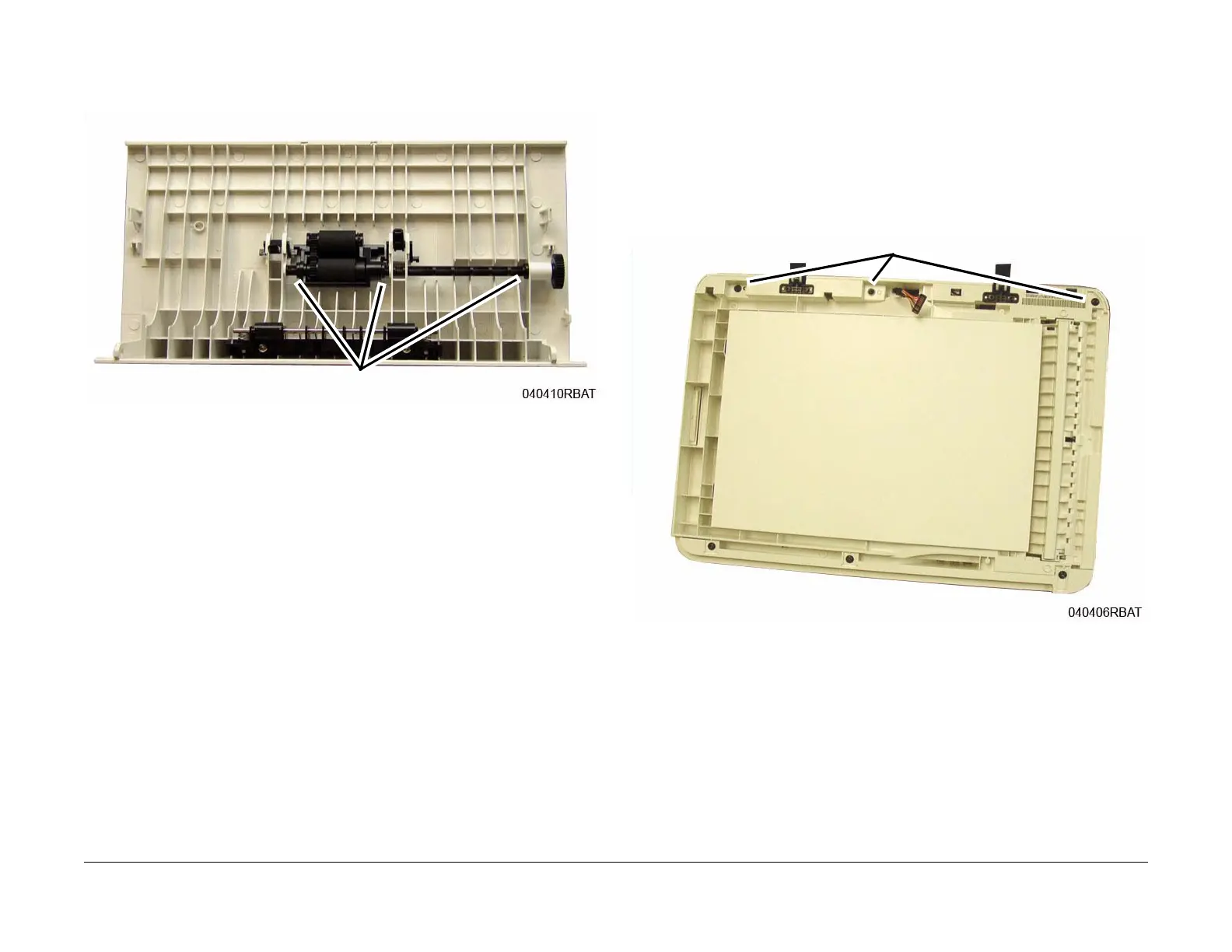

Figure 2 Feed Roll E-rings
Replacement
Install the components in the reverse of removal.
NOTE: Install the E-rings in the following order:
1. The E-ring by the gear.
2. The E-ring (center) by the Spring.
3. The E-ring at the end of the shaft.
REP 1.25 ADF Drive Motor
Parts List on PL 1.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the ADF (REP 1.22).
3. Remove the ADF Rear Cover (Figure 1):
a. On the underside of the ADF, remove the Rear Cover screws (3).
b. Lift the Top of the cover away from the ADF, then pull the bottom away to release the
latches.
Figure 1 Rear Cover Screws (Bottom View)
E-rings
Screws

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
