Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.1
Parts Lists

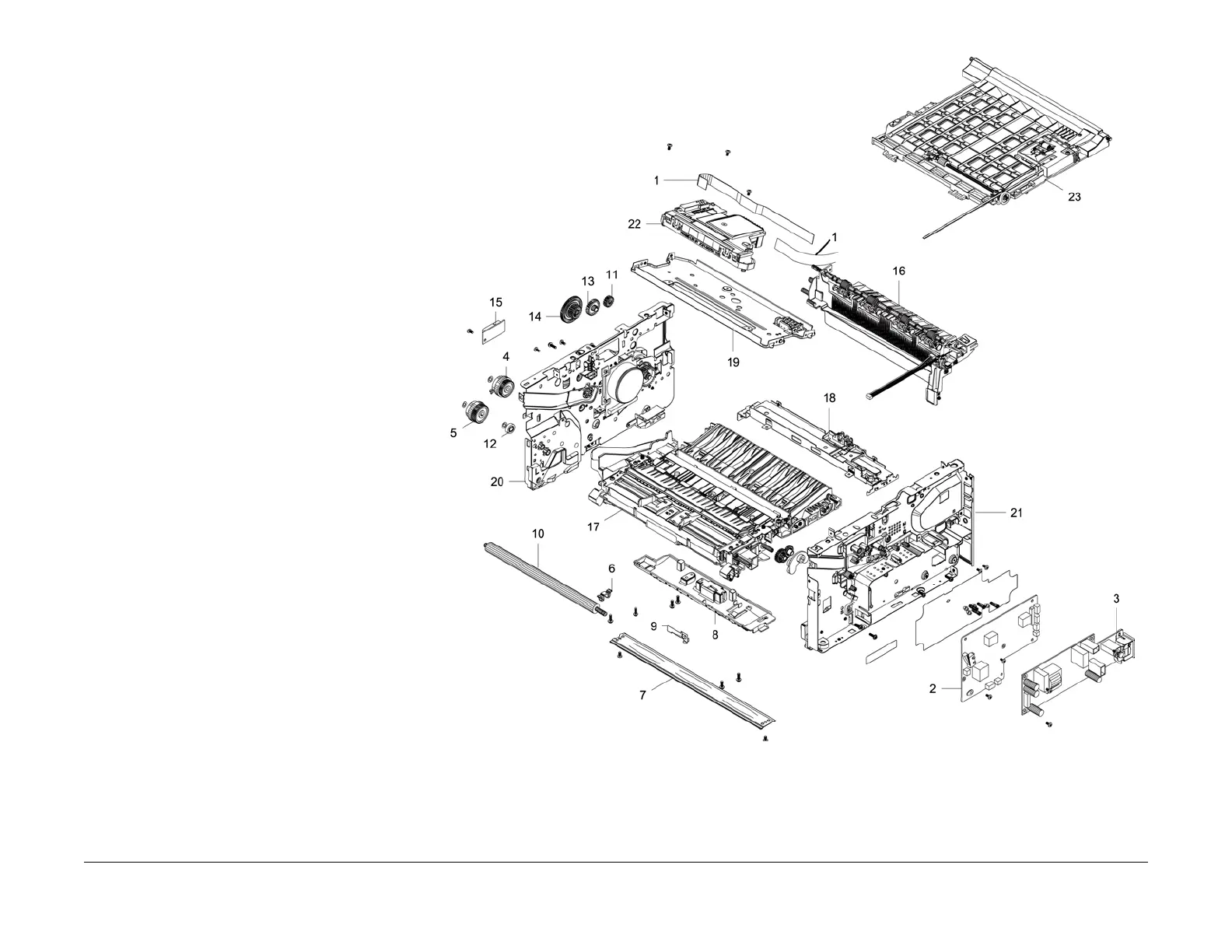

PL 4.1 Frame
Item Part Description
1 117N01969 Flat Cable
2 105N02301 HVPS
3 105N02300 LVPS 220V
– 105N02299 LVPS 110V
4 121N01247 Registration Clutch
5 121N01248 Feed Clutch
6 – Transfer Roll Holder
7– Bottom Bar
8 – Feed Frame
9 – Ground Clip
10 022N02803 Transfer Roller
11 – Exit Gear
12 – Feed Gear
13 – Exit Idle Gear
14 – Exit Gear
15 011N00581 Paper Feed PWB
16 – Main Exit Frame
17 – Paper Path Frame
18 – Exit Sensor Frame
19 – LSU Bracket Frame
20 – Left Main Frame
21 – Right Main Frame
22 062N00292 LSU
23 – Duplex (PL 4.2)

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
