Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 1.1
Parts Lists

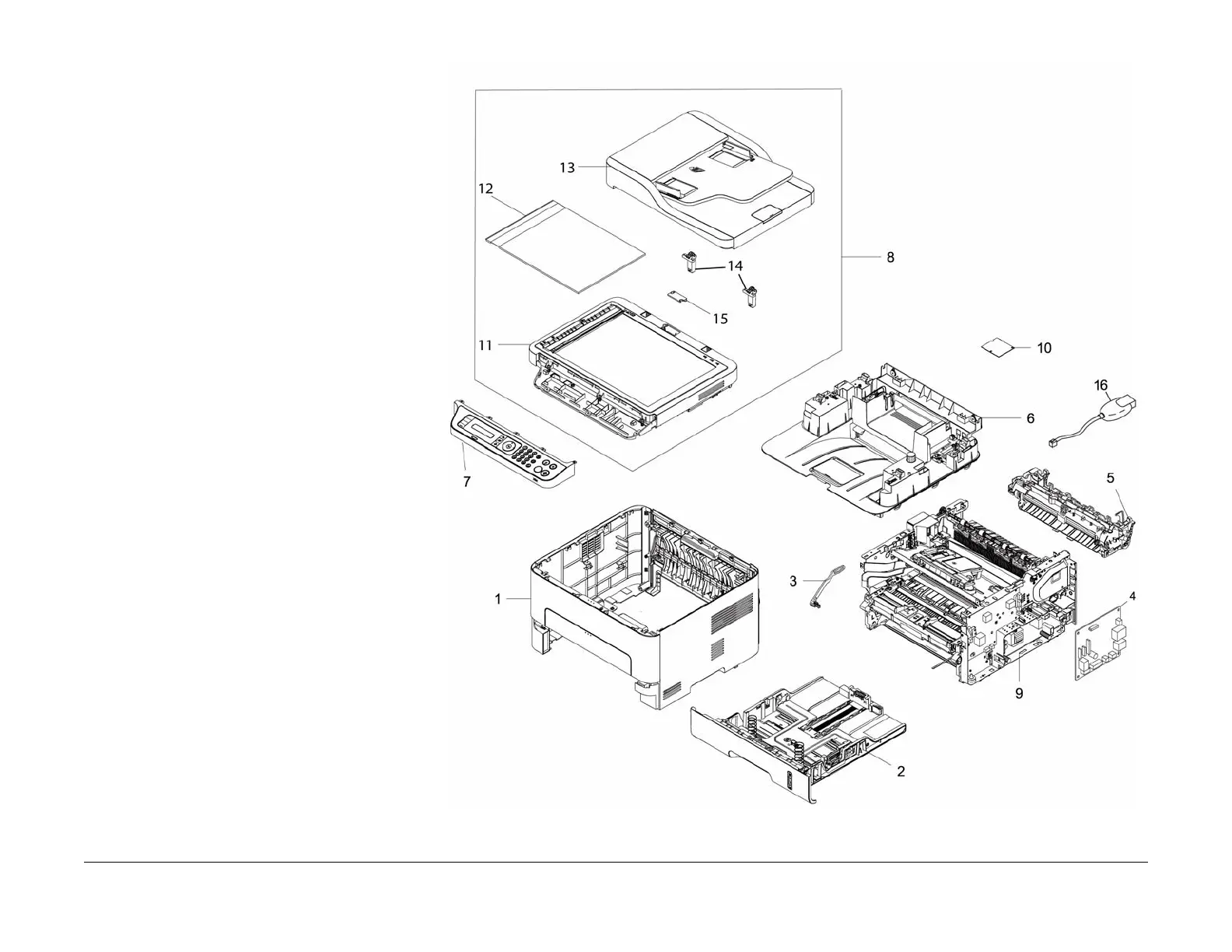

PL 1.1 Main
Item Part Description
1 – Cover
2 – Paper Tray (PL 6.1)
3 – Coupling B Lever
4 140N63716 PWB-MAIN-3225 DN
– 140N63715 PWB-MAIN-3225 DNI
– 140N63714 PWB-MAIN-3215 NI
5 – Fuser (PL 5.1)
6 – Middle Cover (PL 2.2)
7 – Control Panel (PL 8.1)
8 – Scanner/ADF Assembly
9– Frame
10 140N63727 WIFI PWB
11 – Platen (PL 7.1)
12 050N00680 Document Pad
13 022N02799 ADF Module (PL 1.2)
14 003N01117 ADF Hinge
15 – Connector Cover
16 005N01172 Surge Protector (South Africa Only)

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
