Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 6.1
Parts Lists

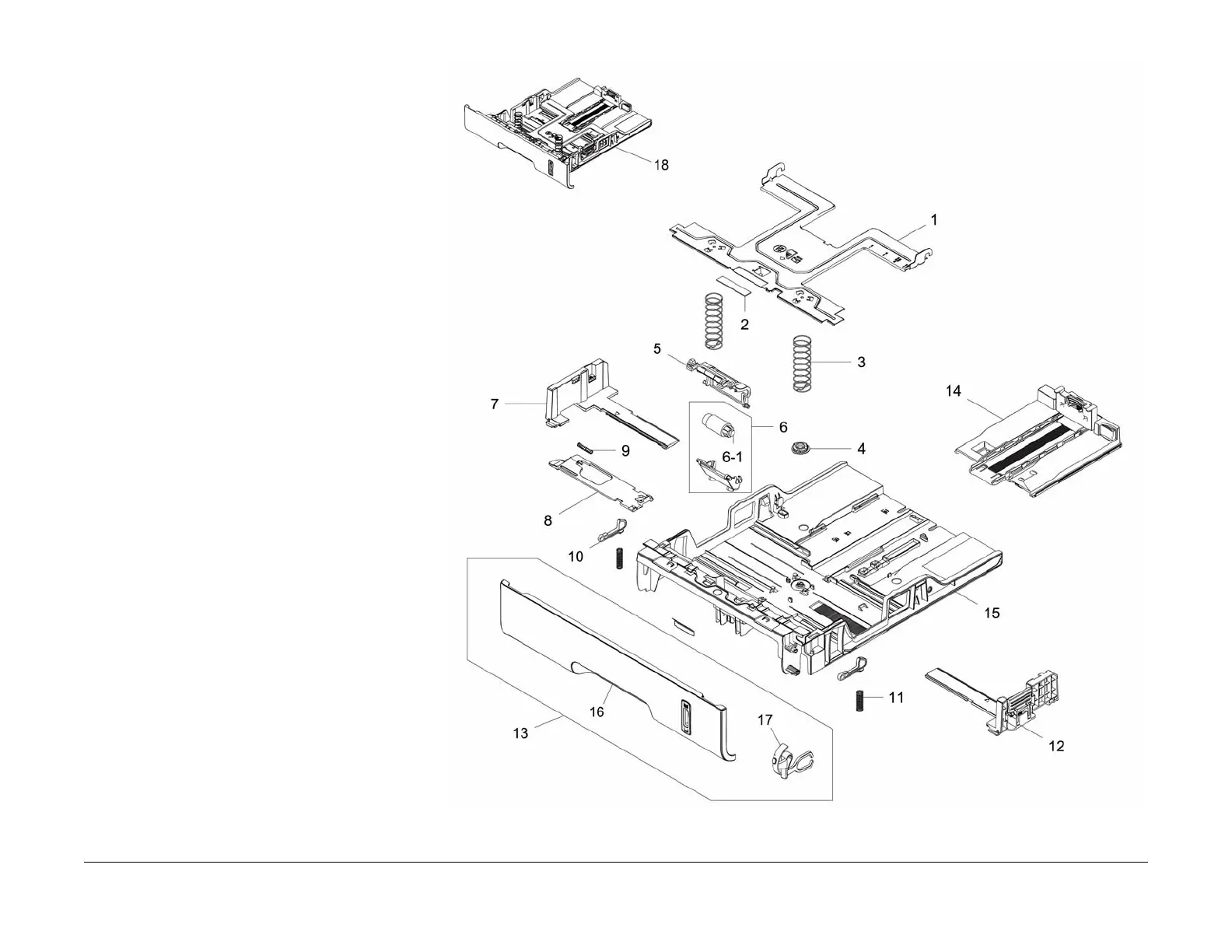

PL 6.1 Paper Tray
Item Part Description
1 – Lift Plate
2– Pad
3– Spring
4 – Pinion Gear
5 – Retard Roll Cover
6 050N00683 Retard Roll Assembly
7 – Left Paper Guide
8 – Latch Plate
9– Spring
10 – Paper Tray Latch
11 – Spring
12 – Right Paper Guide
13 – Paper Tray Handle
14 – Paper Tray Rear Guide
15 – Paper Tray Frame
16 – Paper Tray Handle
17 – Paper Indicator
18 050N00682 Paper Tray
