4-57
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.36
Repairs
Replacement
NOTE: Make sure the post on the Separation Pad is positioned inside the Spring (Figure 3).
Install the components in the reverse of removal.

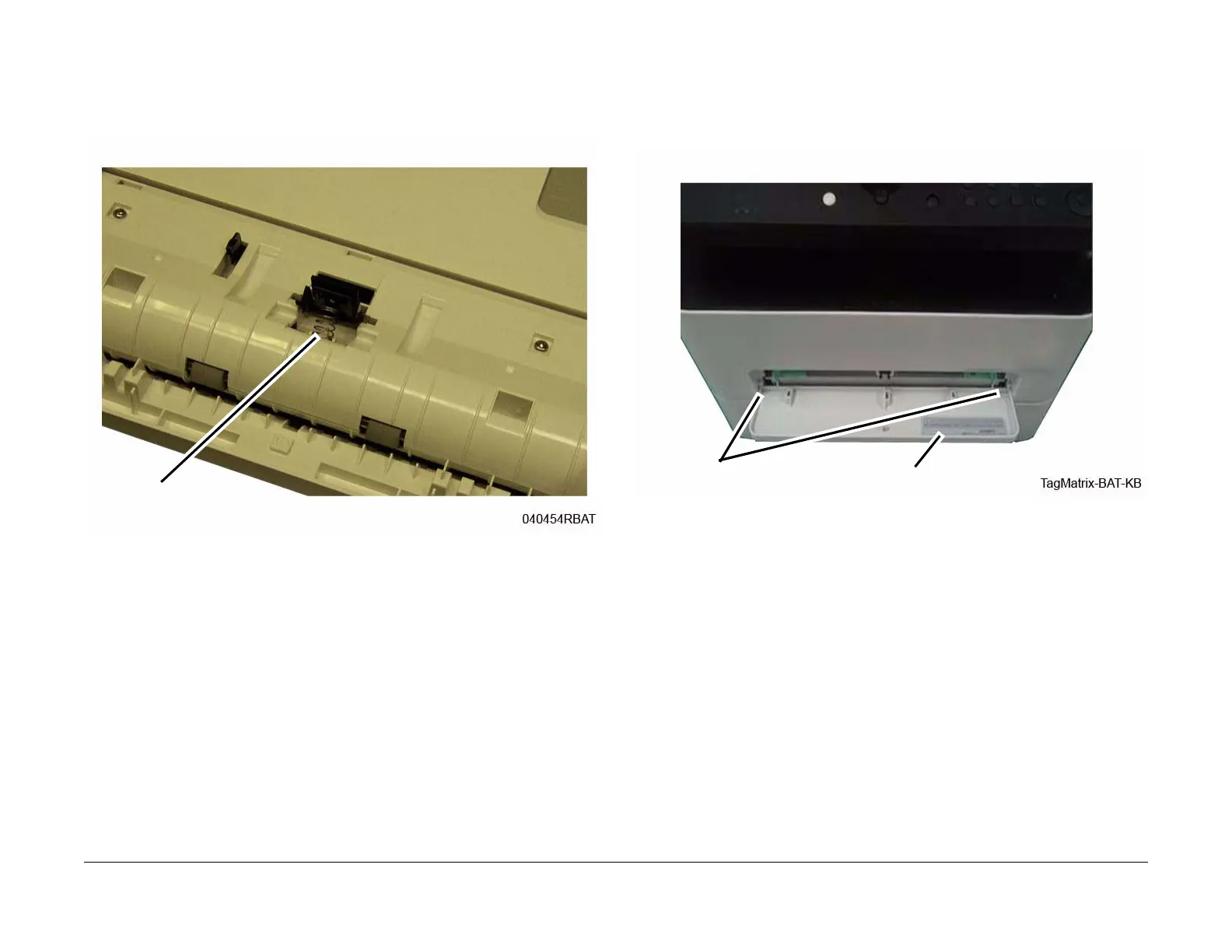

Figure 3 Separation Pad Spring (Top View)
REP 1.36 Manual Feed Cover
Parts List on PL 2.1
Removal
1. Remove the Manual Feed Cover, release it from the pivots (2) (Figure 1).
Figure 1 Manual Feed Cover (Top View)
Replacement
1. Remove the Tag Matrix from the old cover and install it on to the new Manual Feed Cover
(Figure 1).
Install the components in the reverse of removal.
Spring
Pivots
Tag Matrix

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
