4-23
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.12, REP 1.13
Repairs
Replacement
1. Install the components in the reverse of removal.
NOTE: Make sure the Springs (2) on the Retard Roll Holder are correctly positioned in the
holes (Figure 4).

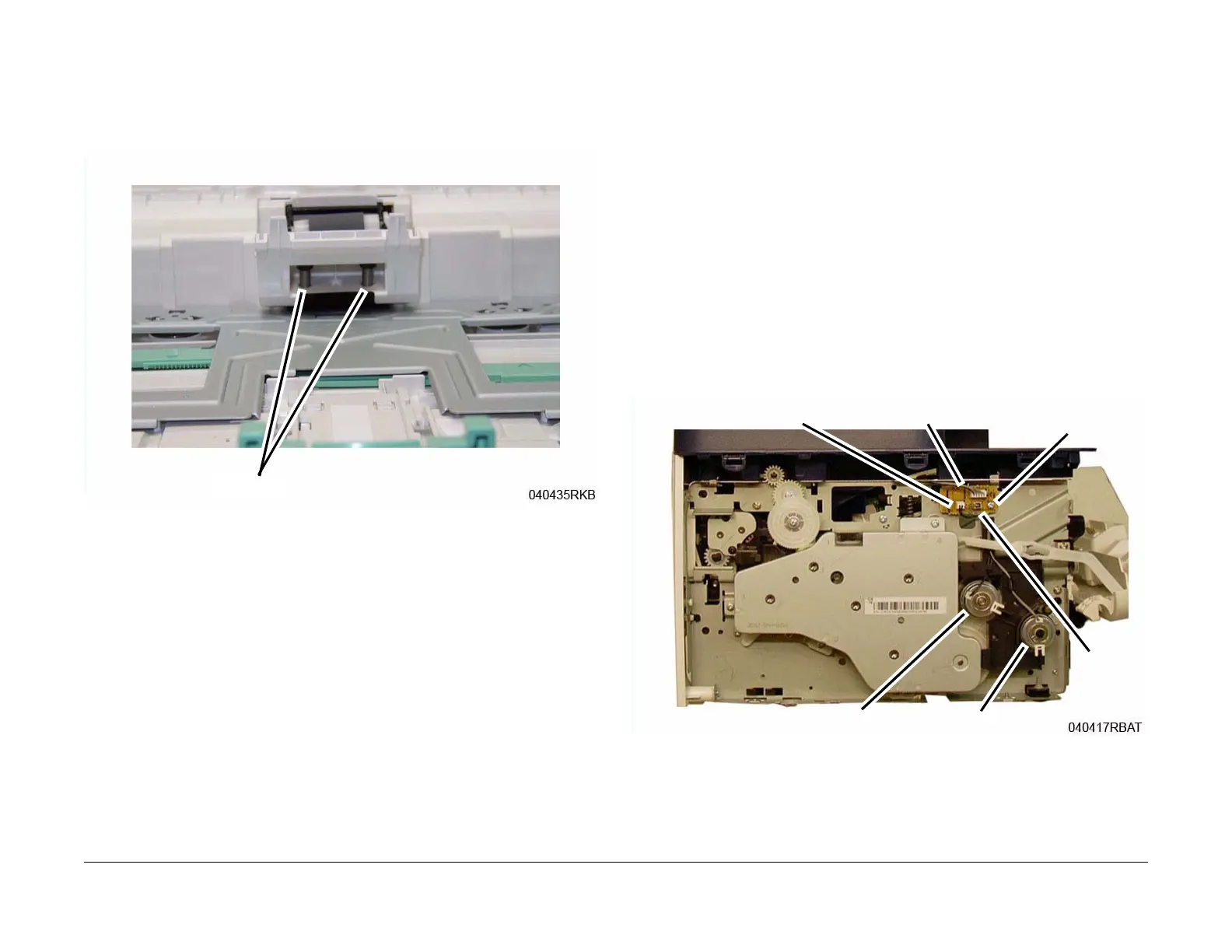

Figure 4 Springs in Holes
REP 1.13 Feed and Registration Clutches / Joint PWB
Parts List on PL 4.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Left Side Cover (REP 1.2).
3. Removing the Joint PWB (Figure 1):
a. Disconnect the Connectors (3) on the Joint PWB.
b. Remove the Screw (1) and the PWB.
4. Removing the Feed Clutch (Figure 1):
a. Disconnect the Feeder Clutch Connector (CN2) on the Joint PWB and release the
wires from the wire clamps.
b. Remove the E-ring and Washer from the Feeder Clutch.
c. Remove the Feeder Clutch.
5. Removing the Registration Clutch (Figure 1):
a. Disconnect the Registration Clutch Connector (CN1) on the Joint PWB and release
the wires from the wire clamps.
b. Remove the E-ring and Washer from the Registration Clutch.
c. Remove the Registration Clutch.
Figure 1 Feed and Registration Clutches / Joint PWB
Replacement
Install the components in the reverse of removal.
Springs
Joint PWB
CN2
CN1
Screw
Registration Clutch
Feed Clutch

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
