Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.34
Repairs
6. Unlatch the WNPC PWB from the underside of the Middle Cover and remove it (Figure 2).

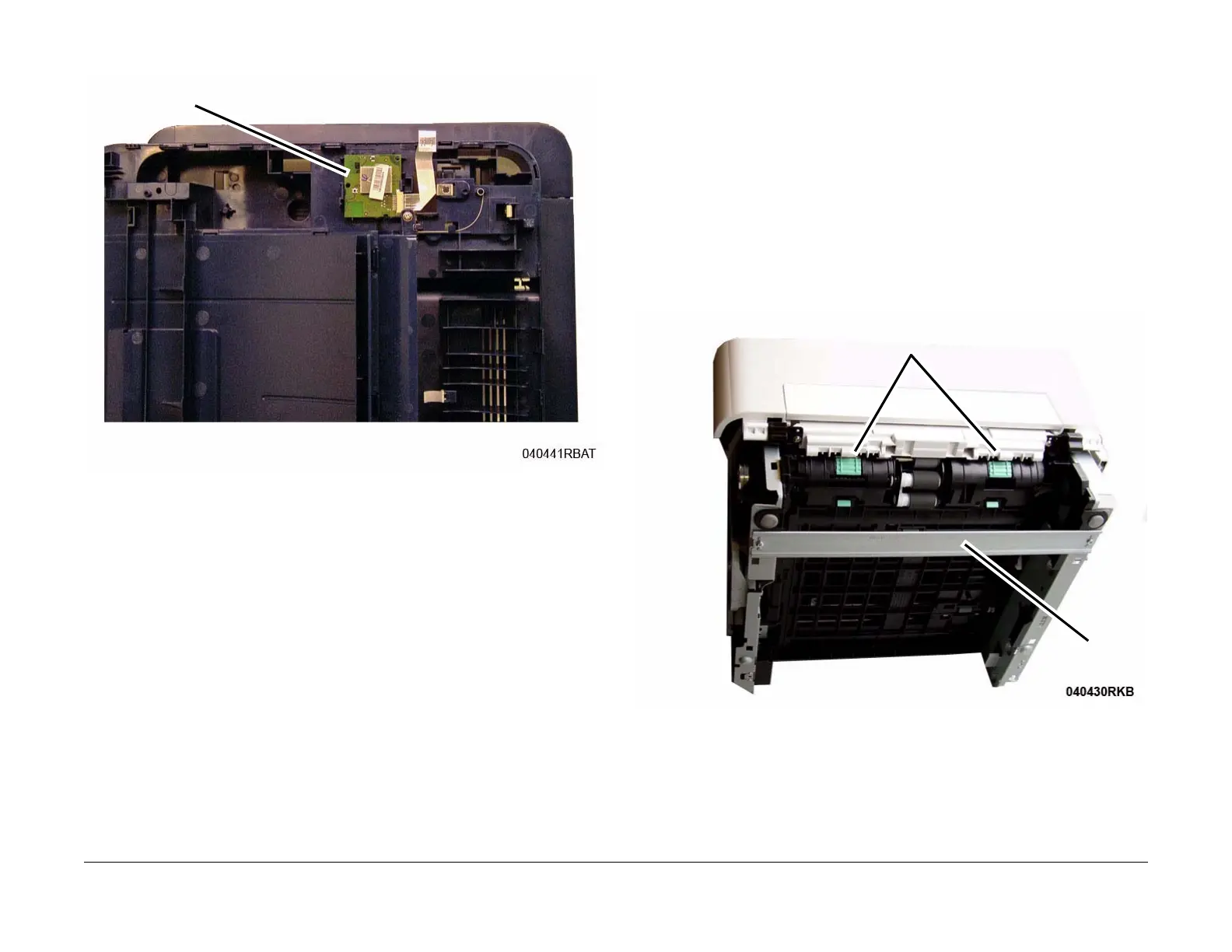

Figure 2 WNPC PWB (Middle Cover Bottom View)
Replacement
Install the components in the reverse of removal.
REP 1.34 Registration Roll
Parts List on PL 4.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. The Left and Right Side Covers (REP 1.2).
b. The Front Cover (REP 1.1).
c. The Rear Cover (REP 1.4).
3. Remove the Middle Cover (REP 1.3).
4. Remove the Bottom Bar and Duplex Module (Figure 1).
a. Remove the screws (2) and the Bottom Bar.
b. Press the Green Tabs (2) to unlatch the Duplex Paper Guide.
Remove the Duplex Paper Guide through the rear of the printer.
Figure 1 Bottom Bar and Duplex Paper Guide (Bottom View)
5. Remove the Fuser Module (REP 1.17).
WNPC PWB
Duplex Tabs
Bottom Bar

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
