Xerox WorkCentre 3215 User Manual

June 2014
5-14
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 5.1
Parts Lists

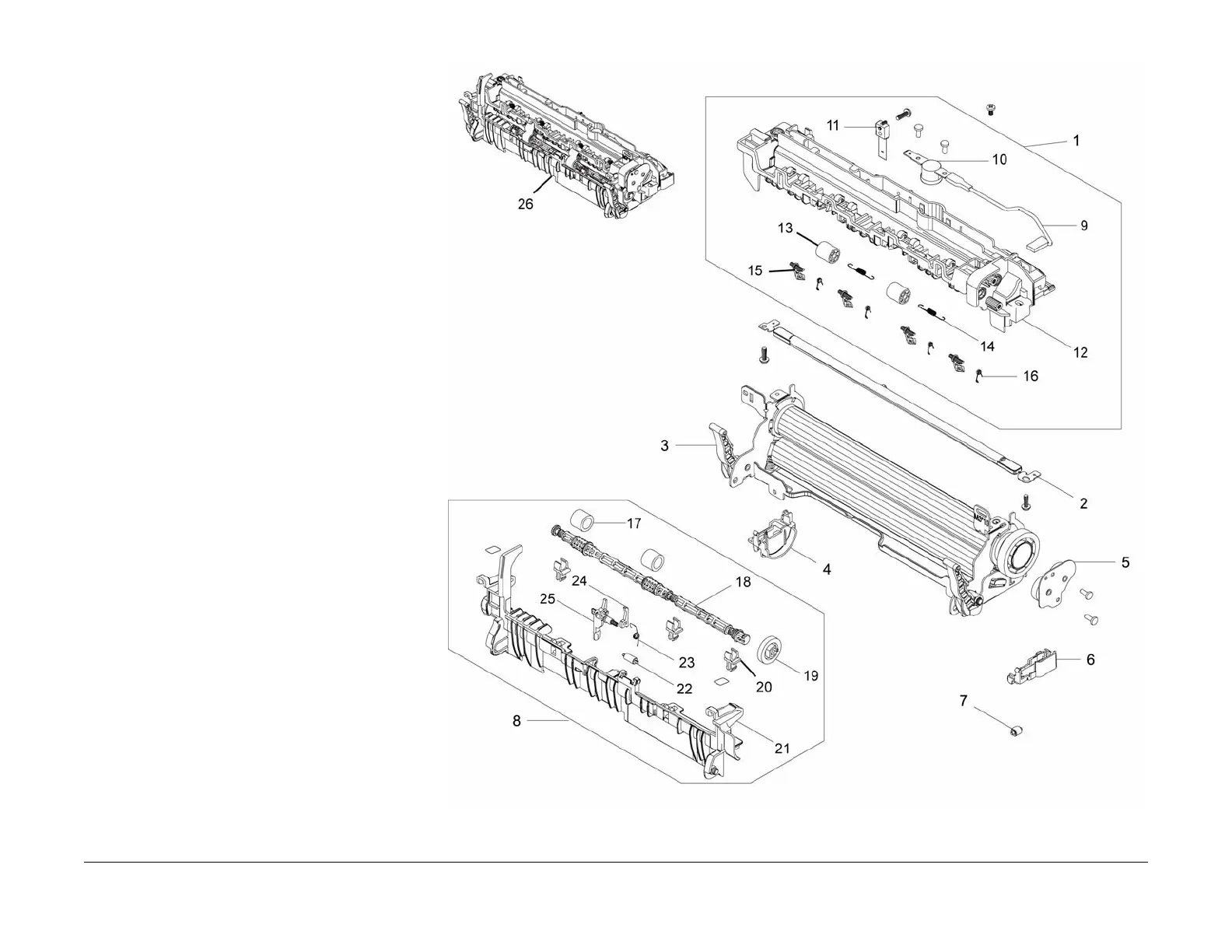

PL 5.1 Fuser
Item Part Description
1 – Upper Fuser
2 – Fuser Lamp
3 – Lower Fuser
4 – Right Lamp Cap
5 – Fuser Exit Drive
6 – Left Lamp Cap
7 – Fuser Gear Stopper
8 – Fuser Rear
9 – Fuser Joint Harness
10 – Thermostat
11 – Thermistor
12 – Fuser Cover
13 – Exit Roller
14 – Spring
15 – Guide
16 – Spring
17 – Exit Roller
18 – Exit Shaft
19 – Exit Gear
20 – Bushing
21 – Rear Guide
22 – Exit Idle Roller
23 – Spring
24 – Actuator Holder
25 – Exit Sensor Actuator
26 126N00430 Fuser Module 110V
– 126N00431 Fuser Module 220V

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
