Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 4.2
Parts Lists

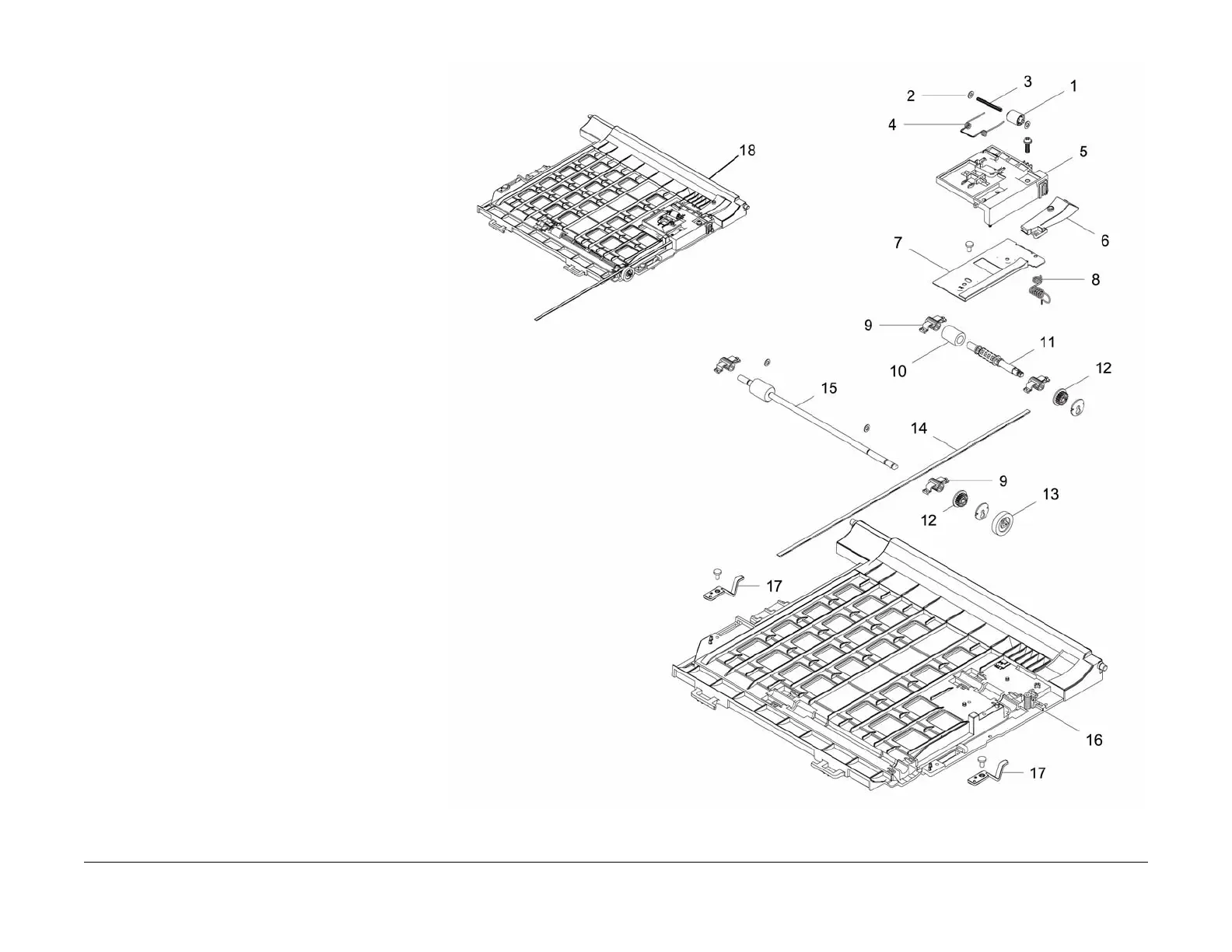

PL 4.2 Duplex
Item Part Description
1 – M Idle Roller
2 – Washer
3 – Idle Roll Shaft
4– Spring
5 – Duplex Upper Guide
6 – Duplex Paper Guide
7 – Duplex Align Bracket
8 – Ground Terminal
9 – Roller Bushing
10 – Rubber Feed Roller
11 – Feed Shaft
12 – Pulley
13 – Exit Gear
14 – Flat Rubber Belt
15 – Feed Roller
16 – Duplex Base Frame
17 – Duplex Latch
18 022N02795 DUPLEX-set to A4
– 022N02796 DUPLEX-set to Letter

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
