4-19
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.9, REP 1.10
Repairs

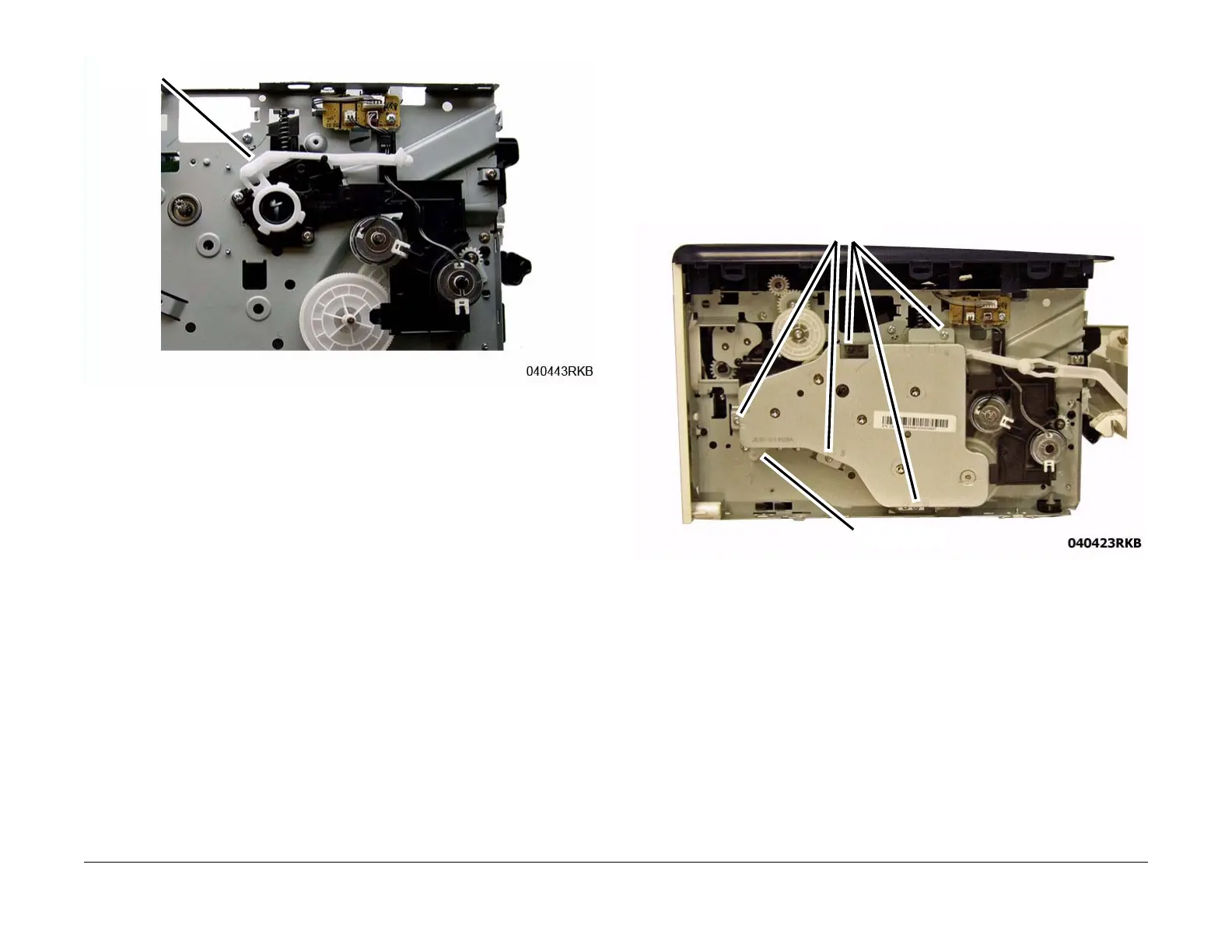

Figure 11 Front Cover Support Arm Placement
REP 1.10 Main Drive Unit
Parts List on PL 4.6
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Left Side Cover (REP 1.2).
3. Remove the screws (5) from the Main Drive Unit (Figure 1).
4. Move the Fuser Drive Locking Lever to the Unlock position (Right) (Figure 1).
Remove the Main Drive Unit and the Front Door Support Arm.
Figure 1 Main Drive Unit Removal
Replacement
1. Place the Front Cover Support Arm on the Stop Bracket (Figure 2).
Support Arm
Screws
Locking Lever

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
