Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.12
Repairs
REP 1.12 Retard Roll
Parts List on PL 6.1
Removal
1. Remove the Paper Cassette and any paper from the tray.
2. In the Cassette, pull down on the latches (2) to open the Retard Roll Cover (Figure 1).

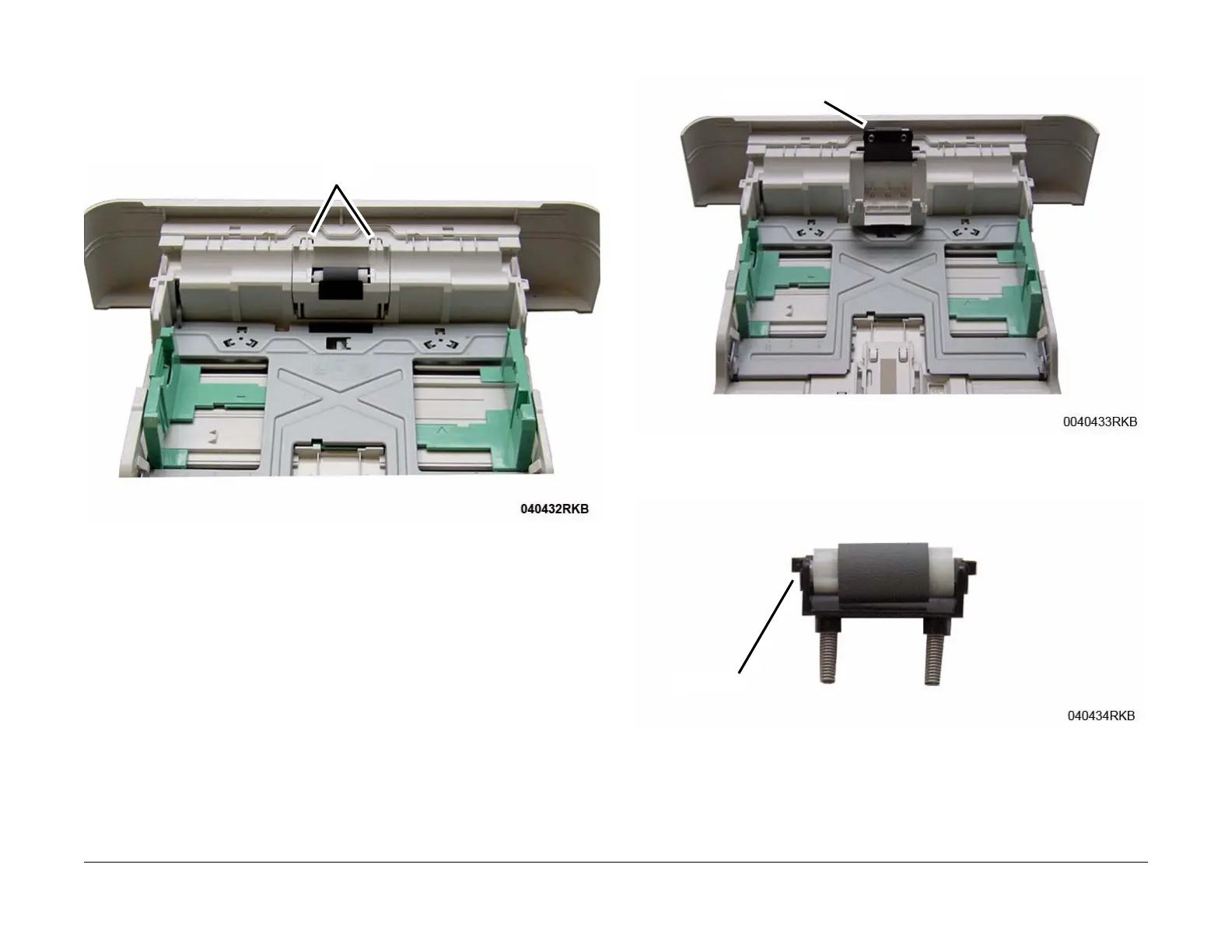

Figure 1 Retard Roll Cover Latches
3. Rotate the Retard Roll Holder up and remove it from the Cassette (Figure 2).
Figure 2 Retard Roll Holder Removal
4. Sliding the left side of the Retard Roll out of the holder and remove it (Figure 3).
Figure 3 Retard Roll Removal
Latches
Retard Roll Holder
Slide Out
