Xerox WorkCentre 3215 User Manual

June 2014
4-28
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.16
Repairs
REP 1.16 Transfer Roll
Parts List on PL 4.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Open the Front Cover.
NOTE: Cover the Drum Cartridge with several sheets of paper to prevent it from being light
shocked.
3. Remove the Toner Cartridge and the Drum Cartridge.

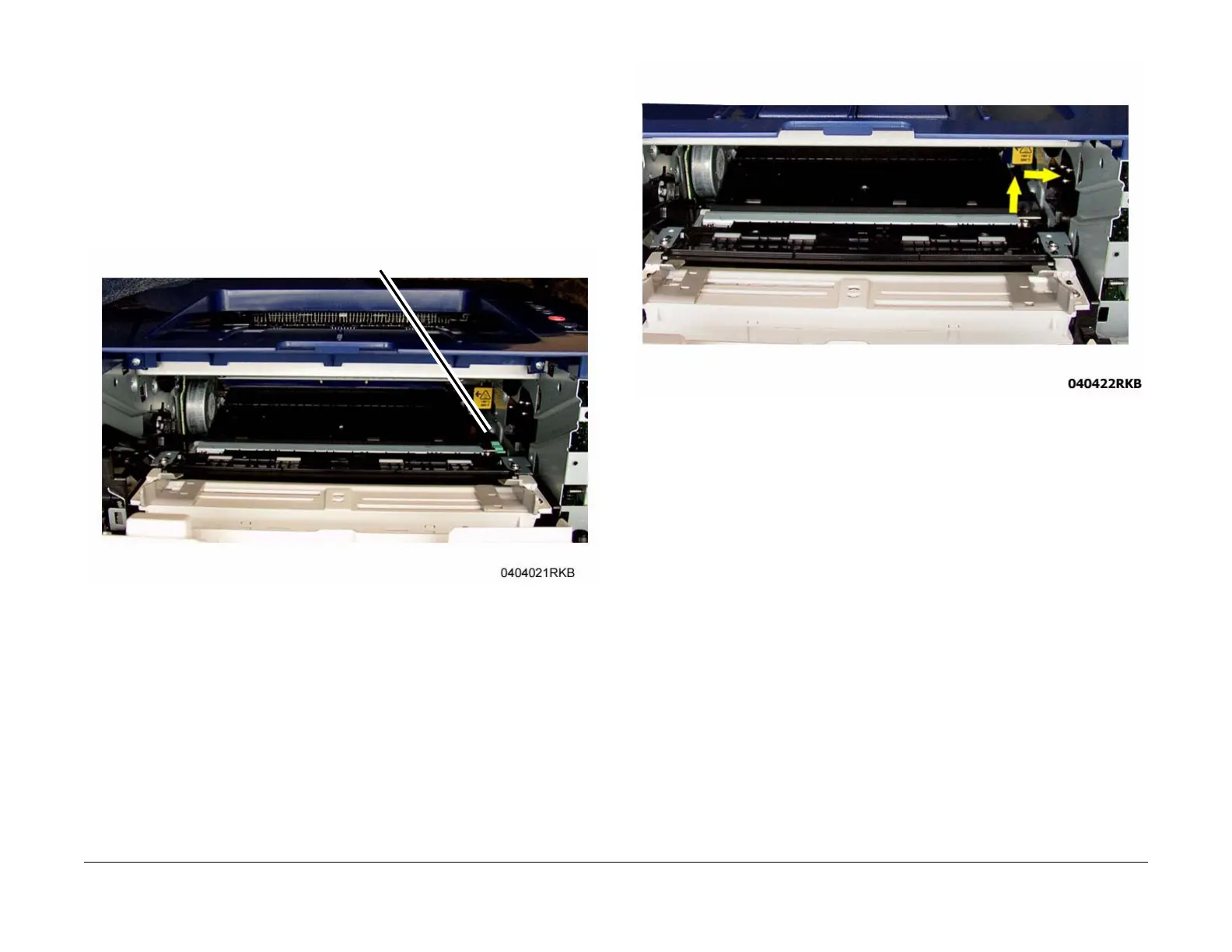

4. Remove (squeeze and lift) the Transfer Roll Retainer Clip (Figure 1).
Figure 1 Transfer Roll Retainer Clip (Front View)
5. Remove the Transfer Roll (Figure 2):
a. Lift the right end of the Transfer Roll and slide the left end out of the bushing.
Figure 2 Removing the Transfer Roll
Replacement
Install the components in the reverse of removal.
((
Transfer Roll Clip

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
