Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.3
Repairs
REP 1.3 Middle Covers
Parts List on PL 2.2
Removal
1. Remove the Left and Right Side Covers (REP 1.2).
2. Remove the ADF Module (REP 1.28).
3. Remove the Rear Cover (REP 1.4).
4. If the printer has a WiFi PWB, disconnect the WiFi connector on the Main PWB (Figure 1).

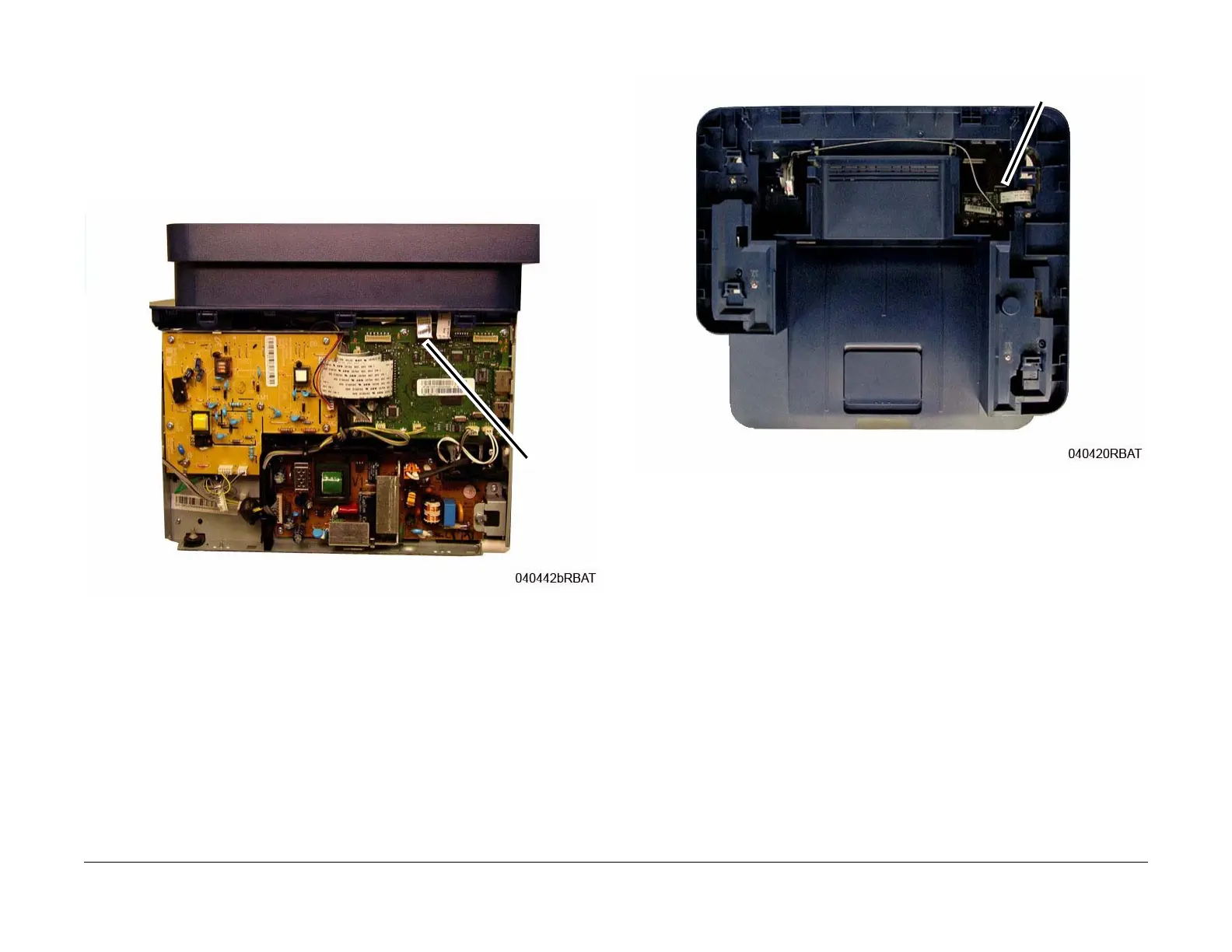

Figure 1 Wireless (WiFi) Connector
5. Disconnect the FAX PWB connector (Figure 2).
Figure 2 FAX PWB Connector (Top View)
Connector
Connector

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
