Xerox WorkCentre 3215 User Manual

June 2014
4-20
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.10
Repairs

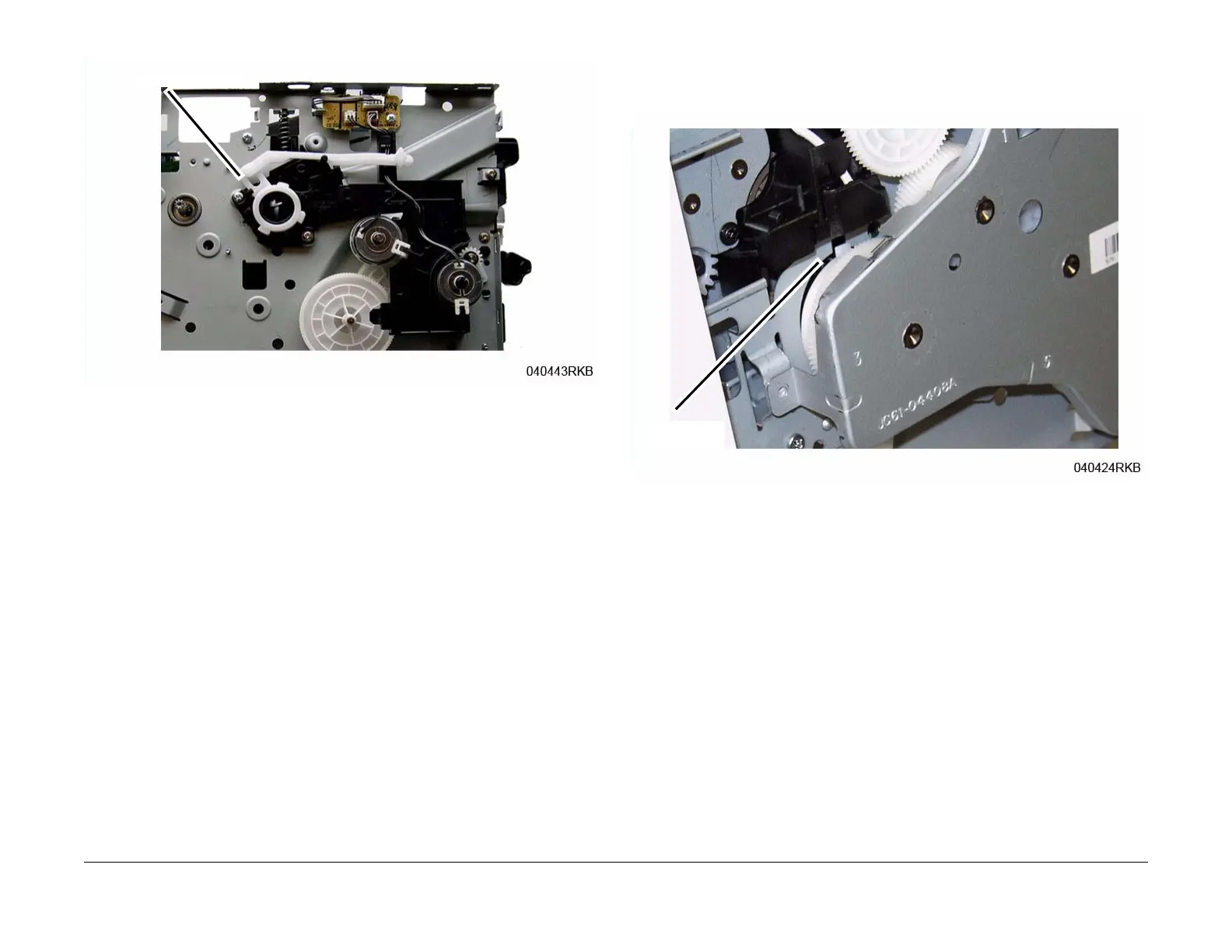

Figure 2 Front Cover Support Arm Placement
2. Reinstall the Main Drive Unit (5 screws).
NOTE: Make sure the Tabs (2) on the Locking Lever are inside the Frame cutouts before
moving the Fuser Drive Locking Lever to the Lock position.
3. Align the Locking Lever Tabs (2) to the cutouts in the frame (Figure 3).
Figure 3 Locking Lever Tab and Frame Cutout
4. Press in on the Locking Lever to move the Tabs into the cutouts.
Move the Locking Lever to the Lock position (Left).
5. Install the remaining components in the reverse of removal.
Support Arm
Locking Lever
Tab and Cutout

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
