Xerox WorkCentre 3215 User Manual

June 2014
4-42
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.31
Repairs

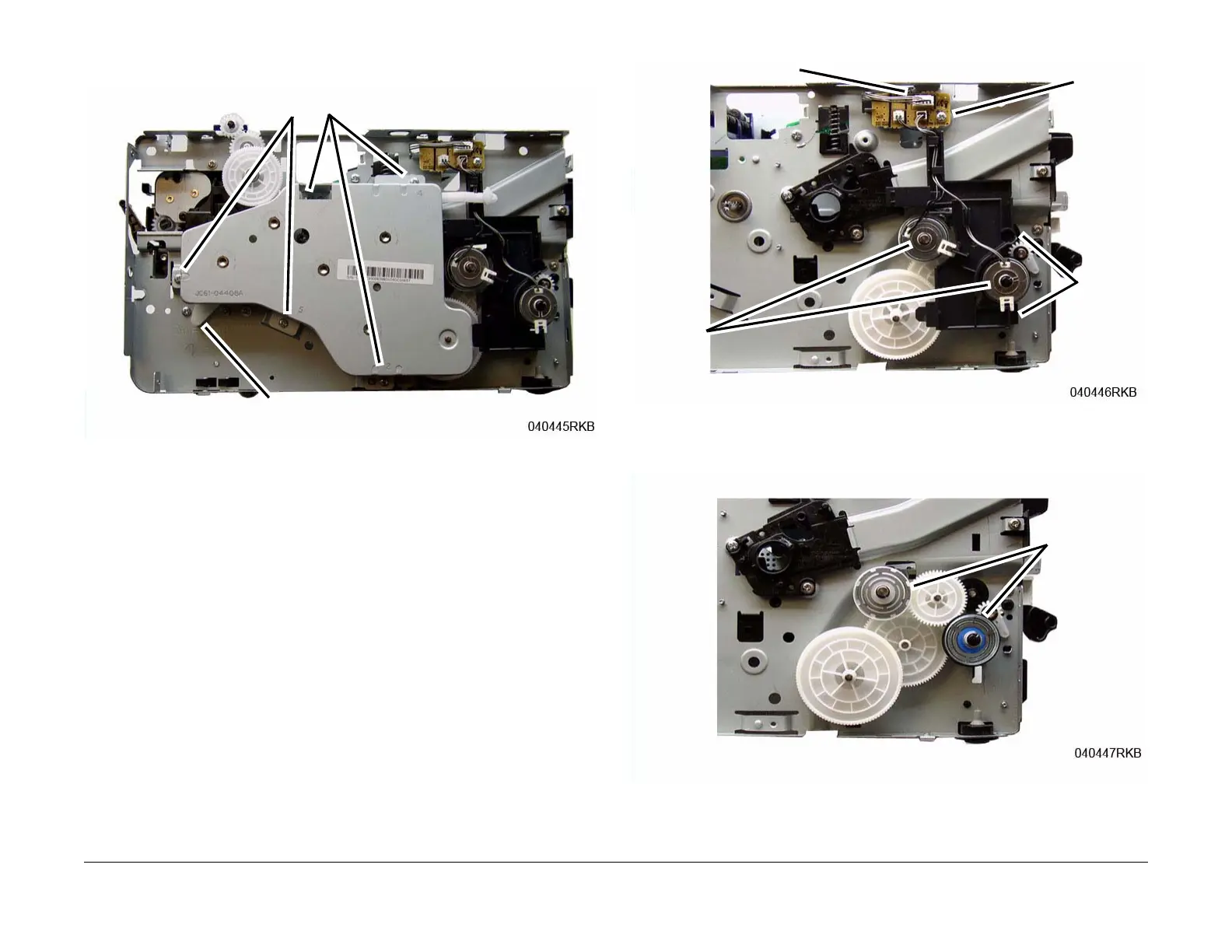

4. Remove the Main Drive Unit (5 screws) and move the Fuser Drive Locking Lever to the
Unlock position (Right) (Figure 2).
Figure 2 Main Drive Unit
5. Perform the Following (Figure 3):
a. Disconnect CN3 from the Joint PWB, and remove the screw (1).
b. Remove the Feed and Registration Clutches, remove the Snap Rings and Washer
from the Clutches.
c. Remove the Feed and Registration Clutch Assembly and the PWB, release the
latches (2).
Figure 3 Feed and Registration Clutch / Feeder PWB
6. Remove the Feed and Registration Clutch Drive Gears (Figure 4).
Figure 4 Feed and Registration Clutch Drive Gears
Screws
Locking Lever
Screw
CN3
Snap Rings
& Washers
Latches
Clutch Drive
Gears

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
