4-10
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.5
Repairs

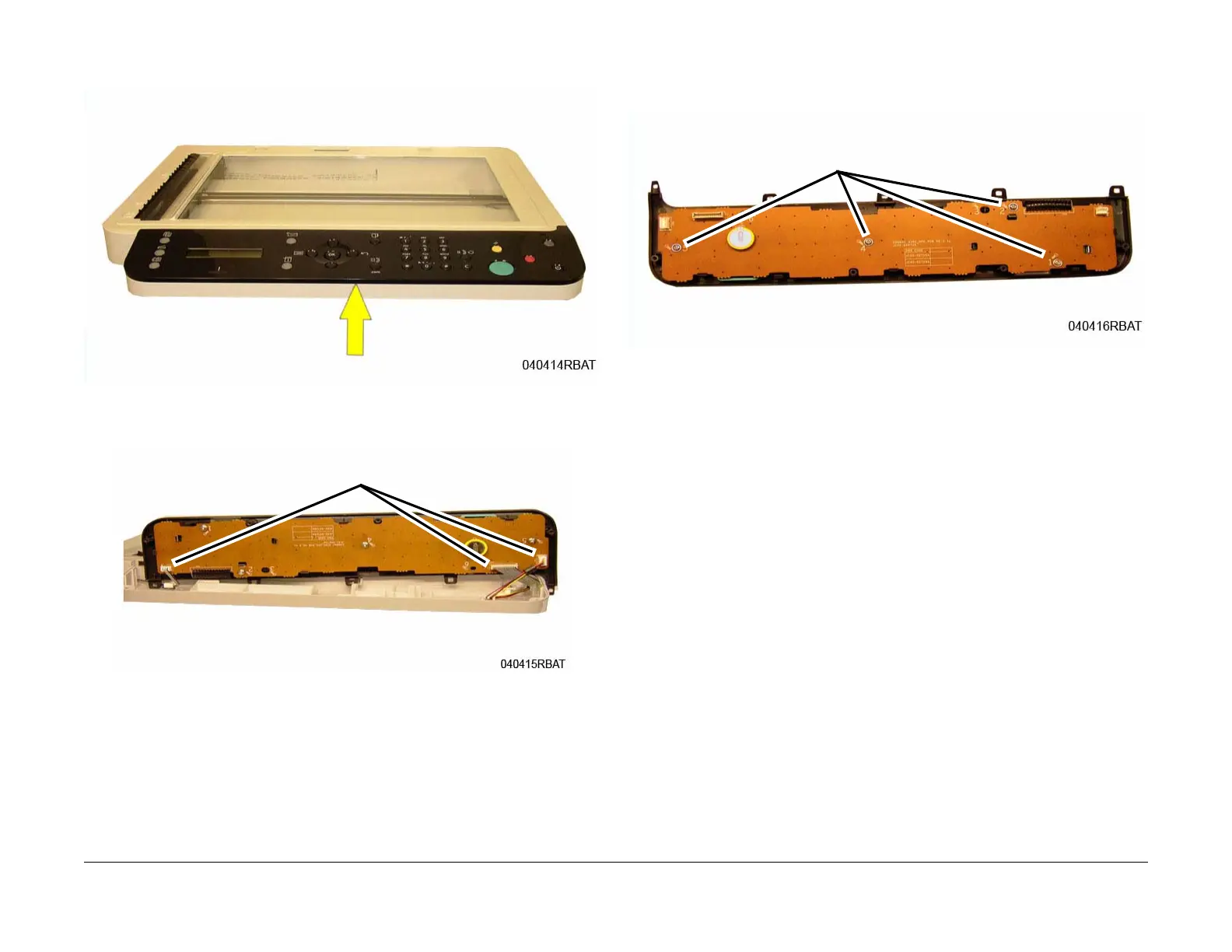

6. Remove the Control Panel Assembly by lifting up the front of the Panel and pulling it for-
ward (Figure 2).
Figure 2 Control Panel Removal
7. Disconnect the Control Panel PWB connectors (3) (Figure 3).
Figure 3 Control Panel Connectors
8. Remove the Control Panel PWB. (Figure 4):
a. Remove the screws (4).
b. Release the latches and remove the PWB.
Figure 4 Control Panel Screws (Bottom View)
Replacement
Install the components in the reverse of removal.
Connectors
Screws

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
