4-25
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.14
Repairs
6. Release the Latch and remove the Feed Sensor PWB (Figure 3).

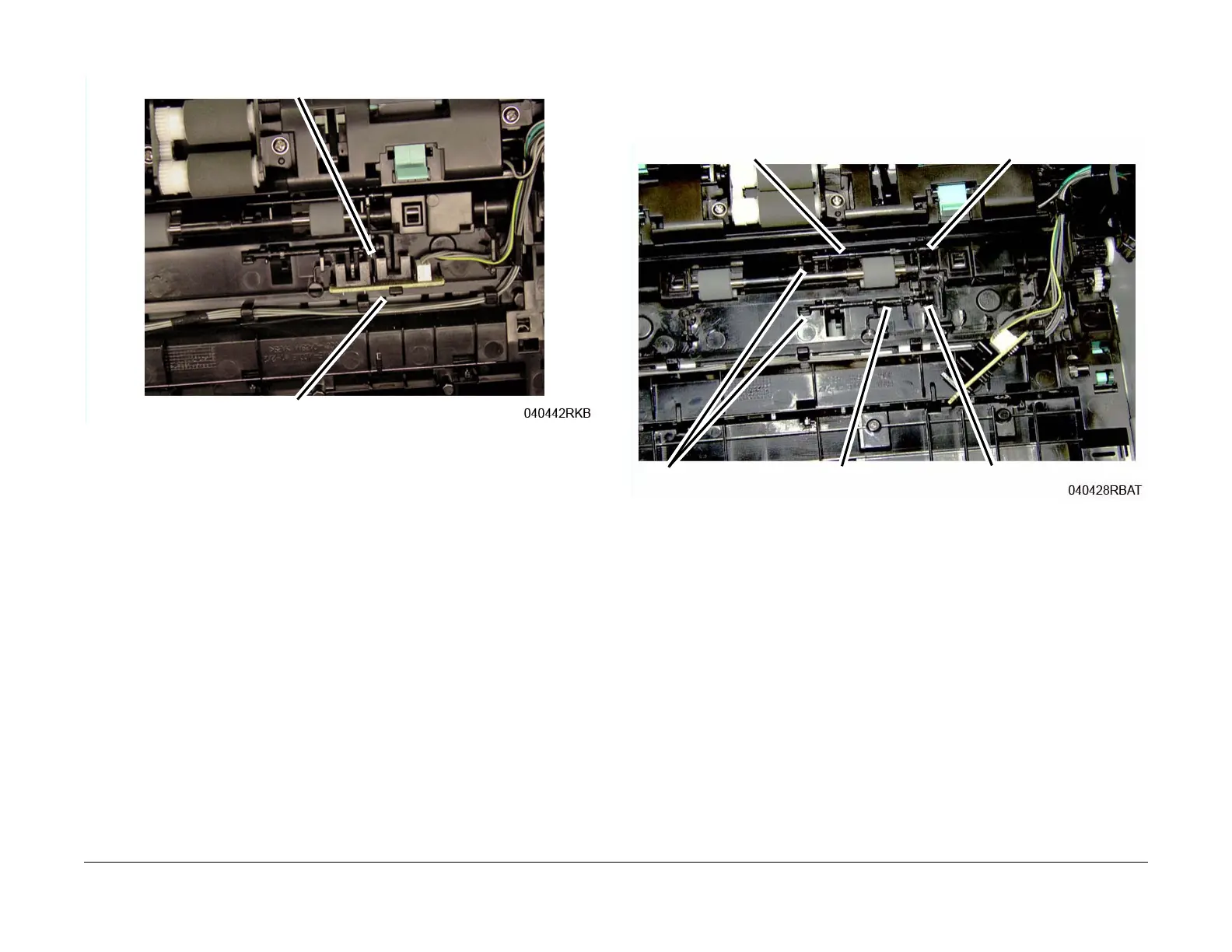

Figure 3 Feed Sensor PWB (Bottom View)
7. Removing the Feed and Registration Sensor Actuators (Figure 4):
Note the location of the Spring in the frame cutout for reinstallation (Figure 5).
a. Release the Actuator from the latch.
b. Remove the Actuator.
Figure 4 Feed and Registration Sensors Actuators (Bottom View)
Sensors PWB
Latch
Feed Sensor Actuator
Latch
Spring
Reg Sensor Actuator
Spring

Xerox WorkCentre 3215 Specifications

General

Print Technology	Laser
Print Speed	Up to 27 ppm
Scan Resolution	Up to 600 x 600 dpi
Copy Speed	Up to 27 cpm
Copy Resolution	Up to 600 x 600 dpi
Paper Capacity	250 sheets
ADF Capacity	40 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
First Page Out Time	As fast as 8.5 seconds
Processor	600 MHz
Duplex Printing	Manual
Fax Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, A6, B5, Letter, Legal, Executive
Maximum Paper Size	Legal
Operating System Compatibility	Windows, Mac, Linux
