137
Enter the Fax Repository Details via Internet Services
5. At your workstation, open your Web browser and enter the IP address of the machine in the Address
or Location field. Press Enter.
6. Click the Properties tab, then click the Protocol Settings folder (hot link).
7. Scroll down the list of protocols to the Fax folder.
8. Click on the Fax folder.

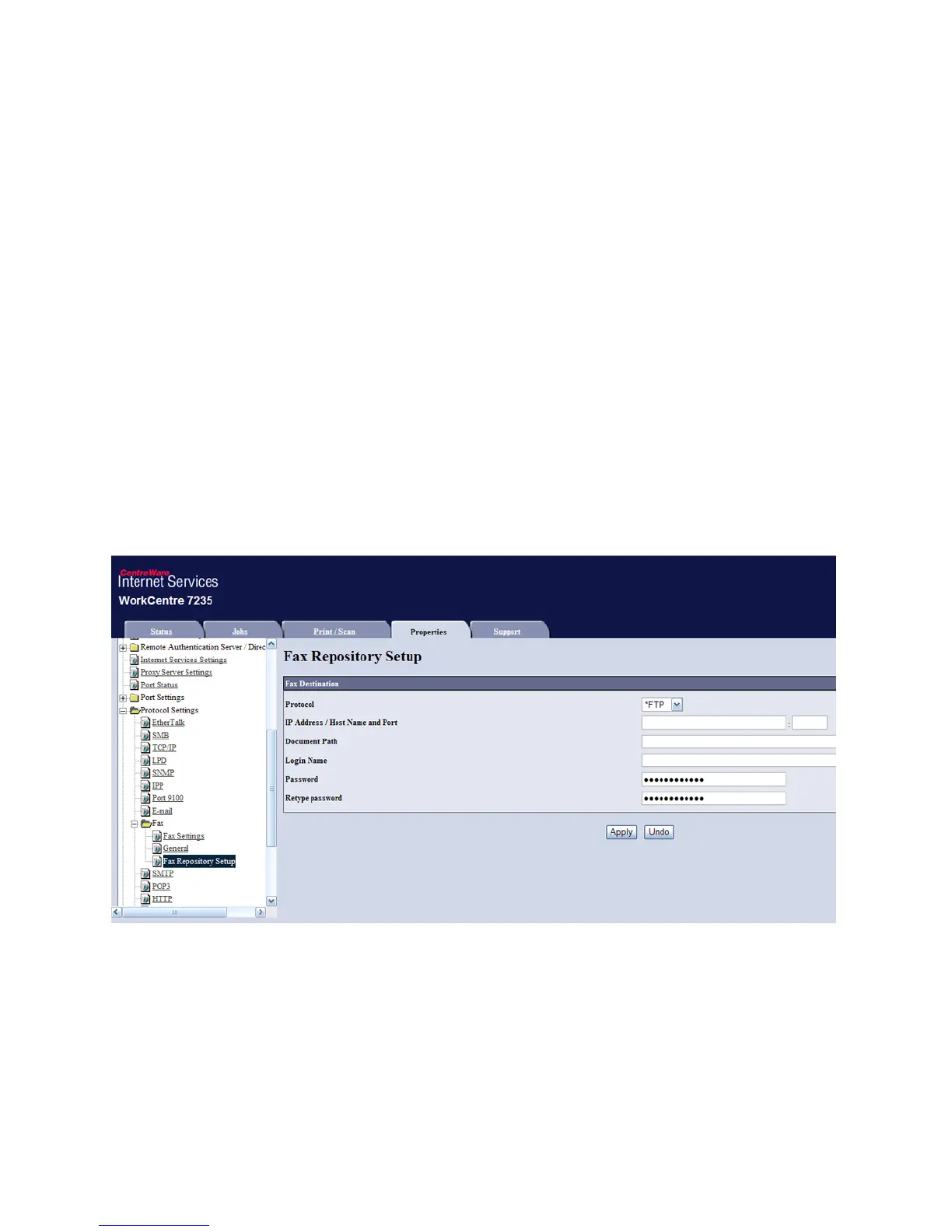

9. Click the Fax Repository Setup link.
10. Select FTP for Protocol.
11. Enter either an IP Address or Host Name for the fax server in the box or boxes provided.
12. Enter 21 for Port Number (for FTP).
13. For Document Path, type in the name of the folder on the server that has been set up to receive
device scans. Do not use forward slashes.
14. Supply the Login Name and Password for the machine to log into the fax server.
15. Re-enter the password in the Retype Password box.
16. Click Apply.
17. Enter the administrator User Name and Password and click OK. The default is 11111 and x-admin.
