143

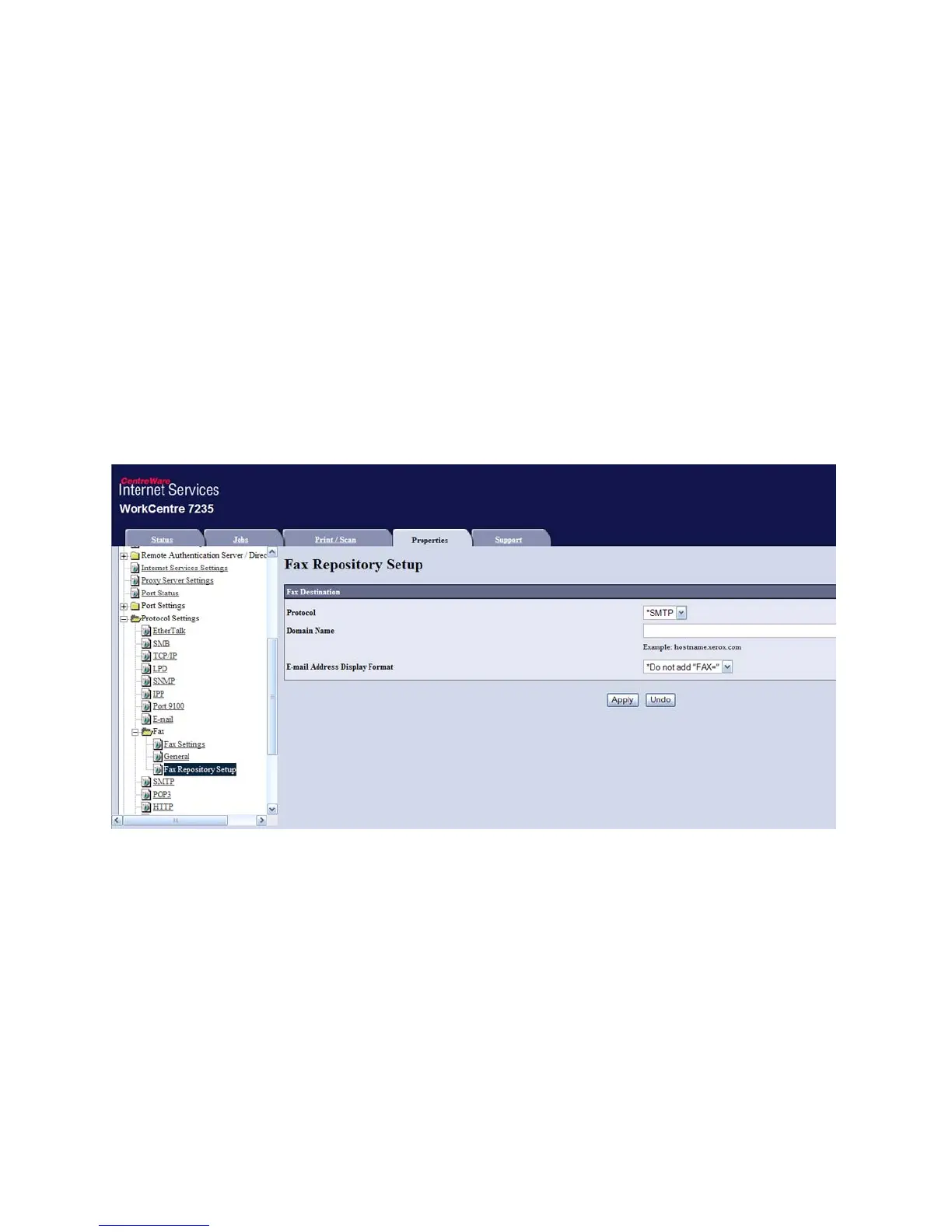

Enter the Fax Repository Details via Internet Services
1. At your workstation, open your Web browser and enter the IP address of the machine in the Address
or Location field. Press Enter.
2. Click the Properties tab, then click the Protocol Settings folder (hot link).
3. Scroll down the list of protocols to the Fax folder.
4. Click on the Fax folder.
5. Click on Fax Repository Setup and select SMTP for Protocol.
6. In the Domain Name box, enter the fully qualified domain name of the fax server on your network
(e.g. SMTP.yournet.net).
7. For E-mail Address Display Format, choose whether to add "FAX=" in front of E-mail addressing. If in
doubt, select Do not add "FAX=".
8. Click Apply.
9. Enter the administrator User Name and Password and click OK. The default is 11111 and x-admin.
To Next Page
