USB 3.0 port
2
iBMC direct connect
management port
3
VGA port
-
-
⚫
24 x 2.5" drive configuration

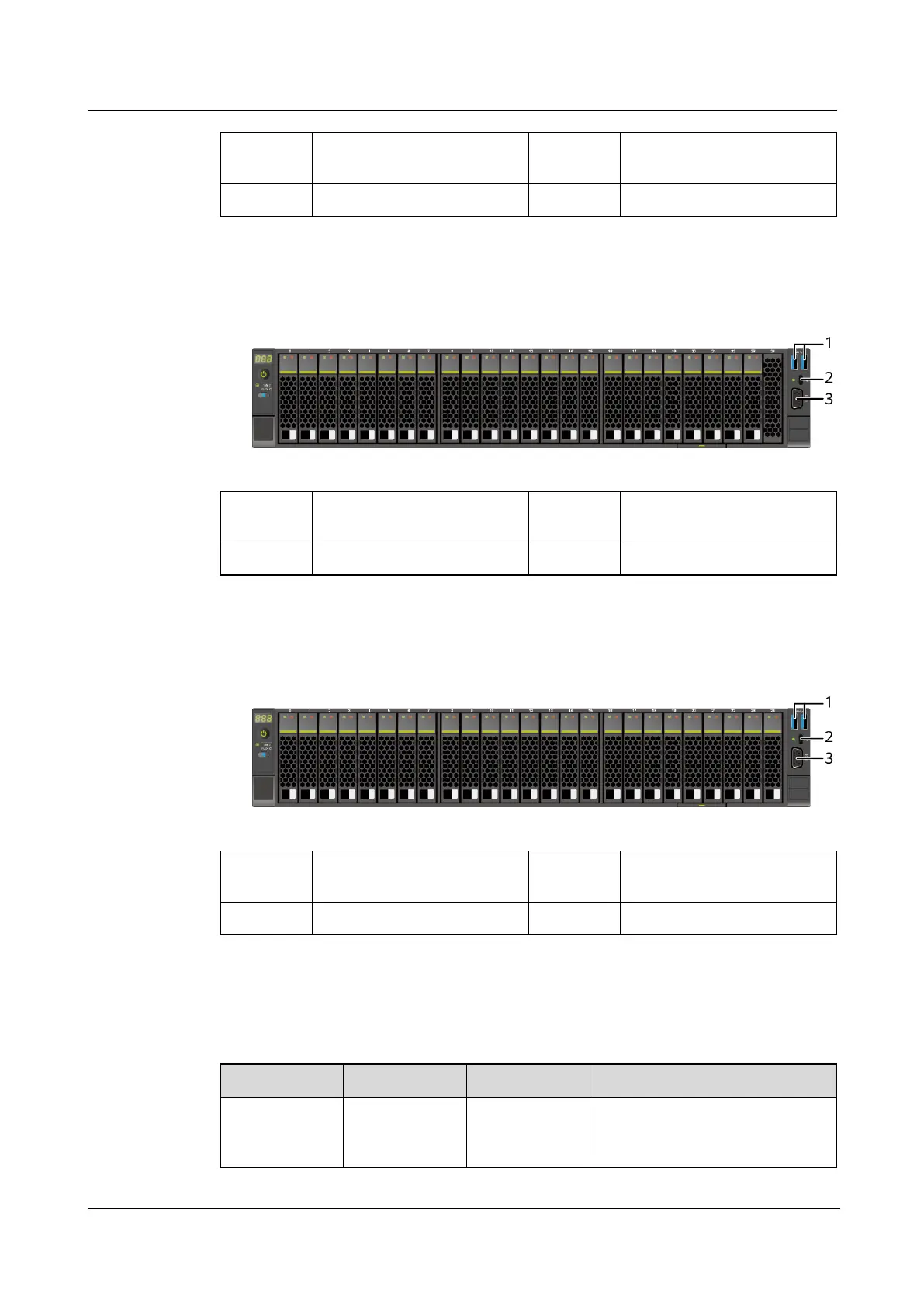

Figure 5-17 Ports on the front panel
1
USB 3.0 port
2
iBMC direct connect
management port
3
VGA port
-
-
⚫
25 x 2.5" drive configuration
Figure 5-18 Ports on the front panel
1
USB 3.0 port
2
iBMC direct connect
management port
3
VGA port
-
-
Port Description
Table 5-2 Ports on the front panel
Port
Type
Quantity
Description
VGA port
Note
DB15
1
Used to connect a display
terminal, such as a monitor or
KVM.
