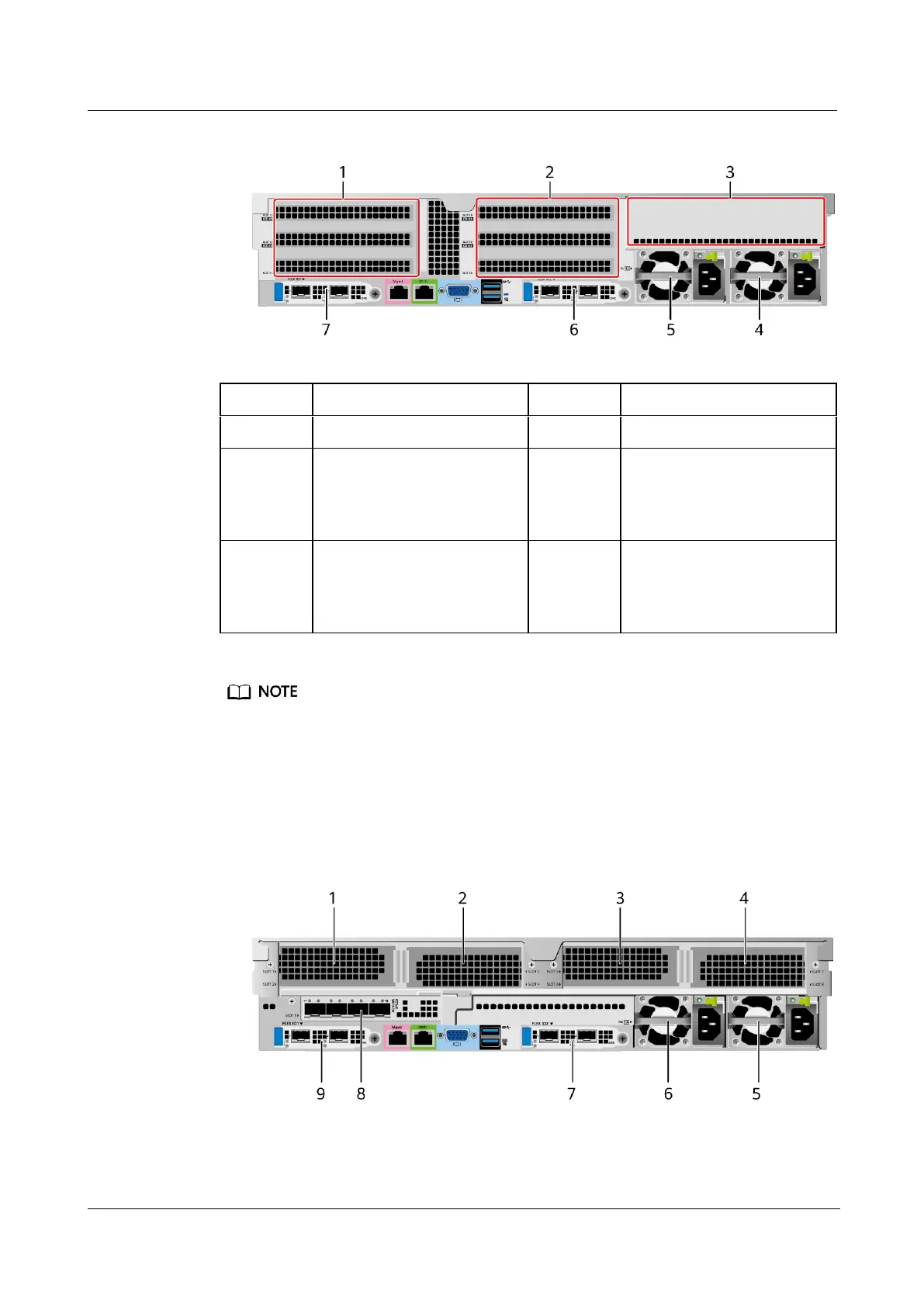

Figure 5-19 Rear view
1
I/O module 1
2
I/O module 2
3
I/O module 3
4
Power supply 2
5
PSU 1
6
(Optional) FlexIO card 2
NOTE
The FlexIO card slot supports
only OCP 3.0 network adapters.
7
(Optional) FlexIO card 1
NOTE
The FlexIO card slot supports
only OCP 3.0 network adapters.
-
-
⚫
I/O module 1 and I/O module 2 each support a PCIe riser module, 2 x 3.5" rear-drive module, or
module with 2 x 2.5" rear drives and one PCIe riser module.
⚫
I/O module 3 supports a PCIe riser module or 4 x 2.5" rear-drive module.
⚫
For details about the OCP 3.0 network adapter, see 5.1.6.1 OCP 3.0 Network Adapters .
⚫
The figure is for reference only. The actual configuration may vary.
⚫
Server with four GPUs on the rear panel
Figure 5-20 Rear view
