KC705 Evaluation Board 56
UG810 (v1.8) March 20, 2018 www.xilinx.com
Chapter 1: KC705 Evaluation Board Features
User Pushbuttons
[Figure 1-2, callout 23]

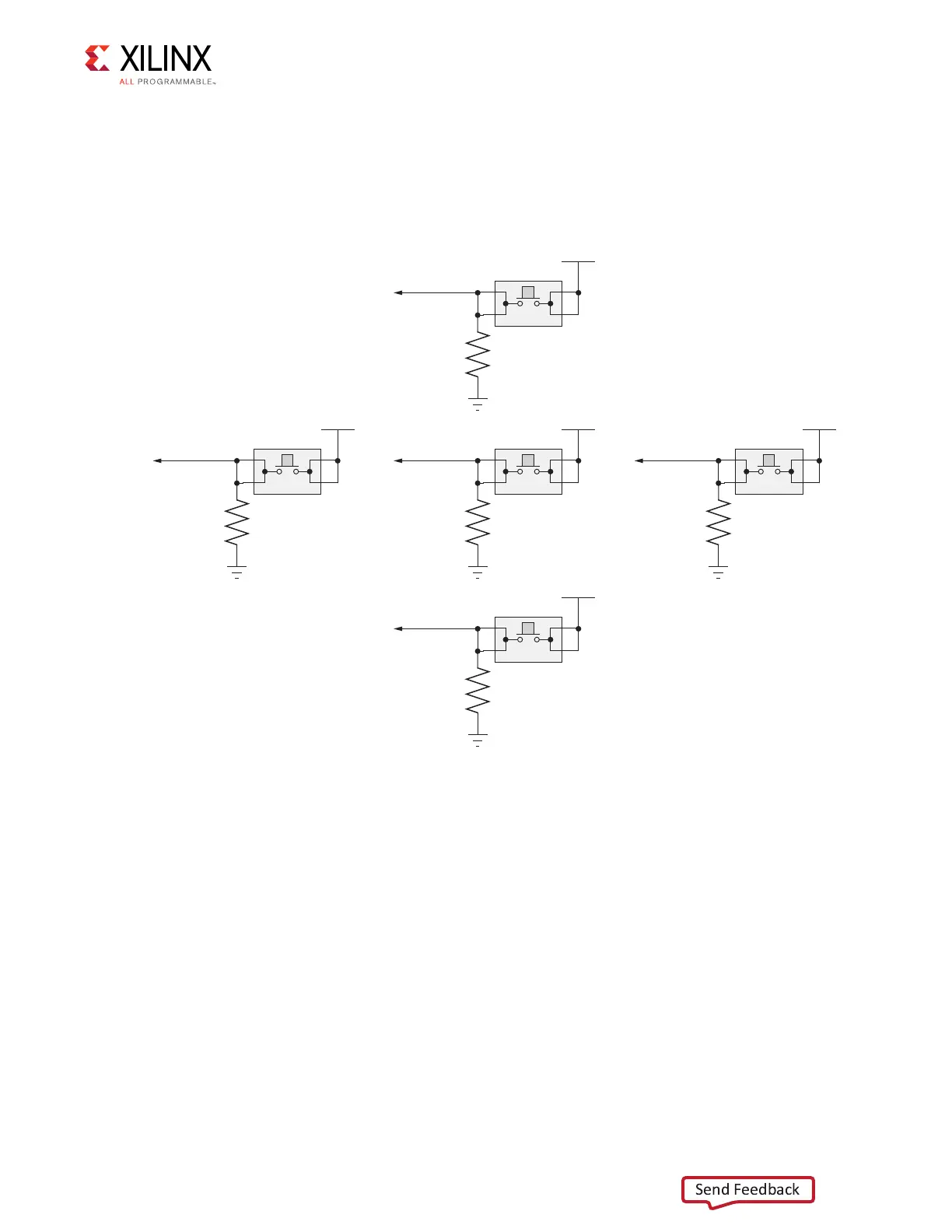

Figure 1-26 shows the user pushbutton switch circuits.
X-Ref Target - Fig ure 1-26
Figure 1-26: User Pushbuttons
UG810_c1_26_031214
VADJ
GPIO SW C
R13
4.7kΩ
0.1 W
5%
GND
4
32
1
SW5
VCC1V5
GPIO SW N
R13
4.7kΩ
0.1 W
5%
GND
4
32
1
SW2
VCC1V5
GPIO SW S
R12
4.7kΩ
0.1 W
5%
GND
4
32
1
SW4
VCC1V5
GPIO SW W
R14
4.7kΩ
0.1 W
5%
GND
4
32
1
SW6
VCC1V5
GPIO SW E
R11
4.7kΩ
0.1 W
5%
GND
4
32
1
SW3
