MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide 31
UG257 (v1.1) December 5, 2007 www.xilinx.com
Programming the FPGA, CPLD, or Platform Flash PROM via USB
R
Click Configuration Options as shown in Figure 4-11. Using the Configuration
Rate drop list, choose 25 to increase the internal CCLK oscillator to approximately
25 MHz, the fastest frequency when using an XCF04S Platform Flash PROM. Click OK
when finished.

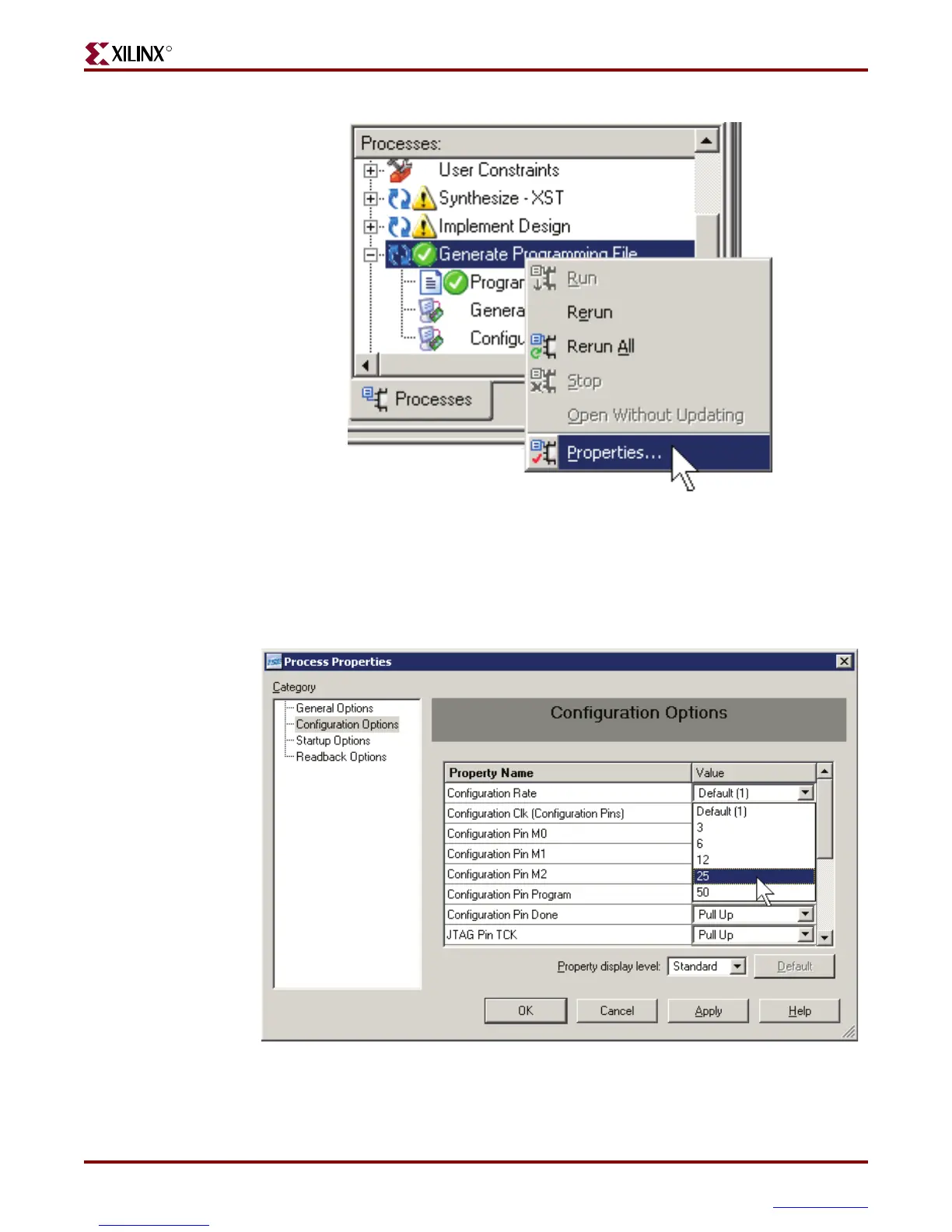

Figure 4-10: Set Properties for Bitstream Generator
Figure 4-11: Set CCLK Configuration Rate under Configuration Options
UG257_04_10_061206
UG257_04_11_061206
