32 MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
www.xilinx.com UG257 (v1.1) December 5, 2007
Chapter 4: FPGA Configuration Options
R
To regenerate the programming file, double-click Generate Programming File, as
shown in Figure 4-12.
Generating the PROM File
After generating the program file, double-click Generate PROM, ACE, or JTAG File
to launch the iMPACT software, as shown in Figure 4-13.
After iMPACT starts, double-click PROM File Formatter, as shown in Figure 4-14.

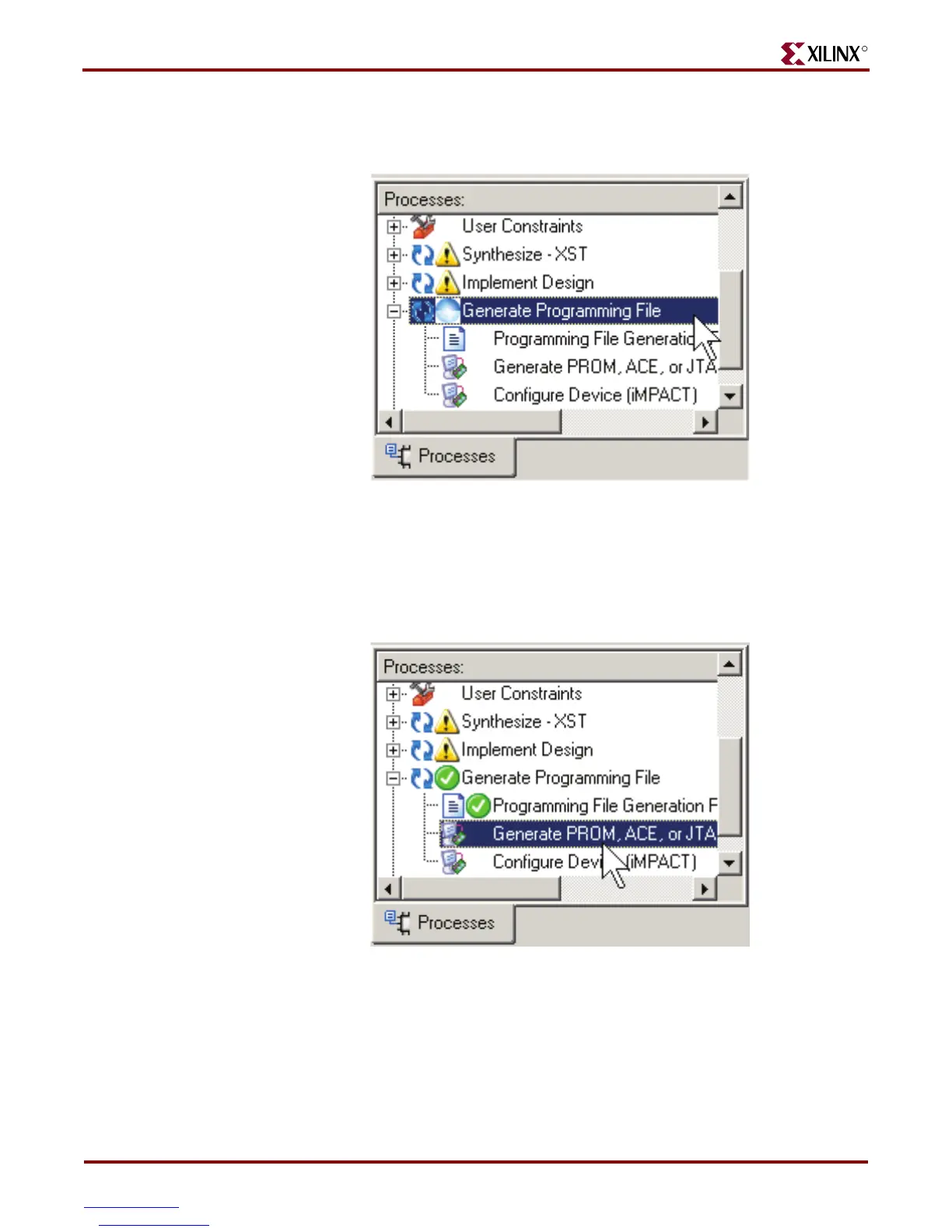

Figure 4-12: Double-Click Generate Programming File
UG257_04_12_022706
Figure 4-13: Double-Click Generate PROM, ACE, or JTAG File
UG257_04_13_061206
