36 MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide
www.xilinx.com UG257 (v1.1) December 5, 2007
Chapter 4: FPGA Configuration Options
R

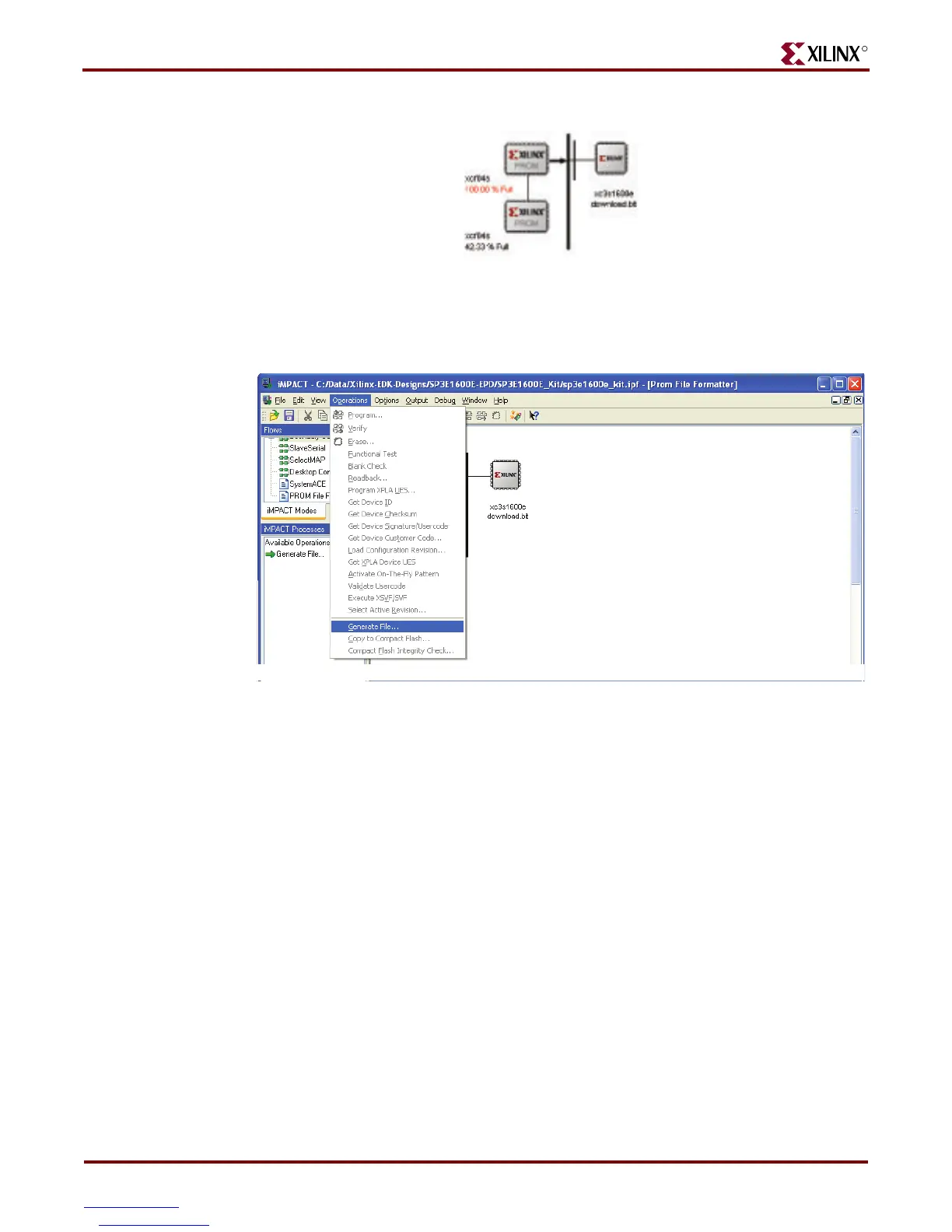

To generate the actual PROM file, click Operations Æ Generate File as shown in
Figure 4-20.
The iMPACT software indicates that the PROM file was successfully created, as shown in
Figure 4-21.
Figure 4-19: PROM Formatting Completed
Figure 4-20: Click Operations Æ Generate File to Create the Formatted PROM File
UG257_4-19_061206
UG257_4-20_061206
