Xilinx MIcroBlaze Development Spartan-3E 1600E Kit User Manual

MicroBlaze Development Kit Spartan-3E 1600 Edition User Guide 37
UG257 (v1.1) December 5, 2007 www.xilinx.com
Programming the FPGA, CPLD, or Platform Flash PROM via USB
R
Programming the Platform Flash PROM
To program the formatted PROM file into the Platform Flash PROM via the on-board USB-
JTAG circuitry, follow the steps outlined in this subsection.
Place the iMPACT software in the JTAG Boundary Scan mode, either by choosing
Boundary Scan in the iMPACT Modes pane, as shown in Figure 4-22, or by clicking on
the Boundary Scan tab.

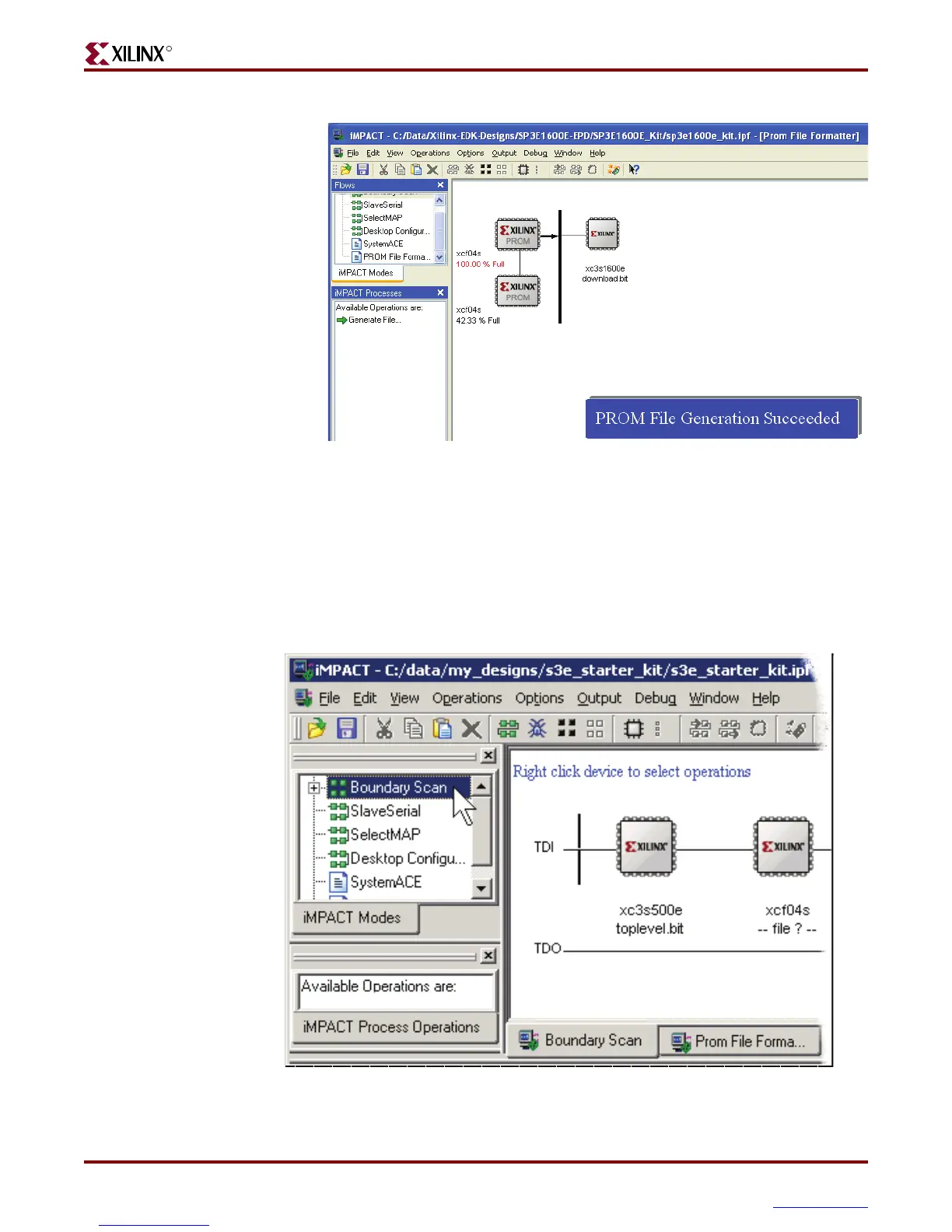

Figure 4-21: PROM File Formatter Succeeded
UG257 4 21 061206
Figure 4-22: Switch to Boundary Scan Mode
UG257_04_22_061206
