Chapter 12: SPI Serial Flash
R
The PROM Formatter then echoes the settings, as shown in Figure 12-10. Click Finish.
The PROM Formatter then prompts for the name(s) of the FPGA configuration bitstream
file. As shown in Figure 12-11, click OK to start selecting files. Select an FPGA bitstream file
(*.bit). Choose No after selecting the last FPGA file. Finally, click OK to continue.
When PROM formatting is complete, the iMPACT software presents the present settings
by showing the PROM, the select FPGA bitstream(s), and the amount of PROM space
consumed by the bitstream. Figure 12-12 shows an example for a single XC1600E FPGA
bitstream stored in an XCF04S Platform Flash PROM.

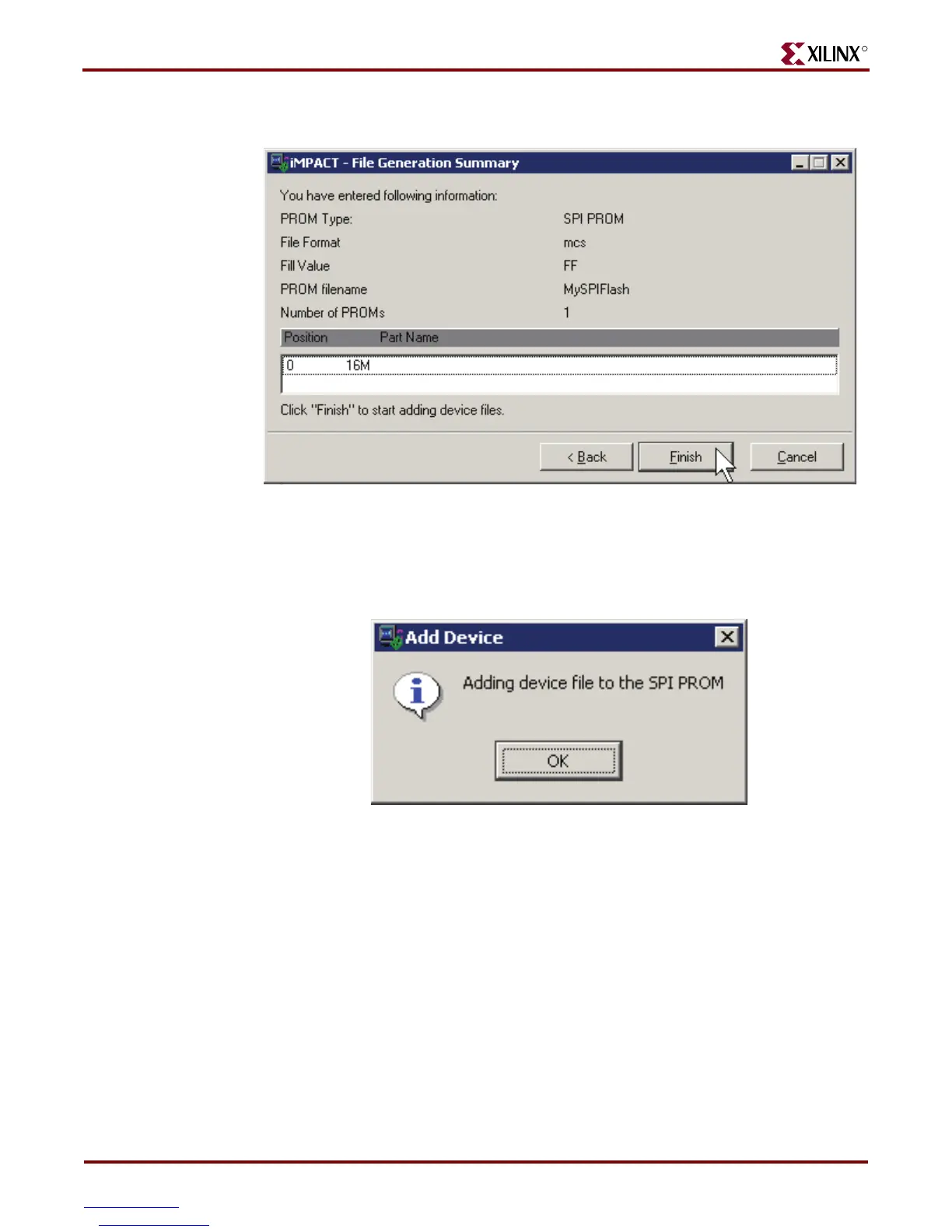

Figure 12-10: Click Finish after Entering PROM Formatter Settings
Figure 12-11: Enter FPGA Configuration Bitstream File(s)
UG257_12_10_060806
UG257_12_11_060806
