Chapter 1: RocketIO Transceiver Overview
R
Table 1-3: Serial Baud Rates and the SERDES_10B Attribute
SERDES_10B Serial Baud Rate
FALSE 1.0 Gb/s – 3.125 Gb/s
TRUE 600 Mb/s – 1.0 Gb/s

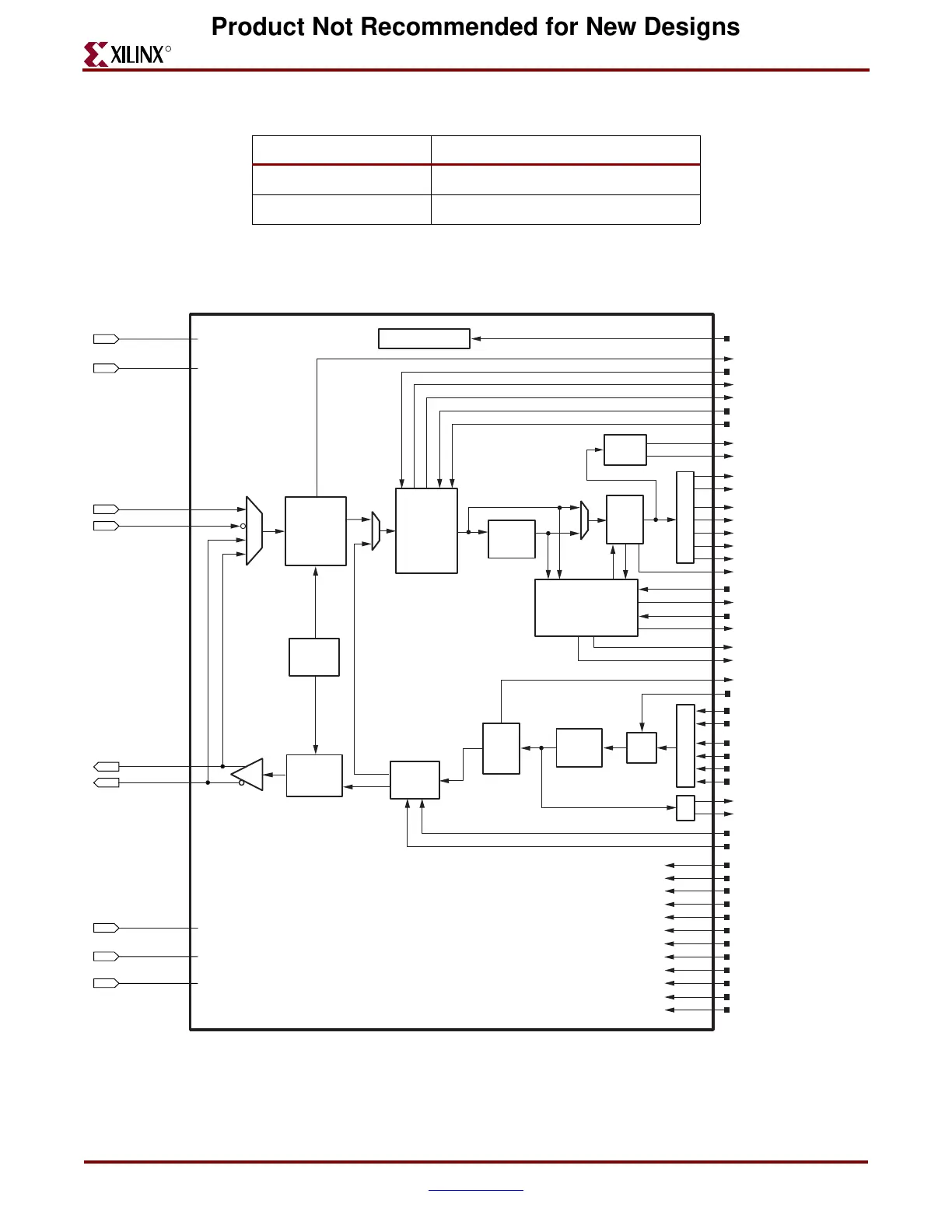

Figure 1-1: RocketIO Transceiver Block Diagram
FPGA FABRIC MULTI-GIGABIT TRANSCEIVER CORE
Serializer
RXP
TXP
Clock
Manager
Power Down
PACKAGE
PINS
Deserializer
Comma
Detect
Realign
8B/10B
Decoder
TX
FIFO
CRC
Check
CRC
Channel Bonding
and
Clock Correction
CHBONDI[3:0]
CHBONDO[3:0]
8B/10B
Encoder
RX
Elastic
Buffer
Output
Polarity
RXN
GNDA
TXN
DS083-2_04_090402
POWERDOWN
RXRECCLK
RXPOLARITY
RXREALIGN
RXCOMMADET
RXRESET
RXCLKCORCNT
RXLOSSOFSYNC
RXDATA[15:0]
RXDATA[31:16]
RXCHECKINGCRC
RXCRCERR
RXNOTINTABLE[3:0]
RXDISPERR[3:0]
RXCHARISK[3:0]
RXCHARISCOMMA[3:0]
RXRUNDISP[3:0]
RXBUFSTATUS[1:0]
ENCHANSYNC
RXUSRCLK
RXUSRCLK2
CHBONDDONE
TXBUFERR
TXDATA[15:0]
TXDATA[31:16]
TXBYPASS8B10B[3:0]
TXCHARISK[3:0]
TXCHARDISPMODE[3:0]
TXCHARDISPVAL[3:0]
TXKERR[3:0]
TXRUNDISP[3:0]
TXPOLARITY
TXFORCECRCERR
TXINHIBIT
LOOPBACK[1:0]
TXRESET
REFCLK
REFCLK2
REFCLKSEL
ENPCOMMAALIGN
ENMCOMMAALIGN
TXUSRCLK
TXUSRCLK2
VTRX
AVCCAUXRX
VTTX
AVCCAUXTX
2.5V RX
TX/RX GND
Termination Supply RX
2.5V TX
Termination Supply TX
Serial Loopback Path
Parallel Loopback Path
BREFCLK
BREFCLK2
