ADPRO iFT Series Hardware Installation Manual

27817_05 15

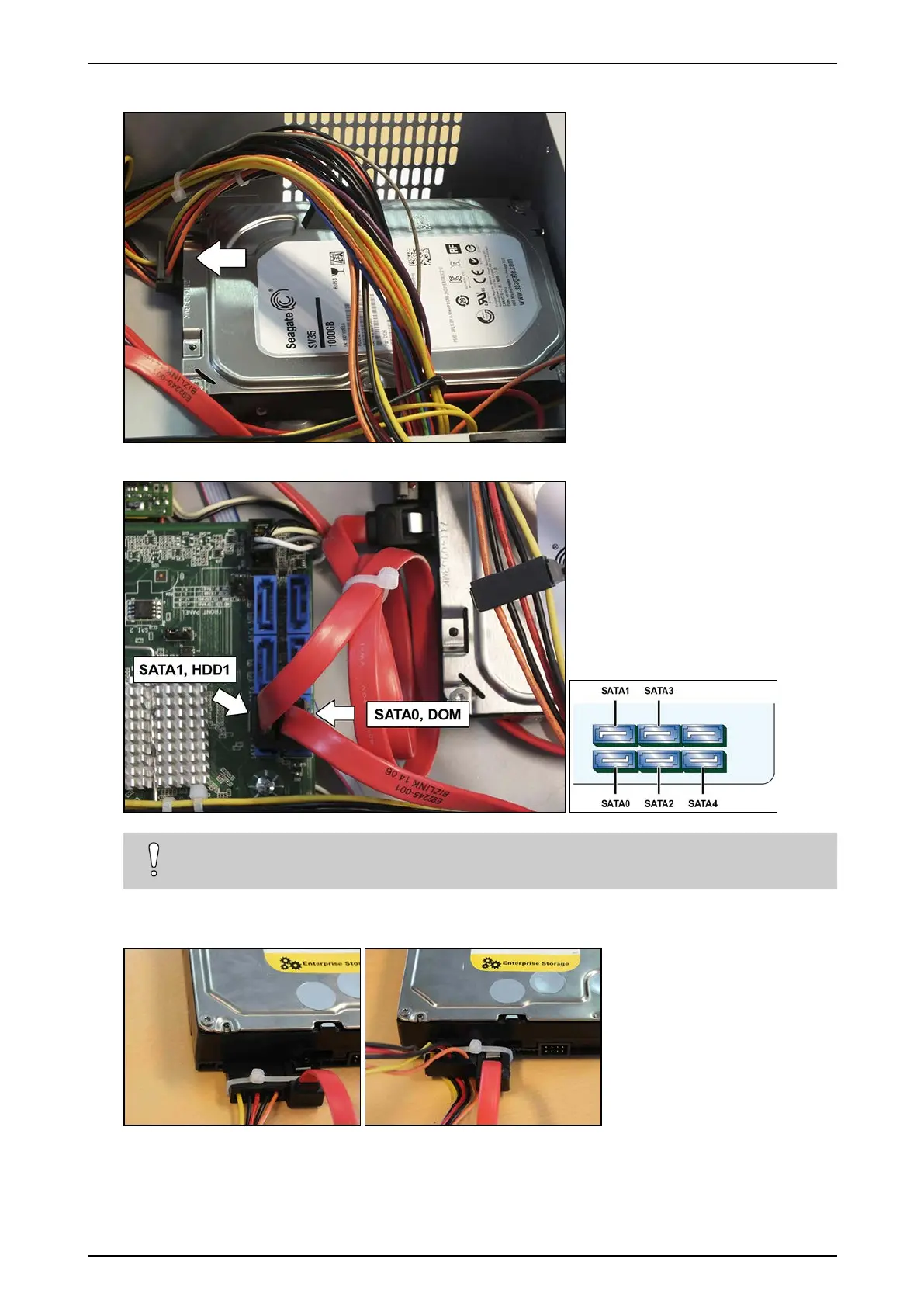

3. Connecttheharddisktothepowersupply.

4. ConnectthedisktotheSATA1connectoronthemotherboardwiththeSATAcable(#16520877).



Caution!

DonotbendtheSATAcablestoosharplytopreventcabledamage.

5. IftheSATAcablesdonothavealockingmechanism,usetie-wrapstosecurethecablesonthedisk(s)in

thefollowingway:



6. Ifthereareunusedcablesleft,bundlethemwithtie-wraps.

7. Placethetopcoverback:fixitwith2screwsatthefront,4atthetop,and3attheback.

Default Chapter5
- Table of Contents5
1 Technical Specifications7
2 About the Ift Series9
- Models9
- Licenses9
  - Overview9
  - System License10
- Software10
- Parts Information10
3 Hard Disks11
- Required Hard Disk Capacity11
- Adding/Replacing a Hard Disk11
- Reusing Used Hard Disks12
- Retrieving Hard Disk Information12
  - Using the Ta,Smart Command12
  - Using the XO Client Software13
- Installing the First Hard Disk13
- Installing a Second Hard Disk16
- Installing a Third Disk in an Ift Device19
- Installing a Third and Fourth Disk in an Ift-E Device22
- RAID 1 Support26
4 Front LED Indicators28
5 Motherboards29
- Overview29
- BIOS Settings29
- Connectors29
- Replacing the Motherboard30
- Replacing the Motherboard Battery30
6 Connecting IP Cameras31
7 Main I/O Card33
- Features33
- Overview of Inputs and Outputs33
- Input Circuits33
- Connecting Inputs and Outputs34
- Cable Strain Relief34
- Configuring the MIO Card35
8 XO I/O Interface USB Modules36
- About the XO I/O Interface USB Modules36
- Logging on to the Hardware Configuration Tool36
- Mapping the XO I/O Interface USB Module40
9 Net I/O Modules42
10 Monitor43
11 Modem44
12 Audio45
- Audio in45
- Audio out (Talkback)45
- Using the Axis IP Horn Speaker49
13 Connecting PIR Detectors50
- Required PIR Firmware50
- PIR Address Range50
- Direct Connection to the MIO Card50
- Connection Via the USB-To-RS-485 8-Channel Distribution Unit52
- Connection Via the USB-To-Serial-Port RS-485 Converter54
- Connection Via the IFM-485-ST Interface Module54
- Connection Via IP Modules (PRO E-IPM)54
14 Power Consumption60
15 Retrieving the IP Address61
16 Diagnostics62
- Log Files and Reports62
- Retrieving Log Files62
- Retrieving Reports64
17 Web66
18 Maintenance67
19 Full Reset by Flashing the DOM68
- Flashing the Image File to the DOM68
- After a Full Reset70
20 Product Labelling71
- Product Number Structure71
- Declaration of Conformity72
Appendix A - Abbreviations73
